Intellian t100W User Manual

t100W/t100Q – Marine Satellite Television System
26
WARNING: Ensure that cables have been run through watertight ttings to prevent
water entry into the vessel when installation is completed.
Mounting plate
Min. 1cm(0.4”)
Max. 3cm(1.2”)
Support Pedestal
Appr. ø25.4cm(10”)
Min 60cm(24”)
Max 150cm(60”)
Position the Radome
The radome should be positioned with the BOW marker aligned as closely as
possible to the ship’s centerline.

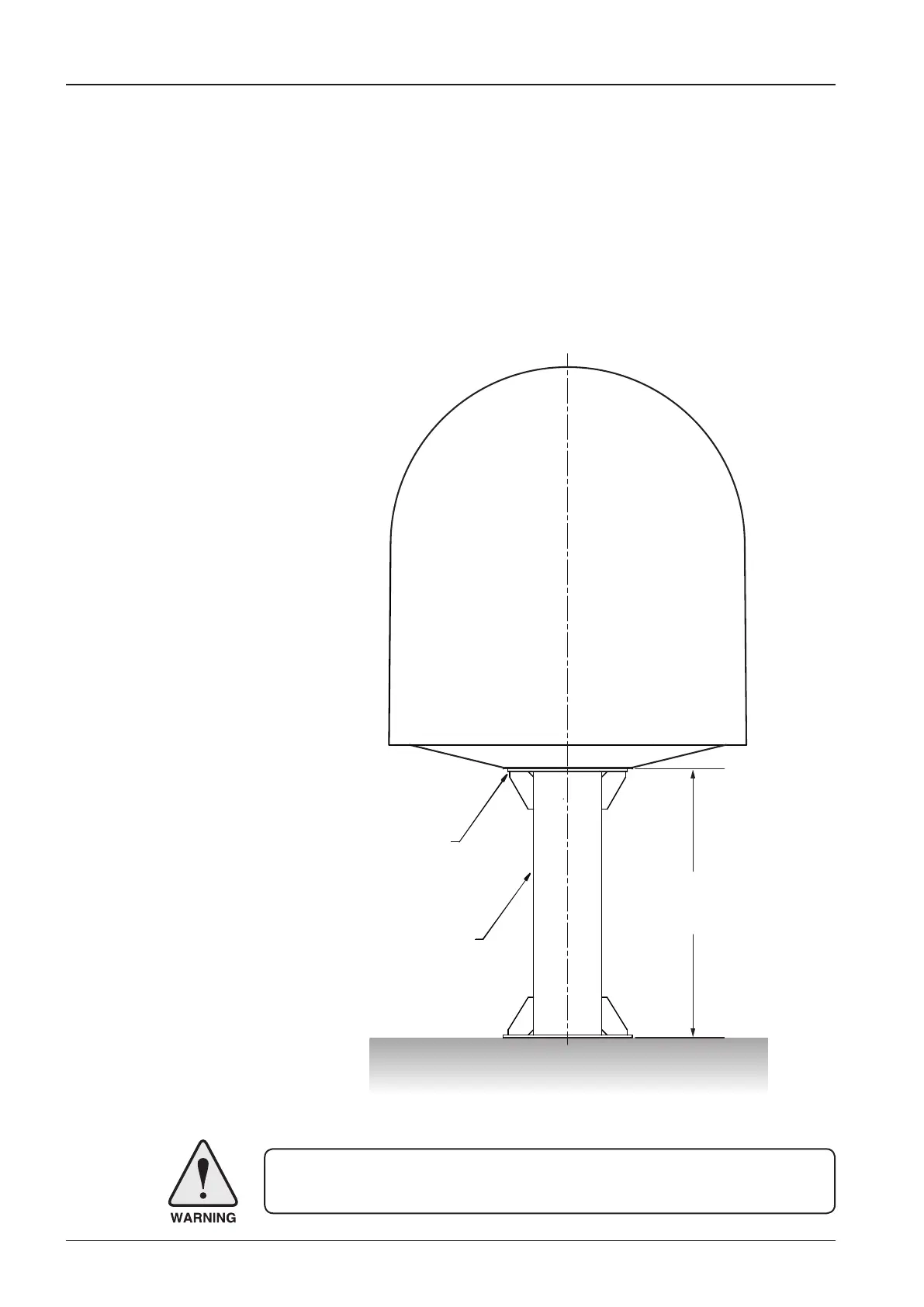

Recommended size of
the support pedestal
