t100W/t100Q – Marine Satellite Television System
92

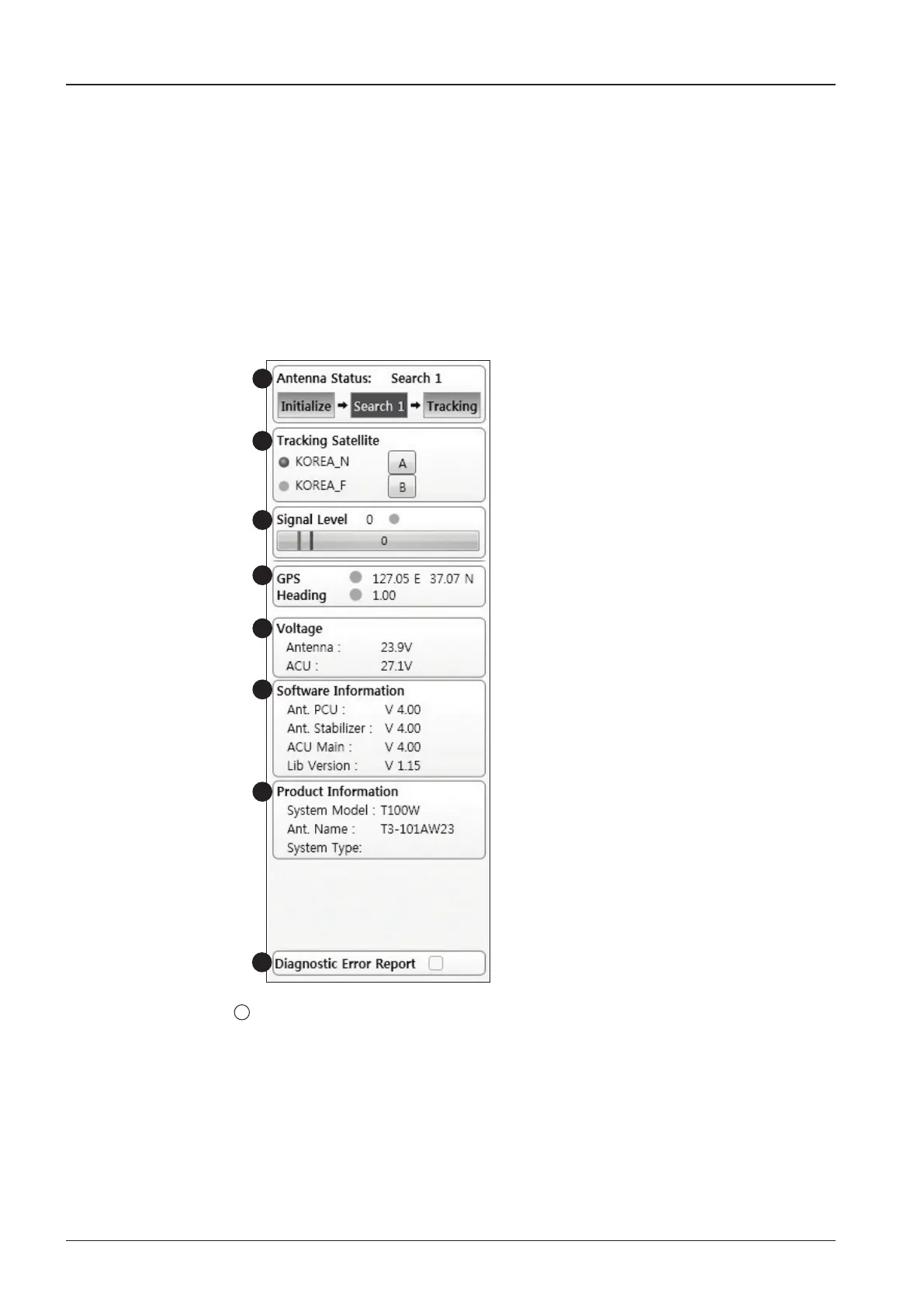

System Property Status Dashboard
The property status dashboard on the left panel of the screen provides the antenna
status, signal level, GPS and heading status, software information, product
information and error status to be monitored quickly.
Antenna Status: Displays the status of the current mode of the antenna.
- Search 1: A Search 1 pattern will automatically be initiated when the ship’s
heading input does not exist or if it fails. The search cycle will repeat until the
antenna receives the lock signal from the receiver or until the DVB transponder
of the target satellite is decoded by the antenna.
- Search 2: Search 2 is reserved for future use.
1
1
2
3
4
5
6
7
8
