t100W/t100Q – Marine Satellite Television System
24

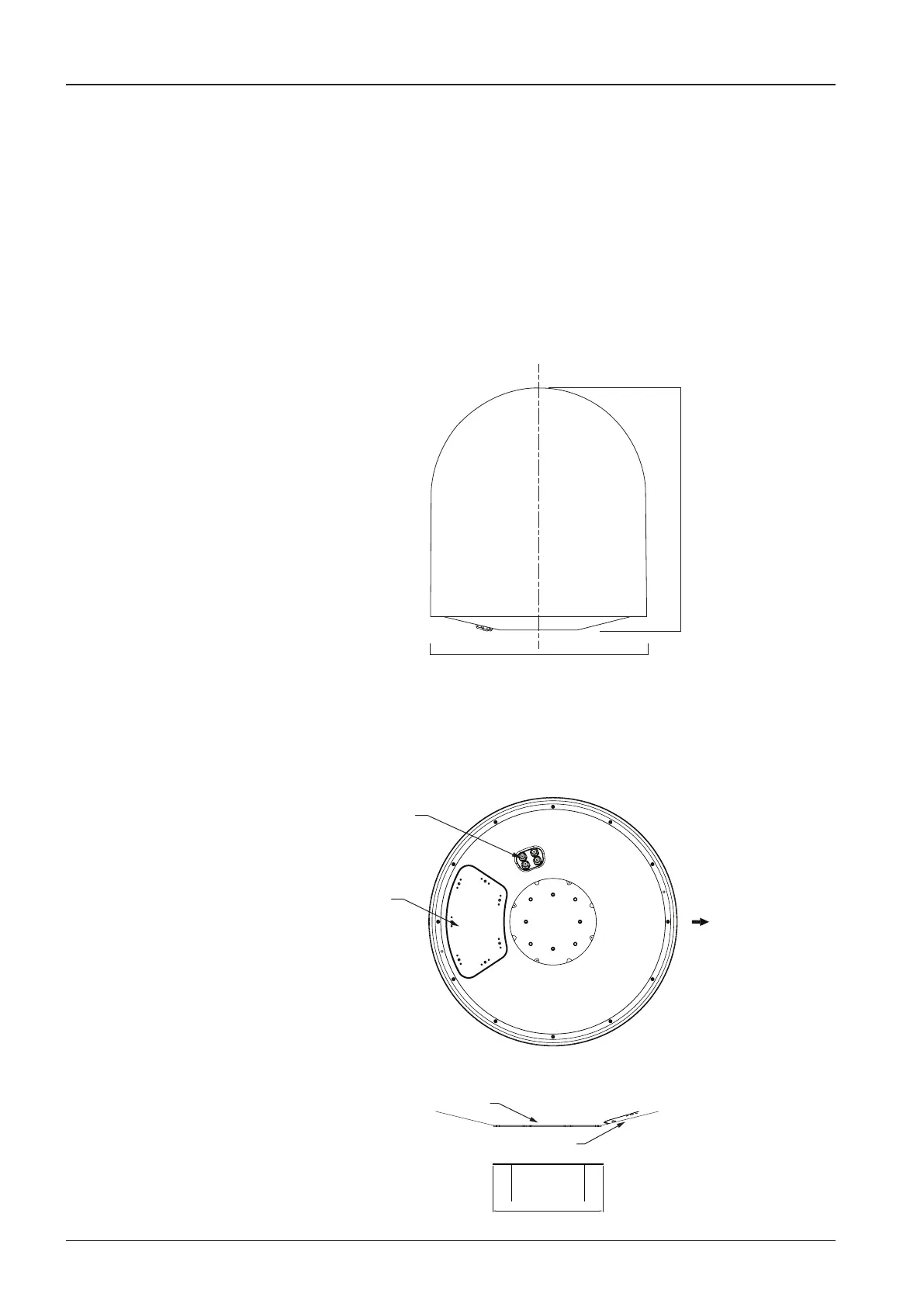

Antenna Dimensions
The method of installation and mounting of the antenna may vary with vessel de-
sign, but the following procedures are applicable in most situations, resulting in a
secure and effective installation. Conrm the height and diameter of the antenna
before installing it.
Antenna Mounting Templates
The mounting holes must be in the exact same place as shown in the diagram
below.
138 cm (54.33”)
151.48 cm (59.64”)
Radome
Dimensions
Cable Entry
Hatch
Radome Bottom
Radome Hatch
ø44.5cm (17.5”)
BOW
To Next Page
