27
INST
ALLING THE ANTENNA

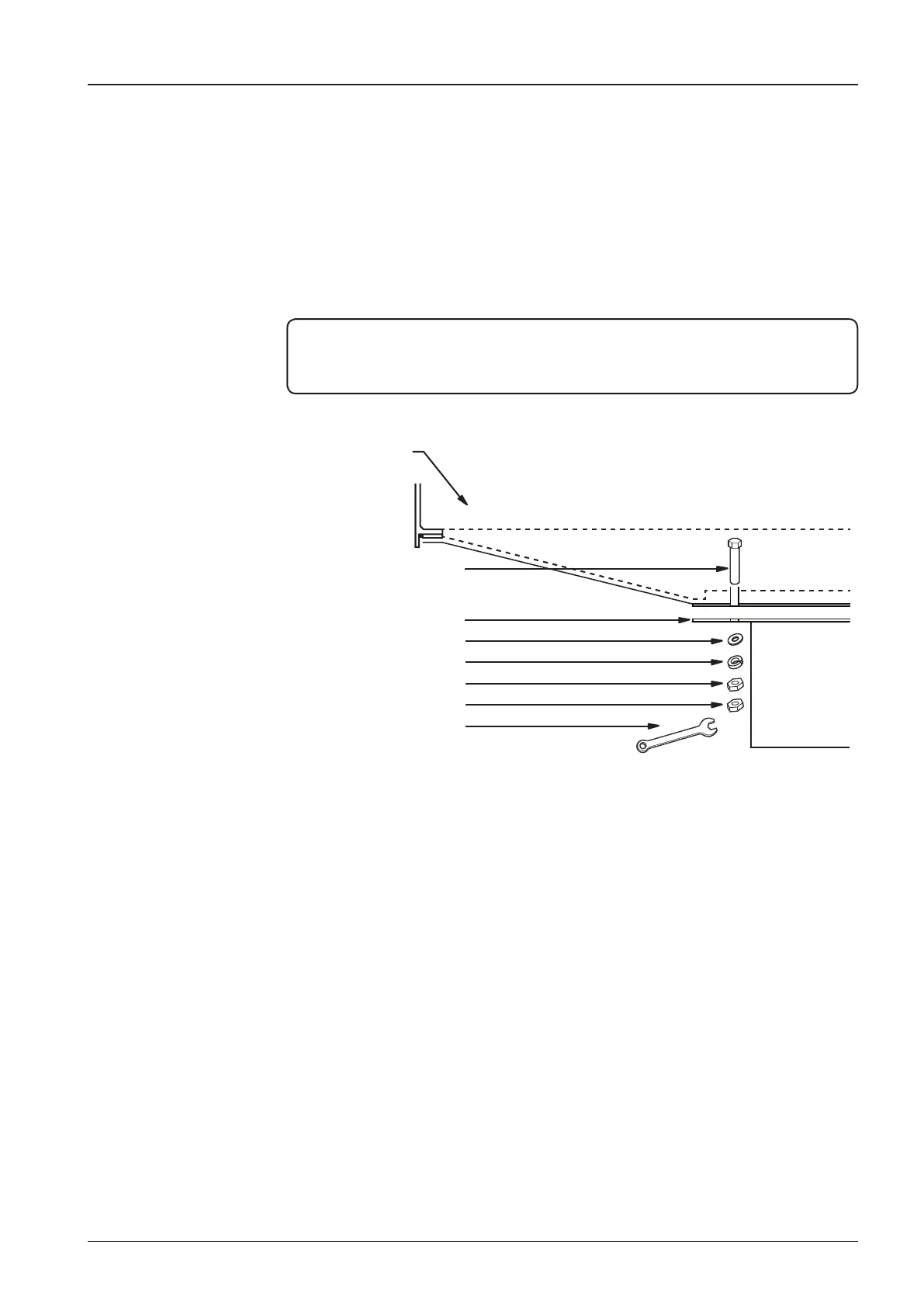

Mounting the Radome
Bolt the radome base directly to the support pedestal.
Deck
M12 Flat W
asher
M12 Spring W
asher
M12 Hex Nut
M12 Hex Nut
19mm Wr
ench
M12 Hex Bolt
Antenna Unit
Note:
Make sure to use the Intellian supplied bolts fr
om the accessory box when you
mount the radome. Apply Loctite #262 or equivalent to the bolt thread and fasten it to
a torque setting of 110 N·m.
26
28
Table of Contents
Installing the Antenna
13
System Package
14
Installation Kit
16
Planning the Installation
19
Power Requirements
20
Pin Signal
21
Tools Required for Installation
22
Antenna Installation
23
Antenna Dimensions
24
Mounting Plate
26
Installing the Acu
33
Mounting the ACU
34
ACU Dimensions
35
Connecting the System's Cables
36
Recommended Cable
39
PC to ACU Communication Setup
41
Serial/Usb Connection
42
Operating the Acu
47
Normal Mode
50
Setup Mode
54
Installation Settings
57
Antenna Settings
60
Setting Antenna Parameters
65
Satellite Settings
71
System Settings
78
System Management
80
Introduction to Aptus
84
Software Installation
85
Auto Update
88
Toolbar Menus
89
System Property Status Dashboard
92
Work View Tabs
94
Transponder Information
99
Aptus Web
109
Ship Setting
115
Tracking Setting
119
Firmware & Configuration
121
Network Setting
127
User Management
131
Firmware Upload in Progress
133
Technical Specification
137
Warranty
138
