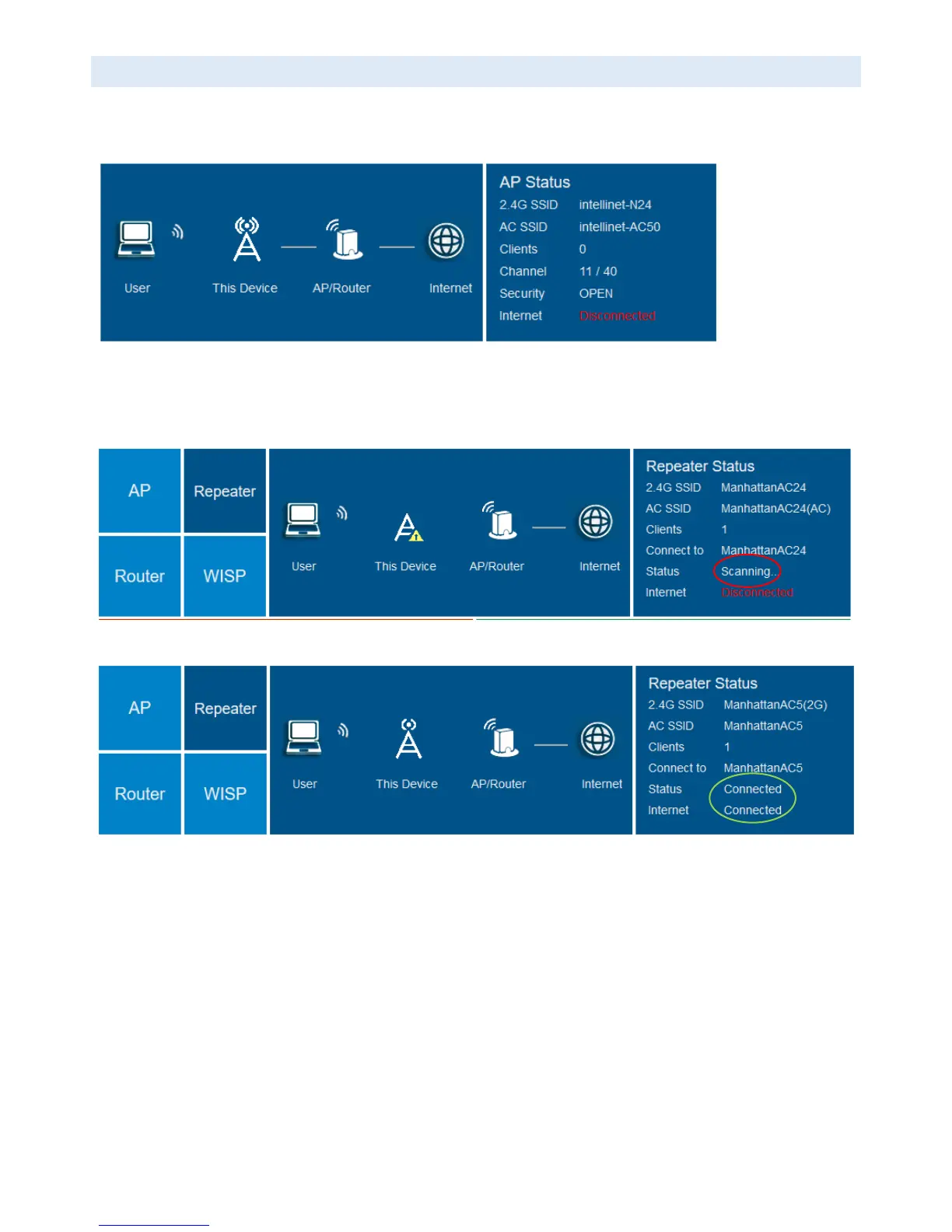

STATUS
ThissectionprovidesvariousbitsandpiecesofinformationaboutthecurrentstatusoftheIntellinetWirelessAccess
Point.Dependingontheoperationalmodethedeviceissetto,youwillseeoneoffourpossiblemenusdisplays.The
examplebelowshowsthefactorydefaultAPmode.


IfyoucreatearepeaterorWISPsetup,thisdisplaycanbeveryhelpfulindeterminingwhetherornottheconnection
succeeded.Theexamplebelowshowsanunsuccessfulrepeaterconnection.Thestatuscontinuestoshow‘Scanning…’
andInternetdisplaysas‘Disconnected’.


Theimagebelowshowsasuccessfulrepeaterconnection.


Note:IfyouexperienceproblemsgettingarepeaterorWISPconnectiontowork,considerthatthemostcommon
reasonforthatisthatthewirelesspasswordwasenteredincorrectly.




