Intellinet 525824 User Manual

- 18 -

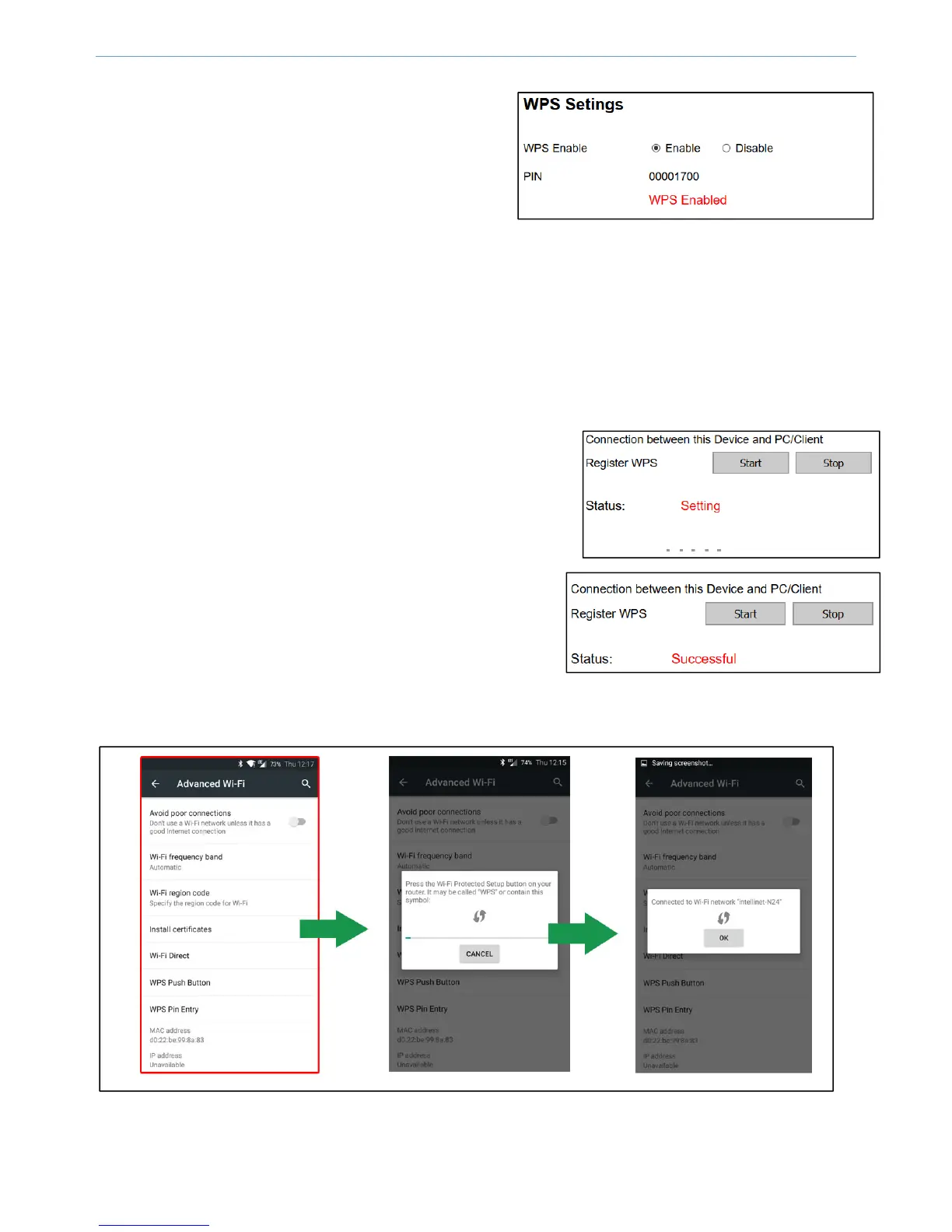

WPSSETTINGS
WPSstandsforWi‐FiProtectedSetup(alsoreferredtoasWi‐Fi
SimpleConfig)andisacomputingstandardthatattemptsto
alloweasyestablishmentofasecurewirelesshomenetwork.
Thismeans,thatyoucanjoinasecuredwirelessnetwork
withoutenteringacomplicatedpassword,butsimplyby
pushingabuttonorbyenteringaso‐calledpin‐code.Notall
wirelessclientssupportWPS,however.

WPSEnable:ThisactivatesordeactivatestheWPSfunction.

Pin:Pincodethattheclientmustenterinordertojoin,ifthepincodemethodisused.




Thelowerpartofthescreenisdedicatedtothepushbuttonmethod.
Hereishowitworks:
1.Clickon‘Start’.
2.Waitforthemessage‘setting’tobedisplayed.
3.PushtheWPSbuttononyourwirelessclient.Iftheclientdoesnothave
aphysicalbutton,thenusuallya‘softwarebutton’isprovided.An
exampleoftheAndroidWPSpushbuttonfunctionisshownbelow.
4.Whentheconnectionisestablished,themessagewillchangeto
‘Successful’.





ClientSetupExample–Android5.x::


