Intellinet 561099 User Manual

8‐PortGigabitWeb‐SmartSwitch
14|Page


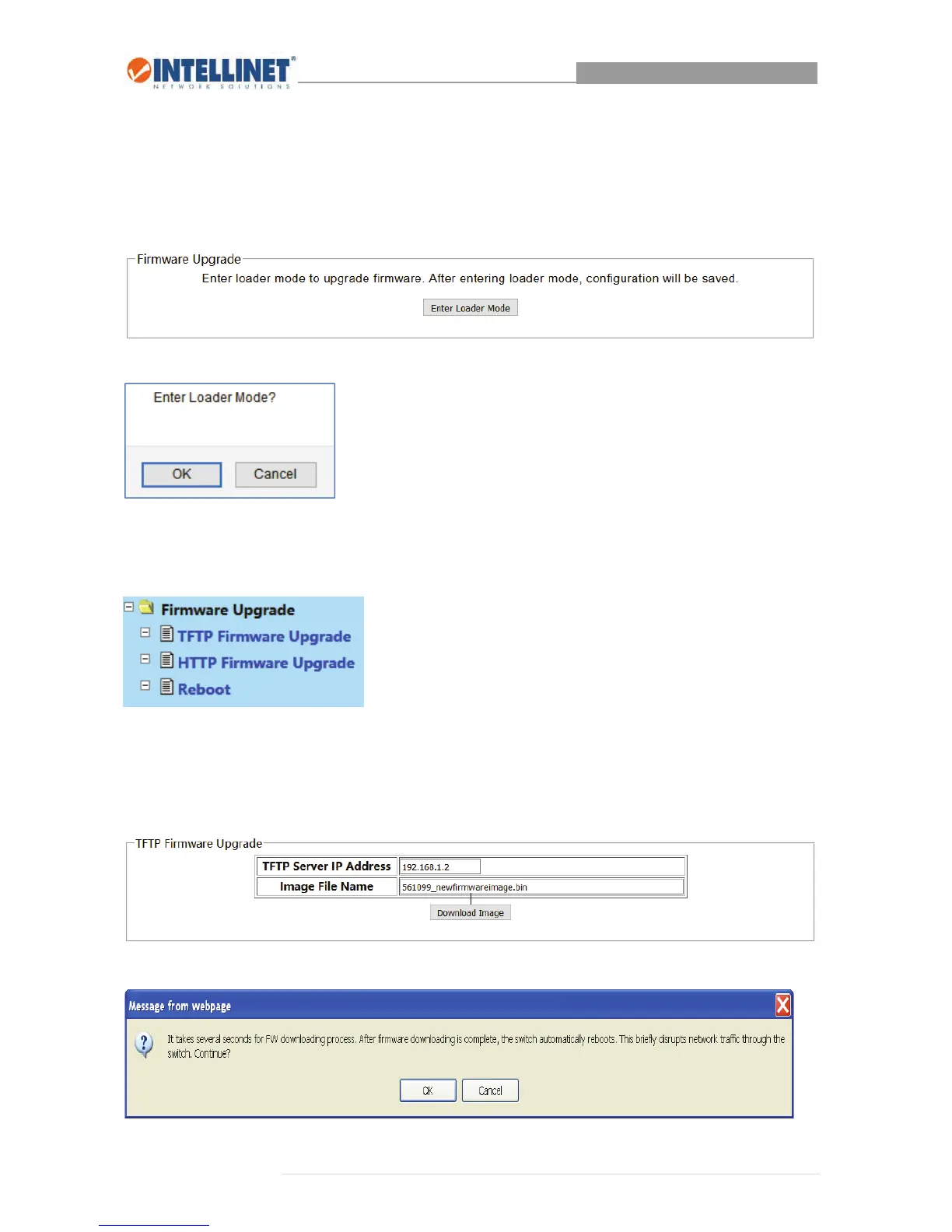

3.2.2 FirmwareUpgrade   
Ifanewfirmwareneedstobeinstalled,youcanusethisscreentodoit.Youcaninstallanewfirmware
image(file)usingTFTP,orHTTP.Inordertobegintheprocess,youmustfirstentertheso‐calledloader
mode.





AfteryouclickOK,youwillseeanewmenuontheleftsideofthescreen.Thismenuprovidesaccessto
theTFTPandHTTPmethodofupdatingthefirmware.


TFTP
ToinstalltheupgradeviaTFTP,aTFTPservermustbeconfiguredtoacceptconnectionsfromtheIntellinet 
switch.ProvidetheIPaddressoftheTFTPserveralongwiththecorrectfilenamethatyouwishtoinstall.

EntertheImageFileNameandclickDownloadImage,thenamessagewillpopup.






