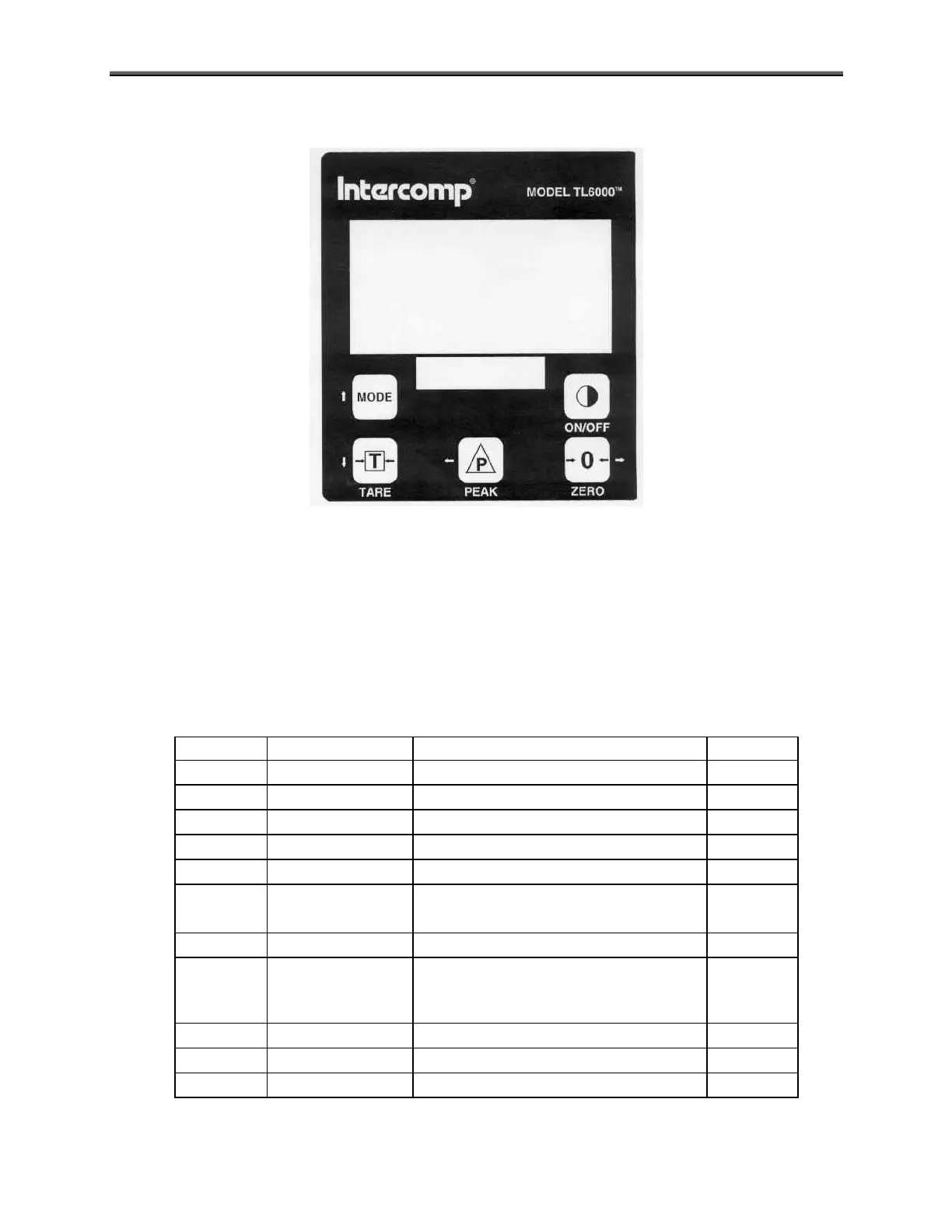

Controls
ON/OFF
Press this key to turn the scale on. The scale tests itself; when these tests have
completed successfully, the system begins weighing. Press this key to turn the
scale off.
MODE
Many of the internal parameters can be adjusted through the mode function.
There are a total of 12 modes: Backlight, Print, Units, Set P1, Set P2, Sample
Rate, Sleep, Auto-off, Serial data output, Baud rate, Analog output, Scale ID.
Mode Description Notes
Default
Print
PrintPrint
Print
Print ticket Hold MODE to print -
UnitS
UnitSUnitS
UnitS
Unit of weight lb, kg, daN, N, ton, kg x 1000 lb
SEtP1
SEtP1SEtP1
SEtP1
Set point 1 0 to 99999 99999
SEtP2
SEtP2SEtP2
SEtP2
Set point 2 0 to 99999 99999
S rt
S rtS rt
S rt
Sample rate 1 to 100 5
SLEEP
SLEEP SLEEP
SLEEP
Sleep mode 1 to 180 (min.) 0 = disable 5
AOFF
AOFFAOFF
AOFF
Auto off 1 to 180 (min.) 0 = disable 60
S Out
S OutS Out
S Out
Serial data out 0 = print (on-demand)
1 = continuous
3 = fast continuous (variable)
0
Baud
BaudBaud
Baud
baud rate 300,600,1200,2400,4800,9600 9600
A OUT
A OUTA OUT
A OUT
analog out 0 = disable, 1 = enable 0
SC Id
SC IdSC Id
SC Id
scale ID 1 to 20 1
