Interlogix NX-595E Installation Manual

NX-595E Installation Manual 11
Installing The NX-595E into the enclosure
Inside the NetworX enclosure, several 2-holed insertion points have been
constructed. This allows for either vertical or horizontal placement of the
modules. Notice that the insertion points have two sizes of holes - a larger
hole and a smaller hole.

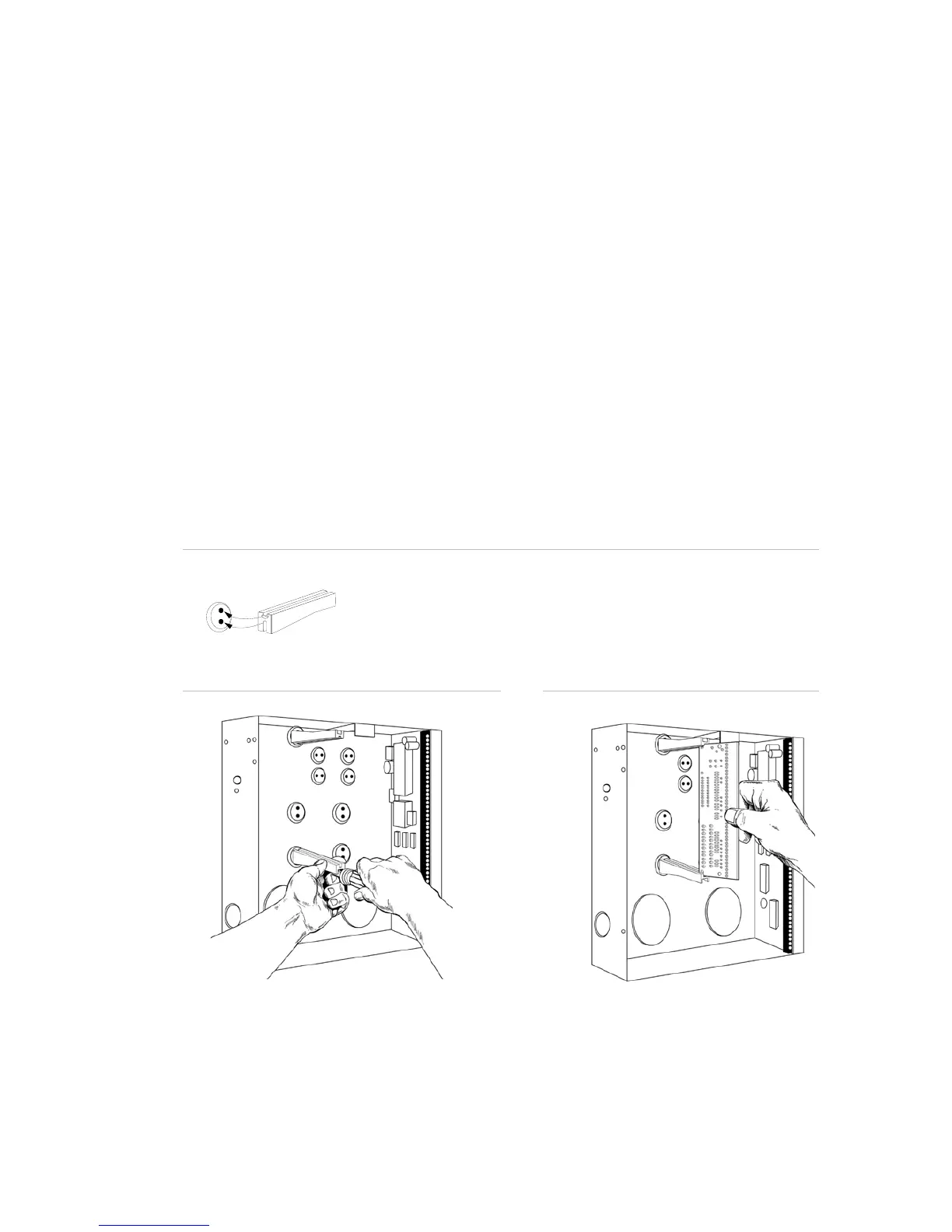

Figure 1: The black plastic PCB guides are grooved on one edge where the PC
Board will be seated. The end with the half-moon protrusion fits into the larger
hole. The smaller hole is for the screw.
Figure 2: Place the first black plastic PCB guide in the top insertion point,
grooved edge downward. The half-moon protrusion will be in the large hole. It
does not require force. Insert one of the provided screws into the smaller hole
(from inside the can) to secure it in place. A screwdriver should reach through the
notch that runs the length of the guide to tighten the screw. The second PCB
guide should be positioned opposite of the first (grooved edge up) and placed in
the lower insertion point, using the same procedures described above. Once
mounted, screw it in securely.
Figure 3: The PC board should slide freely in the grooves of both guides.
Figure 1
Figure 2 Figure 3

Interlogix NX-595E Specifications

General

Quantity	1
Compatibility	V2 (NX-4, NX-6, NX-8, NX-8E, NX-7, NX-9, NX-10, NX-11)
Operating temperature (T-T)	0 - 49 °C

Weight and Dimensions

Depth	90 mm
Width	220 mm
Height	45 mm
Weight	130 g
Dimensions (WxDxH)	220 x 90 x 45 mm
