Interlogix NX-595E Installation Manual

NX-595E Installation Manual 15
17 AO
Future
Use
18 Com
19 A1
20 NC1
ER1
Entry
Relay 1
Normally closed This relay is controlled from
the NX-181xx communicating
with outdoor station 1
21 C1 Common
22 NO1 Normally open
23 NC2
ER2
Entry
Relay 2
Normally closed This relay is controlled from
the NX-181xx communicating
with outdoor station 2
24 C2 Common
25 NO2 Normally open

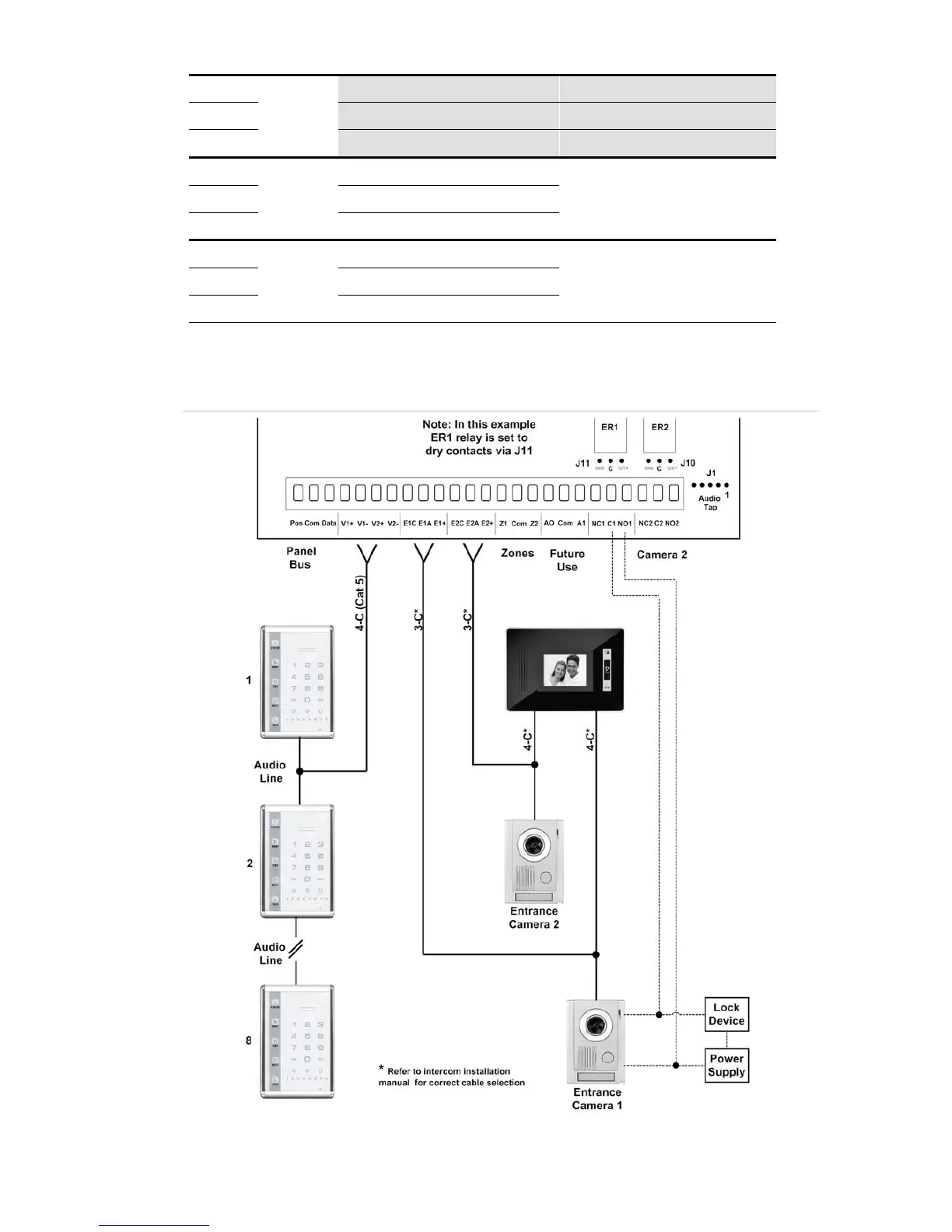

Wiring Structure
Figure 8

Interlogix NX-595E Specifications

General

Quantity	1
Compatibility	V2 (NX-4, NX-6, NX-8, NX-8E, NX-7, NX-9, NX-10, NX-11)
Operating temperature (T-T)	0 - 49 °C

Weight and Dimensions

Depth	90 mm
Width	220 mm
Height	45 mm
Weight	130 g
Dimensions (WxDxH)	220 x 90 x 45 mm
