Wiring
We recommend that different power supplies are used for the module and
heating.
Note: When using guillotine connectors, put the wire in the connector, and then
pull it out slightly so that it tightens.

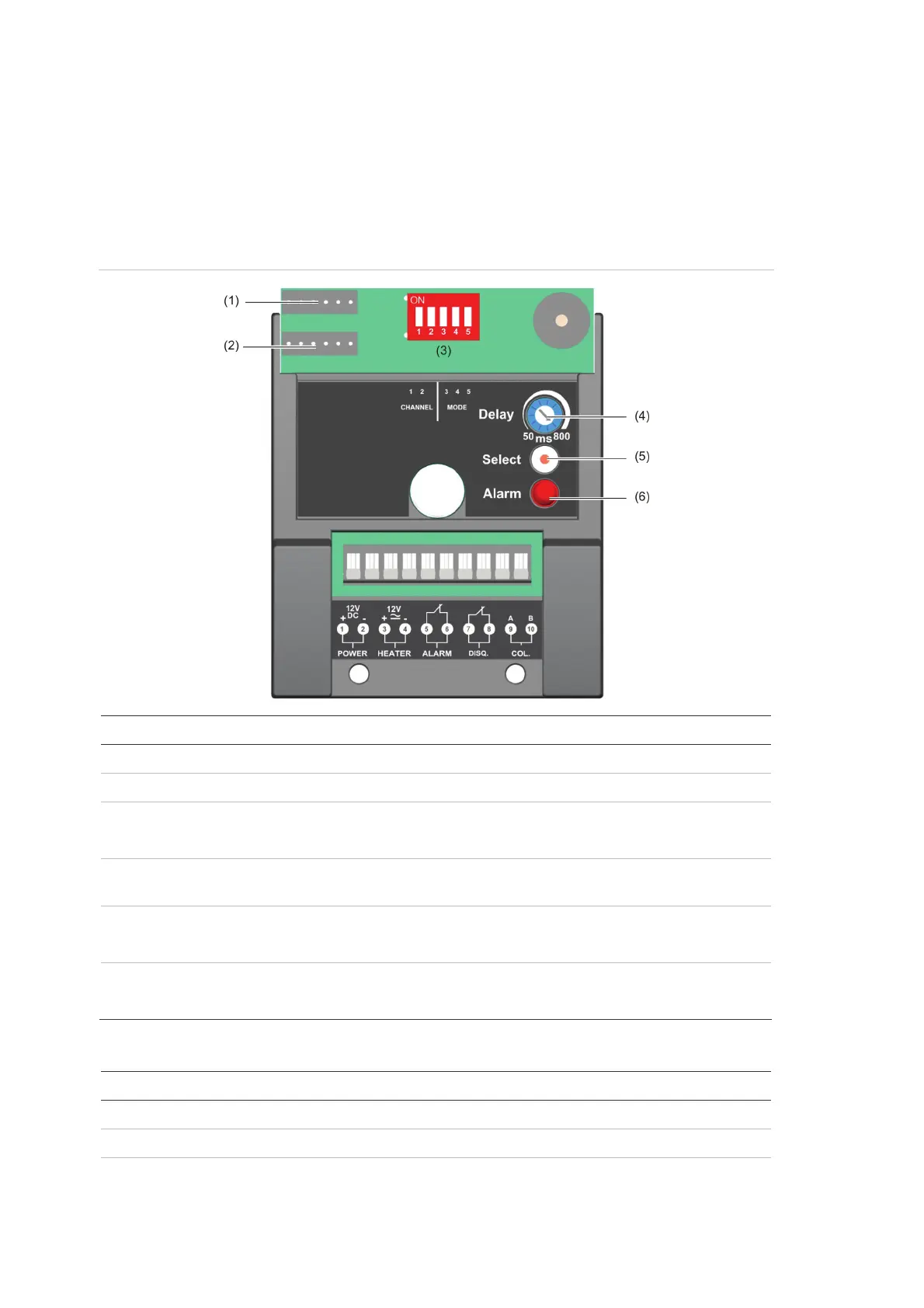

Figure 5: Terminals and controls
Item Description Note
(1) Top cell
(2) Bottom cell
(3) DIP switches Channel selection (1 and 2)
Operating mode selection (3 to 5)
(4) Delay adjustment
n adjustment of the response time of the intrusion alarm (50 to
800 ms)
(5) Selection button Select alignment mode
Select cells in alignment mode
(6) Alarm LED Intrusion alarm / disqualification (blinking)
Level of the signal in alignment
Table 1: Terminals
Terminal Description
1 “+” Power
2 “−” Power
3 “+” Heating
6
SB Series AIR Beam Detectors Installation Manual
