“Master” module channel selection
Select the channel of the barrier on “Master” module (see also “Channel
selection” on page 10).

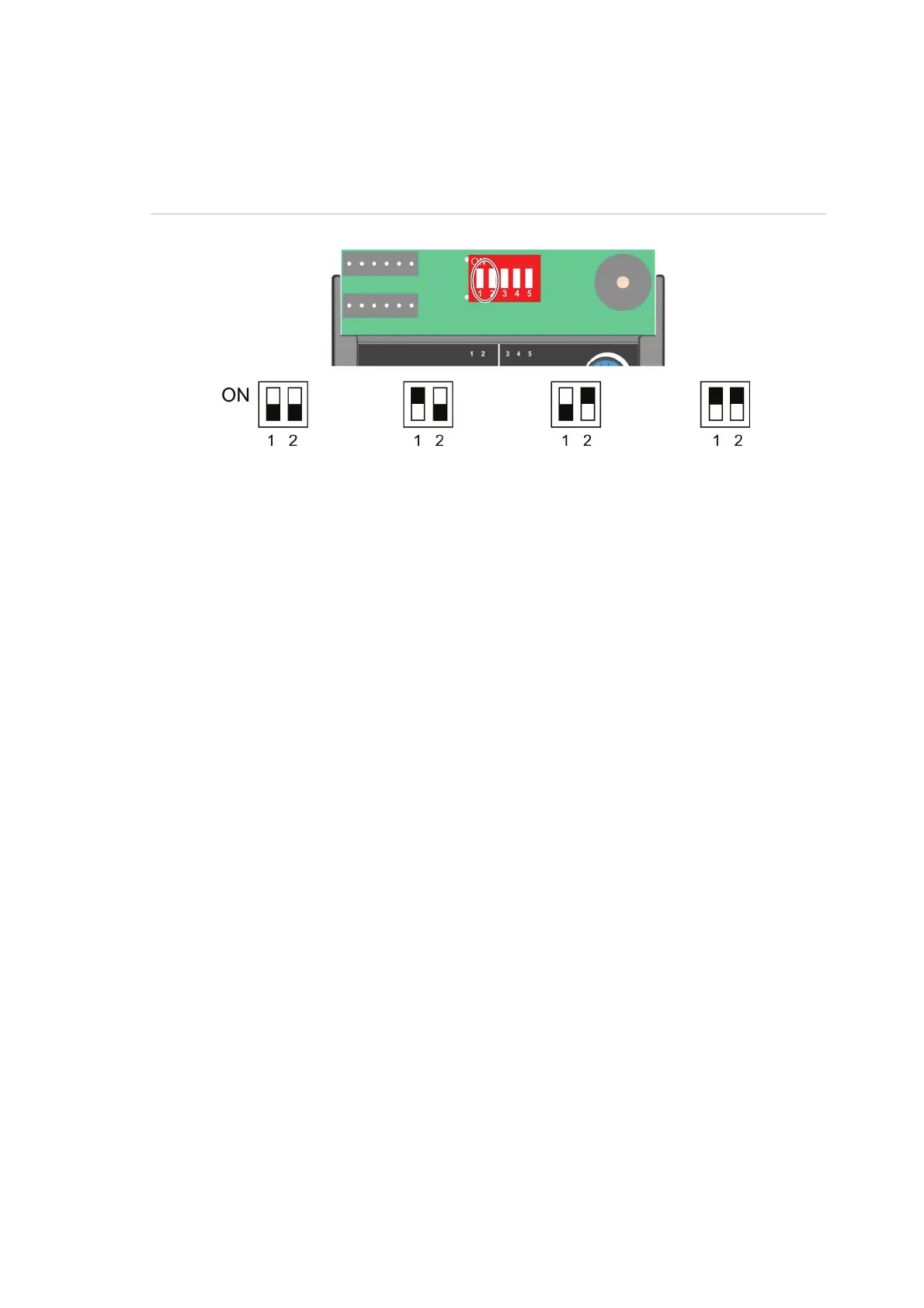

Figure 18: Master module channel selection
Channel 1 (OFF
OFF)
Channel 2
(ON OFF)
Channel 3
(OFF ON)
Channel 4
(ON ON)
Detection mode selection
Select the detection mode: simple detection or interdetection (not available on
the modules SB4200-N).
The detection mode is set on the “Master” module:
• Switch 5 of the “Master” module ON to select dual-detection.
• Switch 5 of the “Master” module OFF to select simple detection.
SB Series AIR Beam Detectors In
stallation Manual 19
