Interlogix SB Series User Manual

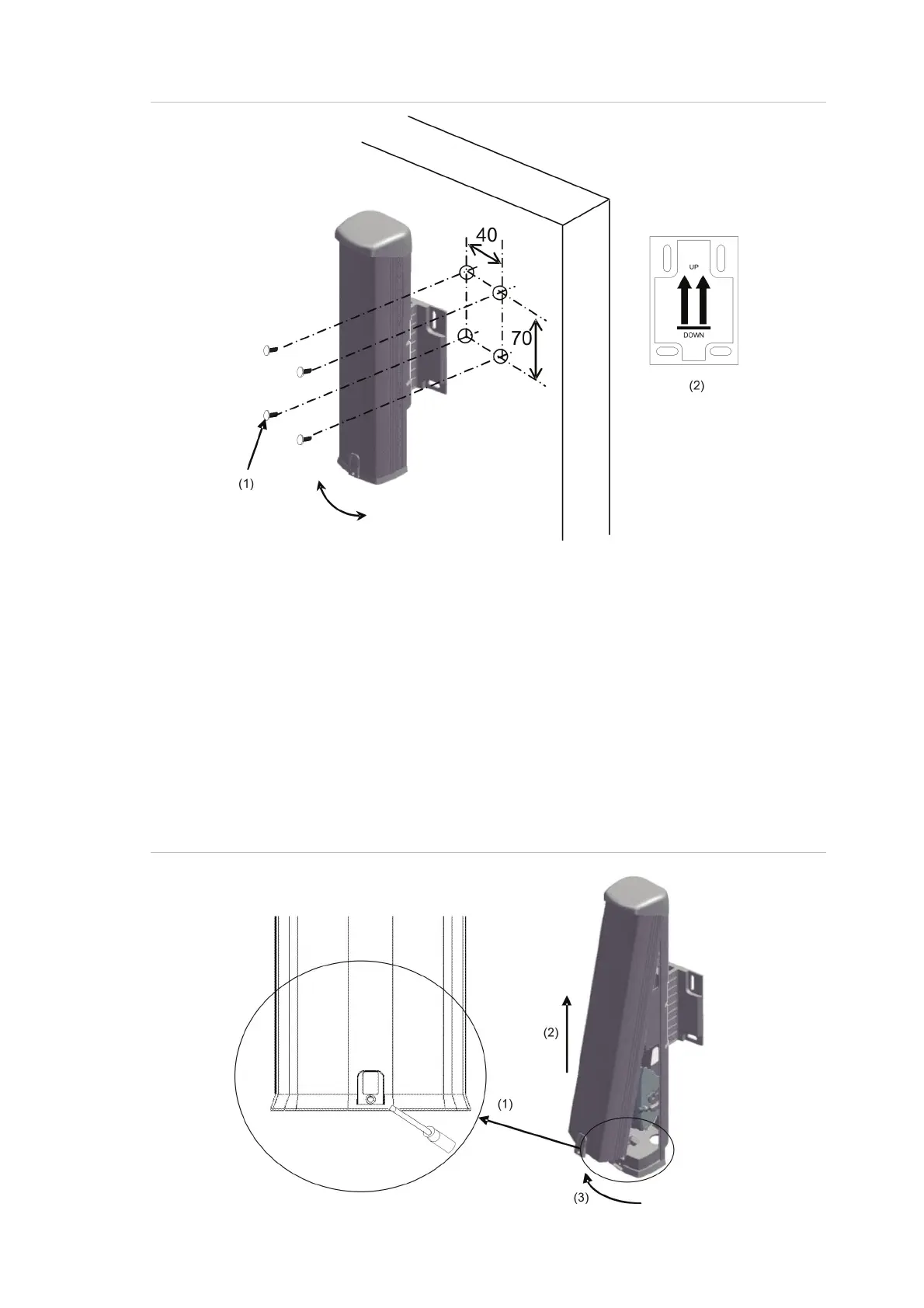

Figure 3: Wall mounting
(1) 4 screws (2) Rear view of the adjustable bracket
Removing the infrared cover
See Figure 4 below.
1. Remove the screw attaching the infrared cover, taking care not to lose the
staple (item 1).
2. Slide the cover upwards until it is stopped by the top plate (item 2).
3. Pull the cover outwards from the grooves in the chassis to remove it (item 3).
Figure 4: Removing the infrared cover
SB Series AIR Beam Detectors In
stallation Manual 5
