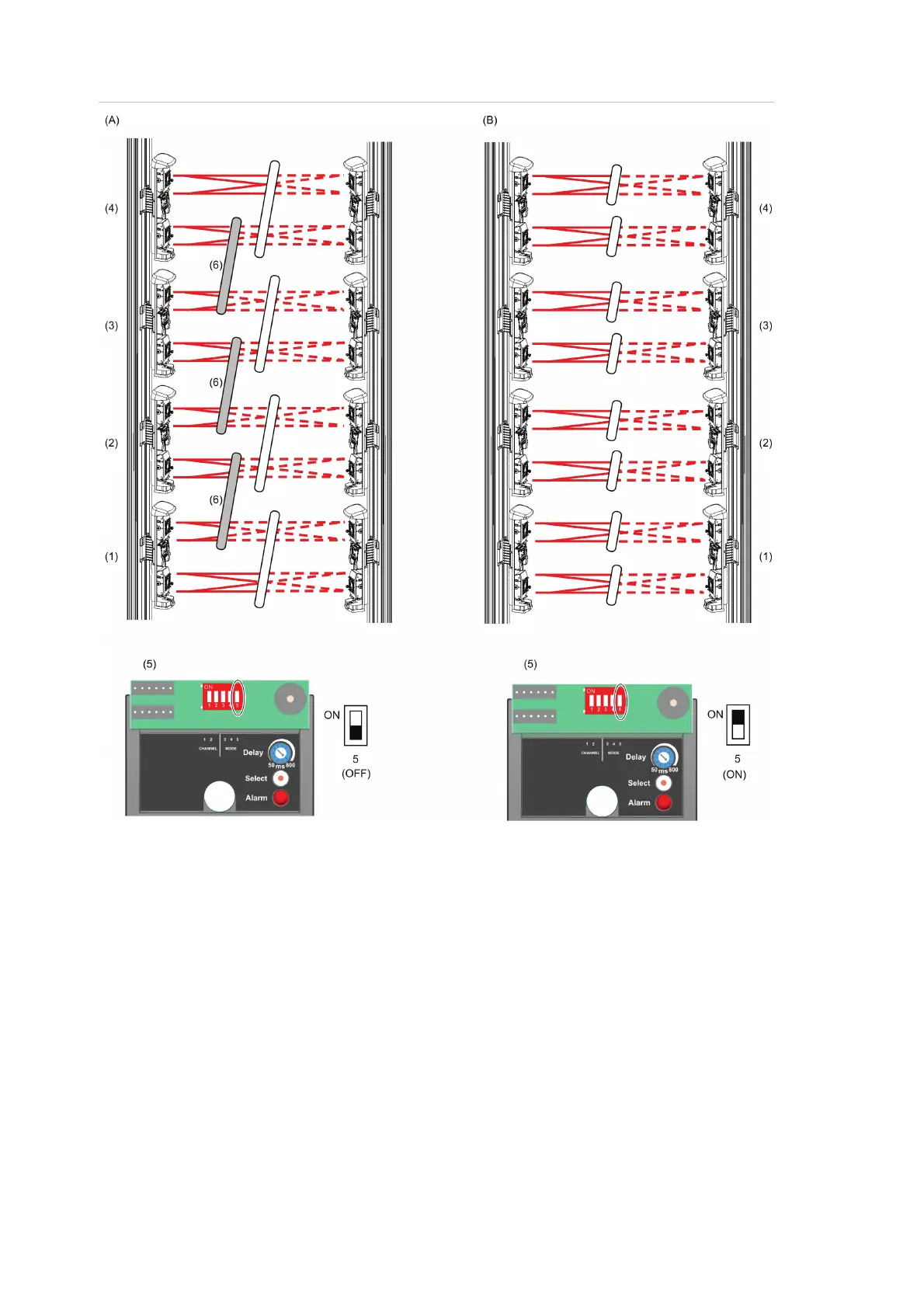

Figure 19: Detection mode selection
(A) Interdetection mode
(B) Simple detection mode
(1) to (4) Modules 1 to 4
(5) “Master” module settings
(6) Dual detection between modules
Important Note: Interdetection can be selected for all kind of modules except for
SB4200-N (item 6).
Mono-detection of the bottom beam (optional)
Important Note: Functionality is not available in SB4200-N, SB250-N and
SB2100-N modules.
The column must be configured in interdetection mode in order to activate the
mono-detection of the bottom beam.
20
SB Series AIR Beam Detectors Installation Manual
