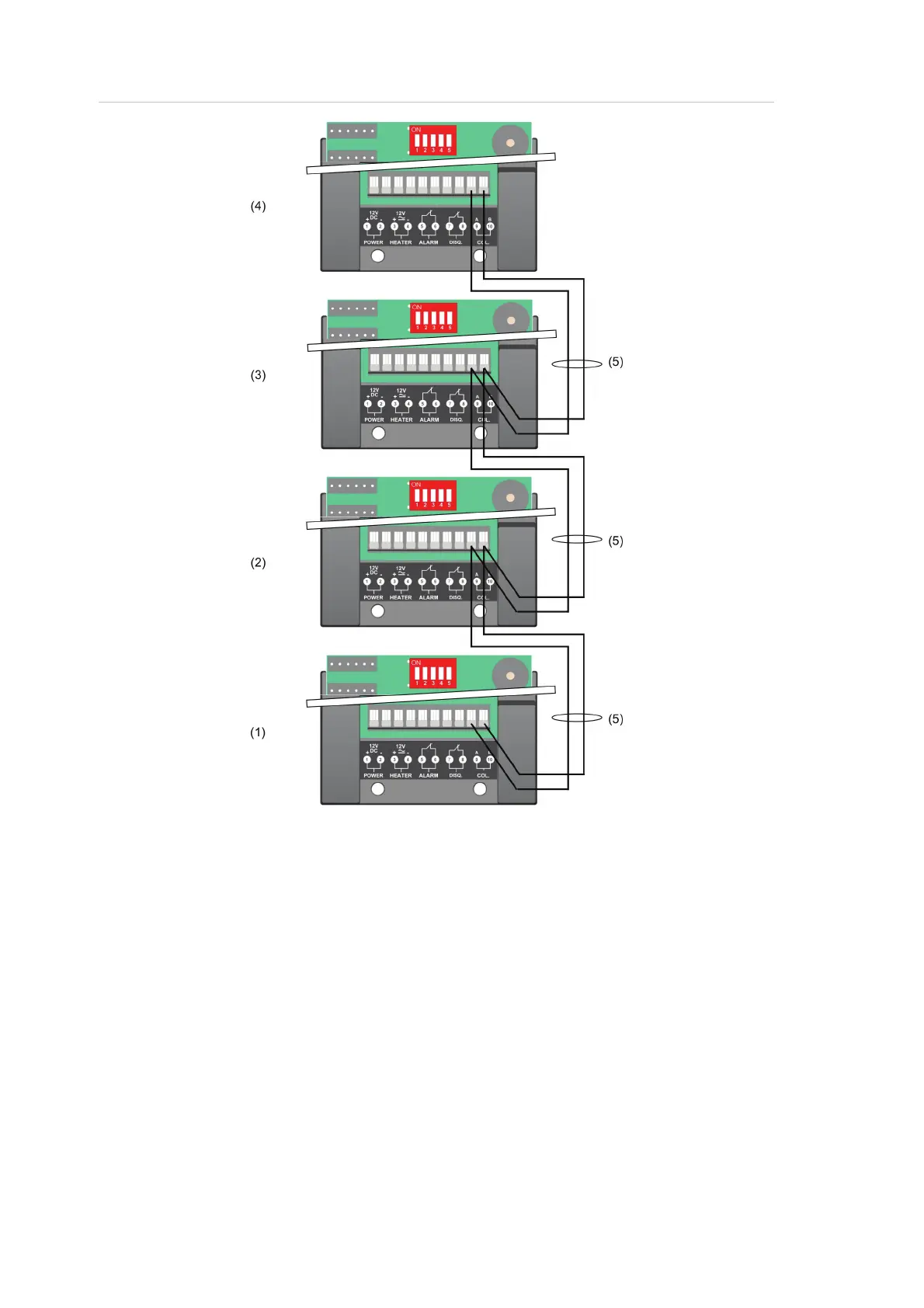

Figure 14: Multiple module wiring
(1) to (4) Modules 1 to 4 (5) Inter-module connection
16
SB Series AIR Beam Detectors Installation Manual
