MultiWave Control System Installation Guide
Connecting a P5043ME Expansion Module Communication Cable to
Receiver
Follow this procedure to connect the P5043ME Expansion Module communication cable to the
receiver.
NOTE: The expansion module connects to the same terminals as the AutoPilot Salt Chlorine
Generator. Both can be installed in the terminals.
1. Make sure the power is off at the receiver.
2. Connect the communication cable to the proper terminals on the expansion module. See
Figure 3-5.
3. Connect the green wire from the unattached end of the communication cable to the connector
terminal next to the Cat 5 cable. See Figure 3-5.
NOTE: Be sure to observe polarity when connecting the expansion module wires.
4. Connect the yellow wire from the cable to the connector terminal next to the green wire.
1 2 3 4 5 6 7 8 9
1 2 3 4 5
Observe Polarity
Power
Supply
120V
240V
Communication
Lines
PE30000
Series
Low Voltage
Compartment
High Voltage
Compartment

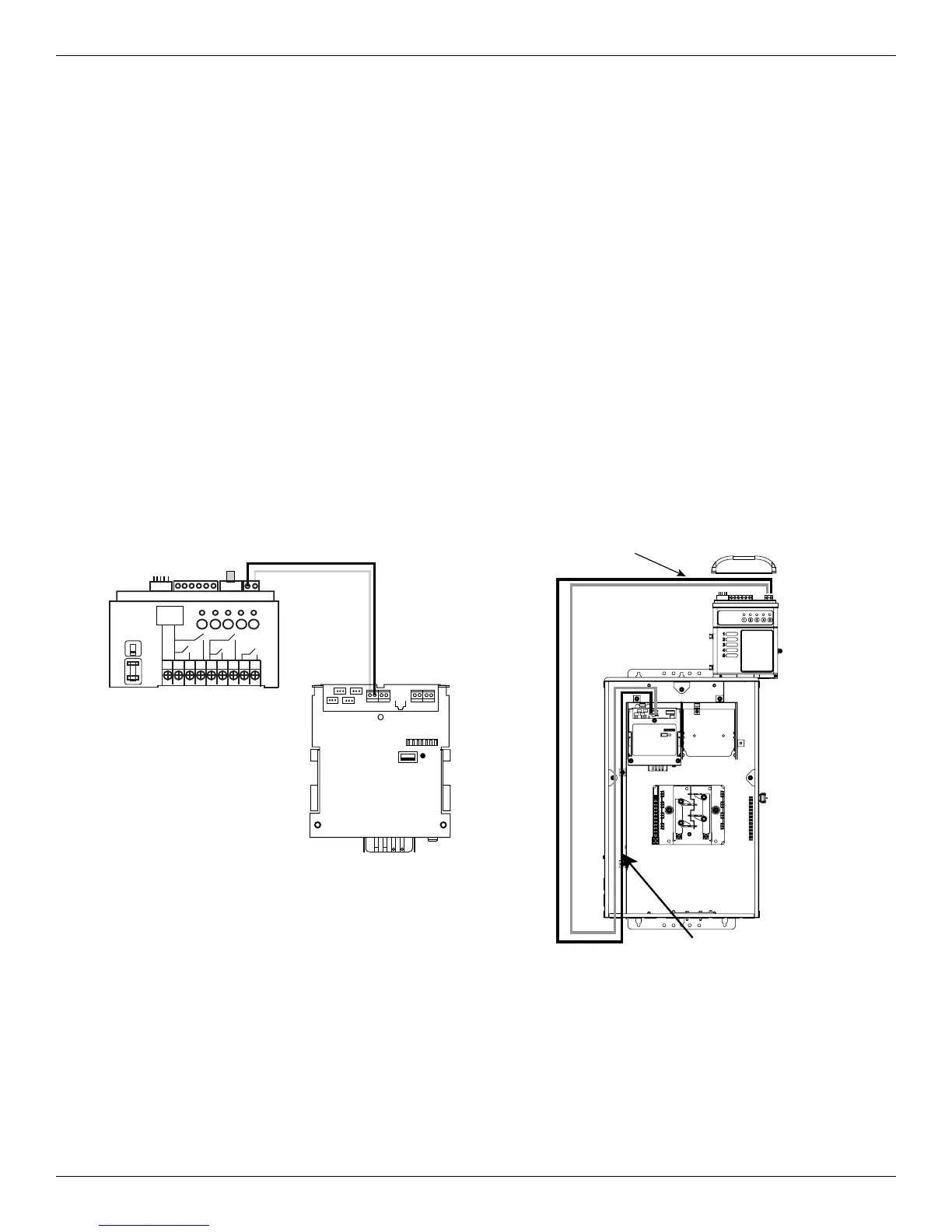

Figure 3-5. PE653 Receiver to P5043ME wiring connections.
Figure 3-6. High and low voltage wire
routing from PE653 Receiver to PE30000
Series Load Center.
