25Filter Pump Installations
Receiver
Power
Supply
120V
240V
Neutral Bus
Hot Line #1
Hot Line #2
Hot Line
#2
2-Pole Breaker
240 VAC
1-Speed
Pump

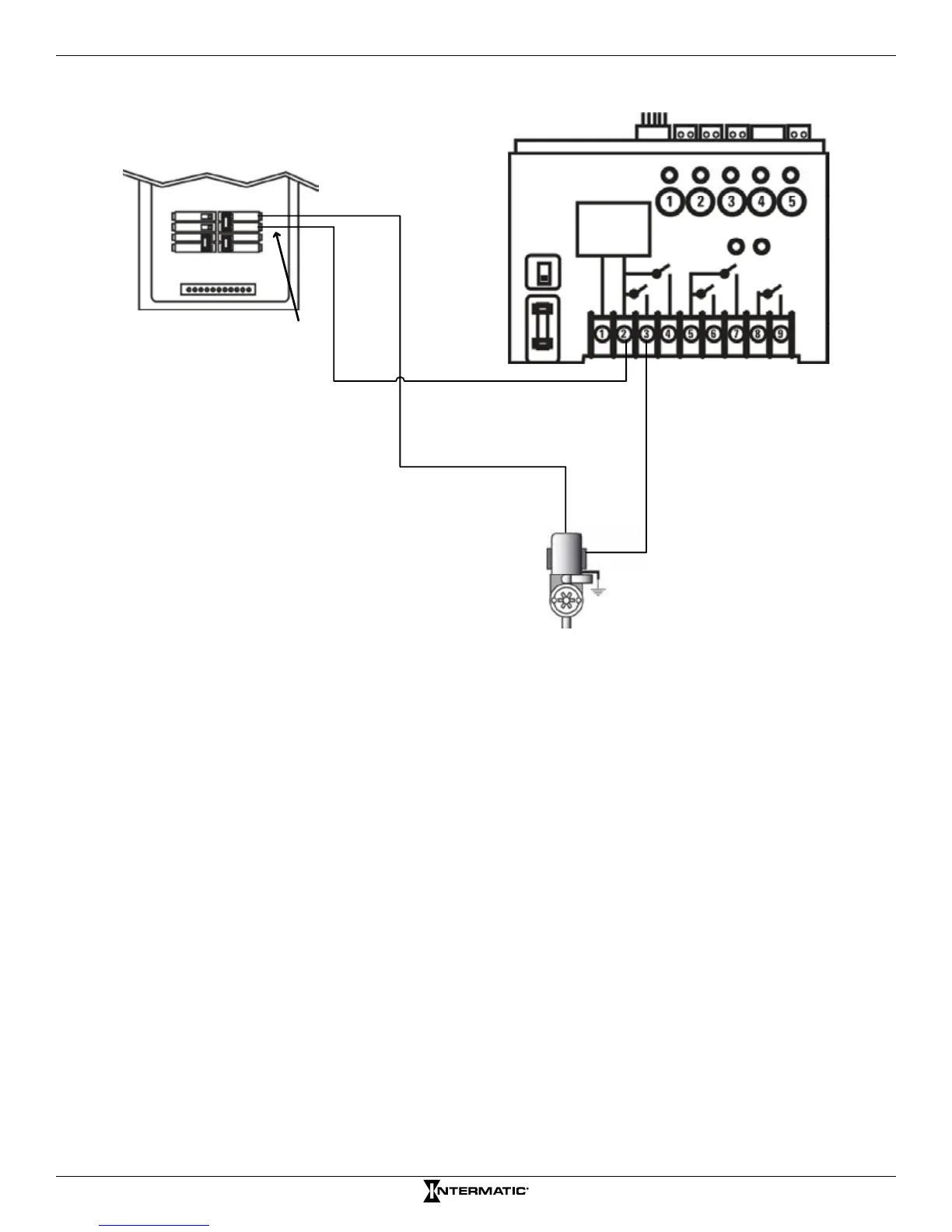

Figure 4-5. Wiring Circuit #1 to a 240 VAC 1-Speed Pump for PE653RC and P5043ME.
