Chapter 2— Operating the Printer
3400, 3440, and 3600 Bar Code Label Printer User’s Manual 17
3XXXU.025
Power/Data
Alert
Empty/Pause
Feed/Pause
Power/Data
Green LED
Alert
Empty/Pause
Off
On
Flashing
Off
Flashing
On
Off
Flashing
On
Power off
Power on
Receiving data
Printing or idle
Over-temperature
System fault
Printing or idle
Paused
Media fault
LED State Indication
Orange LED
Yellow LED

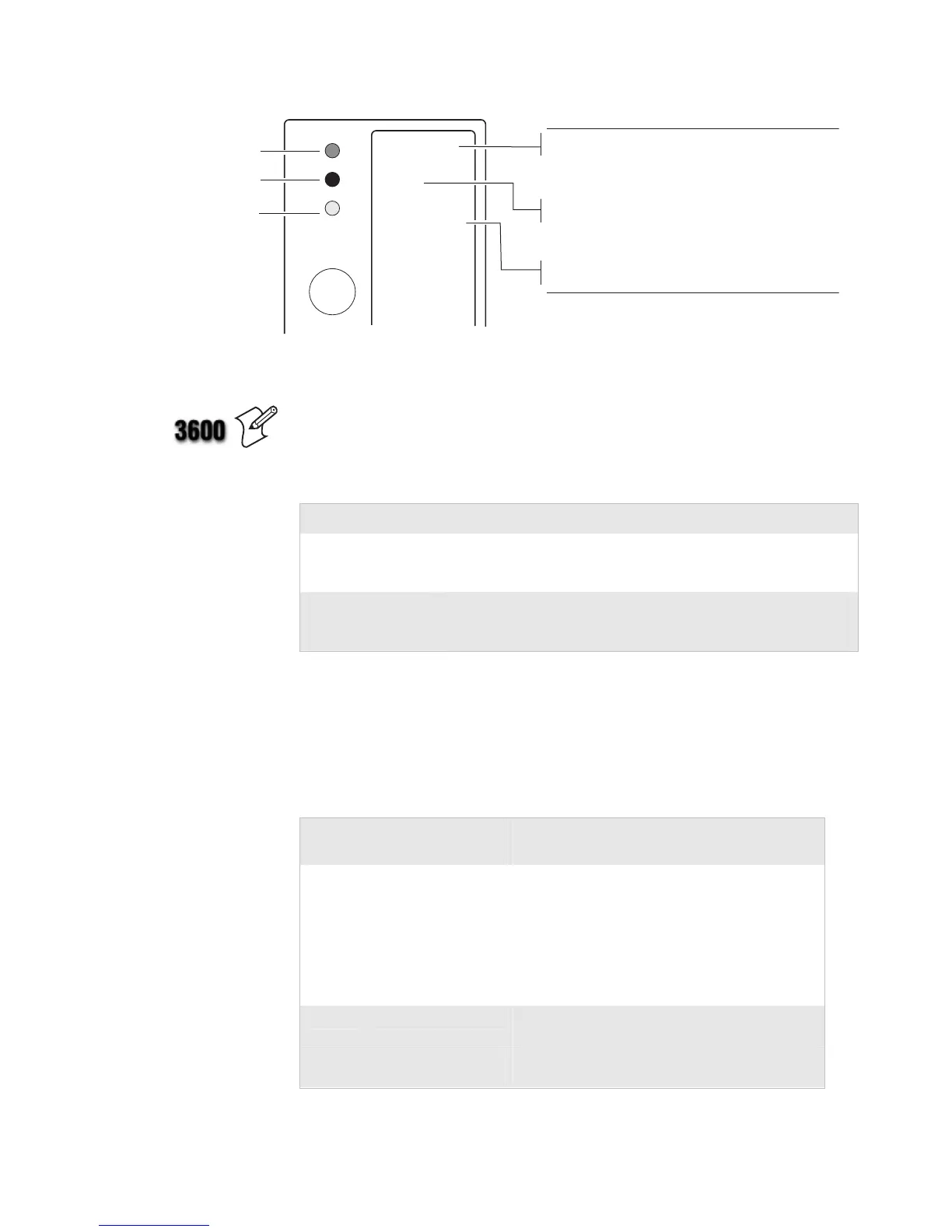

LED states: This illustration shows what each LED state indicates.
Note: The green LED on the 3600 printer front panel reads Power. It
does not flash to indicate receiving data.
LED States for Problems
Problem LED State
Over-Temperature If the printer overheats, the Alert flashes and the printer stops. Do
not try to troubleshoot or adjust the printer—just allow the printer
enough time to cool down and it will resume operation on its own.
Media or System
Faults
If the Empty/Pause or the Alert LED remains on, your printer is
experiencing a media or system fault. For help, see Chapter 4,
“Troubleshooting.”
Using the Feed/Pause Button
The Feed/Pause button, located on the front of the printer, performs
several functions depending on the mode of the printer.
Feed/Pause Button Functions
Printer
Mode
You Want To
What to Do
Idle Feed out one label or
a minimum specified
amount of media.
Press and release the Feed/Pause button.
Continuously feed
media.
Press and hold the Feed/Pause button. When
you release the button, the media stops feeding.
Take the printer
offline.
Press the Feed/Pause button twice. Press the
button again to bring the printer online.
Printing Pause the printer. Press and release the Feed/Pause button. Press
and release the button again to resume printing.
Cancel the current
print job.
Press and hold the Feed/Pause button until the
printer stops printing.
