Appendix A— Specifications
3400, 3440, and 3600 Bar Code Label Printer User’s Manual 75
Fonts and Graphics
The 3440 printer contains 21 resident bitmap fonts and three outline
fonts. You can use font ID 3 through 6 and 8 through 19 to download
user-defined fonts.
Maximum UDF 102 mm (4 in) square with standard
memory option
Only limited by available
memory on SIMM module.
Maximum UDC 102 mm (4 in) square with standard
memory option
Only limited by available
memory on SIMM module.
Media
G
3XXXU055.eps
D
C
A
B
E
F
H

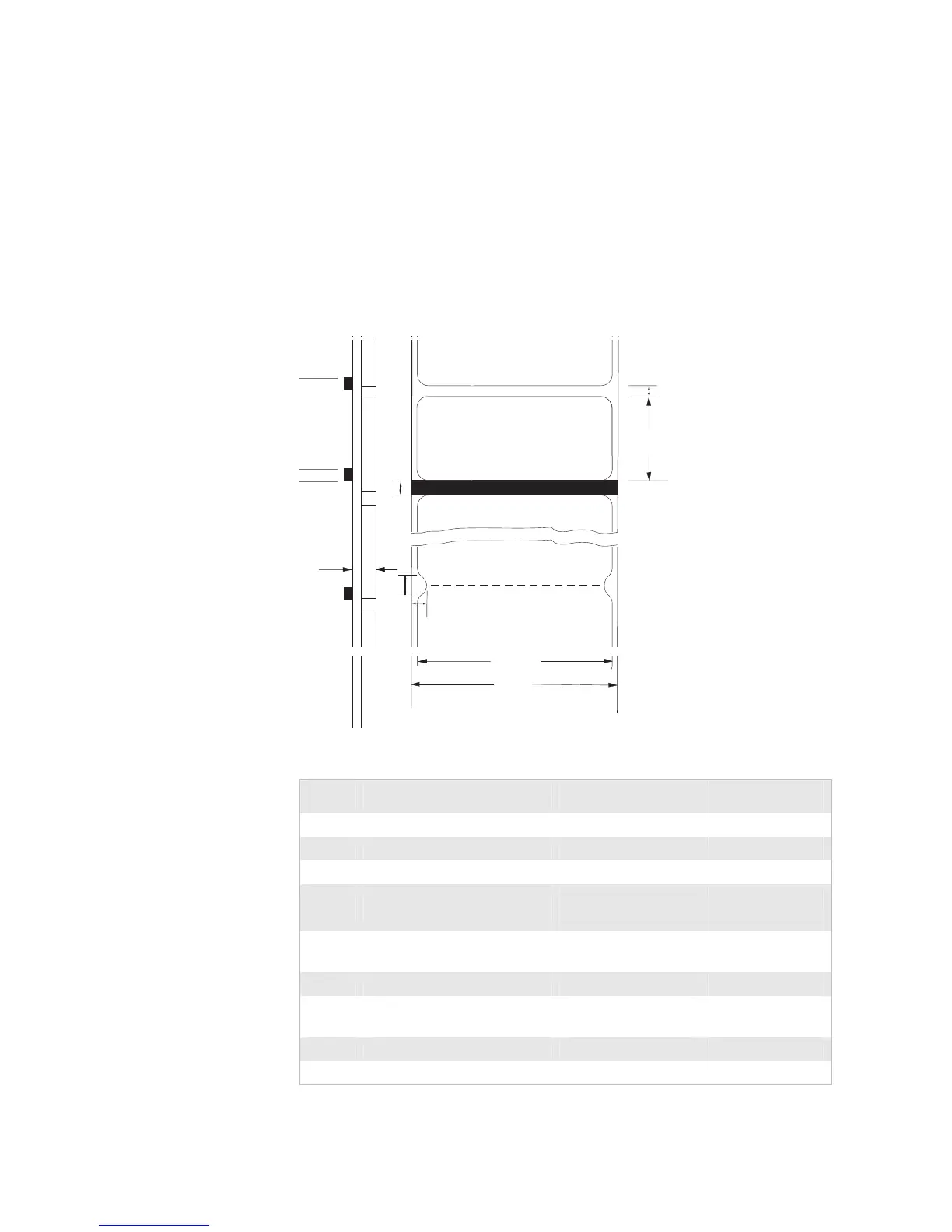

Minimum and Maximum Media Dimensions
Letter Description Minimum Maximum
A Label width 16.5 mm (0.65 in) 111.8 mm (4.4 in)
B Backing width (or tag width) 19.1 mm (0.75 in) 114.3 mm (4.5 in)
C Gap between labels 2.54 mm (0.1 in) 25.4 mm (1 in)
D Label length - self-strip media 25.4 mm (1.0 in) 610 mm (24 in)
Label length - butt cut media 12.7 mm (0.5 in) 610 mm (24 in)
E Media thickness
(including backing)
0.076 mm
(0.003 in)
0.25 mm
(0.012 in)
F Reflective sensor mark length 2.54 mm (0.1 in) 12.7 mm (0.5 in)
G Notch length 2.54 mm (0.1 in) 3.18 mm
(0.125 in)
H Notch height (depth) 6.4 mm (0.25 in) 12.7 mm (0.5 in)
Roll diameter N/A 213 mm (8.38 in)
