Appendix A— Specifications
3400, 3440, and 3600 Bar Code Label Printer User’s Manual 73
Media
G
3XXXU055.eps
D
C
A
B
E
F
H

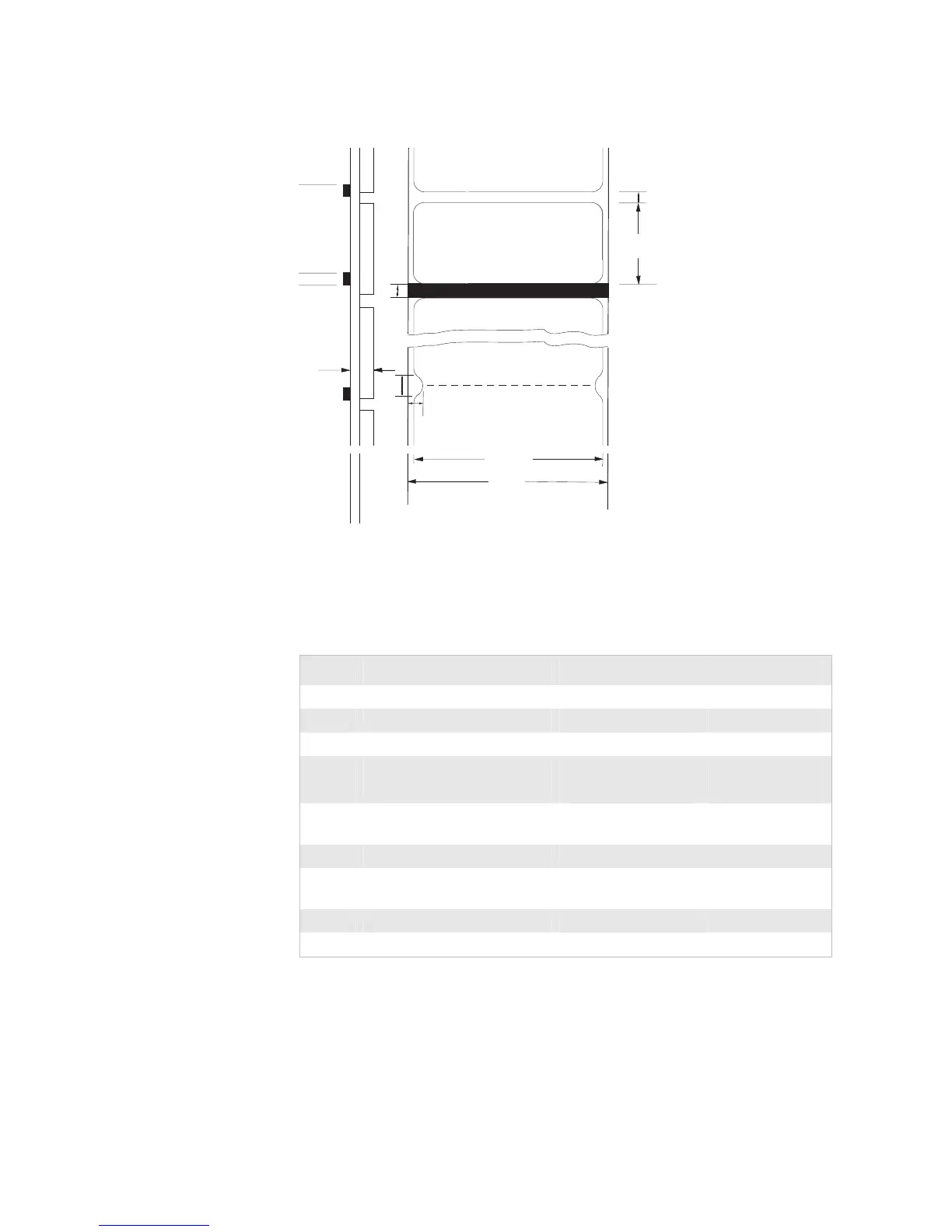

Media dimensions: This illustration shows how to measure the media dimensions. See
the next table, Minimum and Maximum Media Dimensions, for specific media
dimensions.
Minimum and Maximum Media Dimensions
Letter Description Minimum Maximum
A Label width 16.5 mm (0.65 in) 111.8 mm (4.4 in)
B Backing width (or tag width) 19.1 mm (0.75 in) 114.3 mm (4.5 in)
C Gap between labels 2.54 mm (0.1 in) 25.4 mm (1 in)
D Label length - self-strip media 25.4 mm (1.0 in) 610 mm (24 in)
Label length - butt cut media 12.7 mm (0.5 in) 610 mm (24 in)
E Media thickness
(including backing)
0.076 mm
(0.003 in)
0.25 mm
(0.012 in)
F Reflective sensor mark length 2.54 mm (0.1 in) 12.7 mm (0.5 in)
G Notch length 2.54 mm (0.1 in) 3.18 mm
(0.125 in)
H Notch height (depth) 6.4 mm (0.25 in) 12.7 mm (0.5 in)
Roll diameter N/A 213 mm (8.38 in)
