Fonts and Graphics
There are nine resident bitmap scaleable fonts (including OCR A and B).
You can use font ID 3 through 6 and 8 through 19 to download user-
defined fonts.
Maximum UDF or UDC 76.2 mm (4 in) square
Media
G
3XXXU055.eps
D
C
A
B
E
F
H

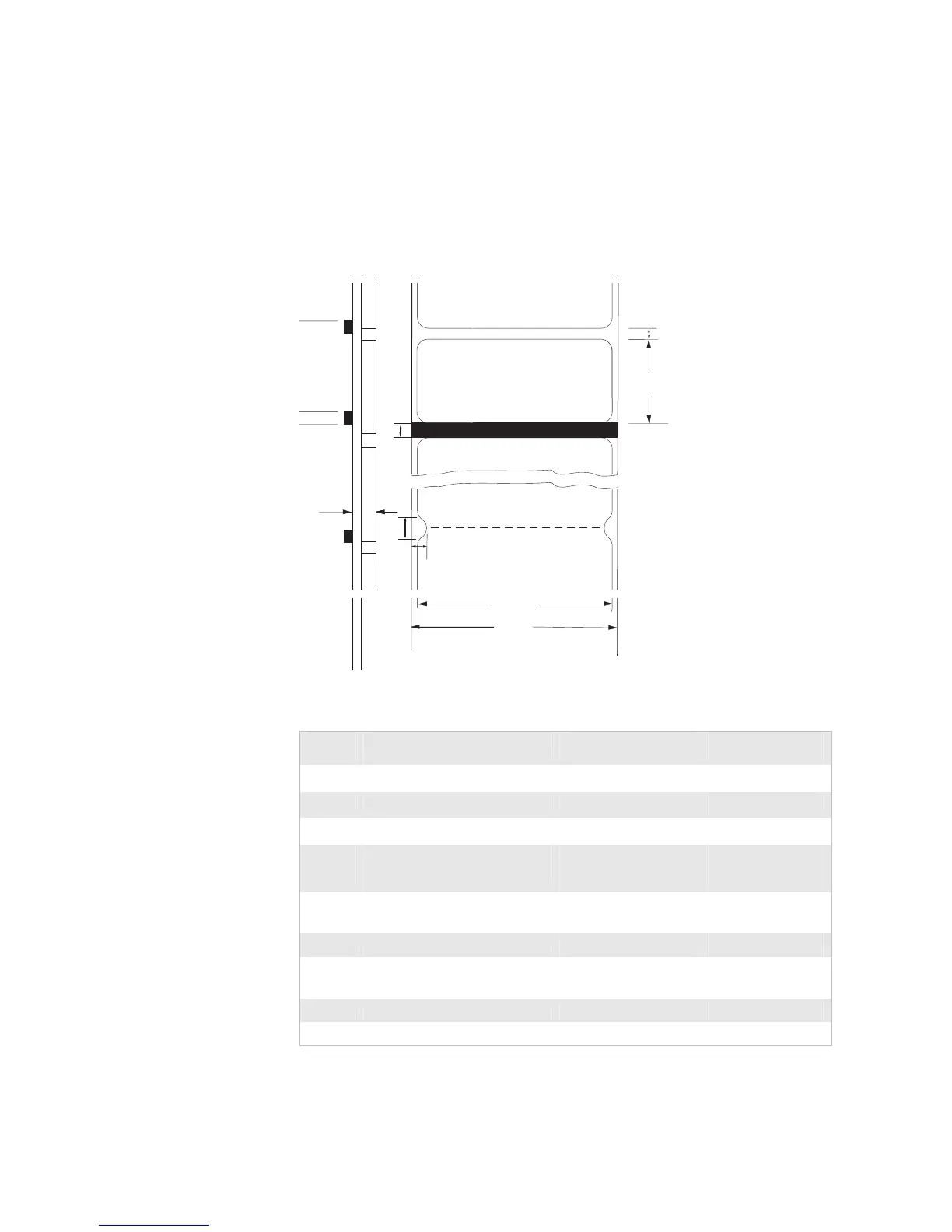

Minimum and Maximum Media Dimensions
Letter Description Minimum Maximum
A Label width
76.2 mm (3.0 in) 167.6 mm (6.6 in)
B Backing width (or tag width)
78.7 mm (3.1) 170.2 mm (6.7 in)
C Gap between labels
25.4 mm (1.0 in) 25.4 mm (1.0 in)
D Label length - self-strip media 25.4 mm (1.0 in) 610 mm (24 in)
Label length - butt cut media 12.7 mm (0.5 in) 610 mm (24 in)
E Media thickness
(including backing)
0.076 mm
(0.003 in)
0.30 mm
(0.012 in)
F Reflective sensor mark length 25.4 mm (1.0 in) 12.7 mm (0.5 in)
G Notch length 25.4 mm (1.0 in) 3.18 mm
(0.125 in)
H Notch height (depth) 6.4 mm (0.25 in) 12.7 mm (0.5 in)
Roll diameter N/A 213 mm (8.38 in)
