Chapter 2— Operating the Printer
3400, 3440, and 3600 Bar Code Label Printer User’s Manual 21
If you are using a narrow roll of media, less than 7.62 centimeters
(3 inches), insert the media support between the roll of media and the
supply roll retainer before securing it.
Note: The 3600 printer does not require the use of the media support.

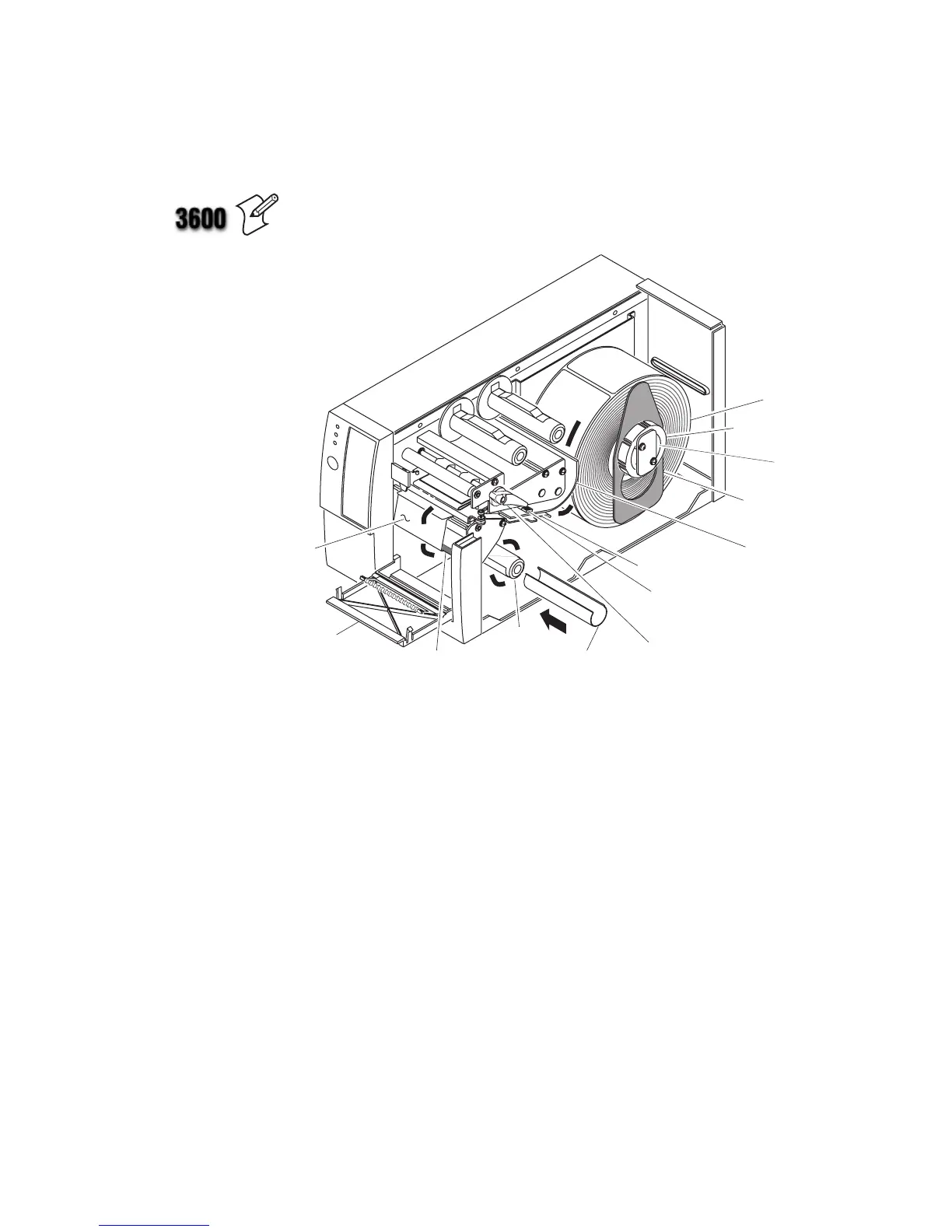

Pow
er/D
ata
3440
Alert
Fe
ed/Pause
Empty/Paus
e
Media
liner
Rewinder
clasp
Rewinder
hub
Self-strip
assist roller
Head lift
lever
Media roll
Supply roll
retainer
➤
➤
➤
Lower media
guide
Media
access door
Supply rol
post
➤
➤
➤
Edge
guide
Upper
media
guide
Intermec
3XXXU.027
Media
support
5 Unscrew the edge guide and slide it to the outer edge of the lower media
guide. Screw it in place.
If you are replacing the empty media roll with a new roll of the same
width, you do not need to adjust the edge guide.
6 Pull down on the lower media guide to allow easy access to the media
path.
7 Unroll several inches of media, insert it between the upper media guide
and the lower media guide, and out the front of the printer.
8 Release the lower media guide and adjust the edge guide to position the
media firmly against the inside wall of the printer.
9 Pull out 25.4 to 30.48 centimeters (10 to 12 inches) of media and
remove the exposed labels from the media liner.
10 Open the media access door and thread the media liner under the self-
strip assist roller and over the rewinder hub in a clockwise direction.
11 Remove the clasp from the rewinder hub and wind approximately 5.08
centimeters (2 inches) of media liner clockwise over the rewinder hub.
