Chapter 2— Operating the Printer
3400, 3440, and 3600 Bar Code Label Printer User’s Manual 23

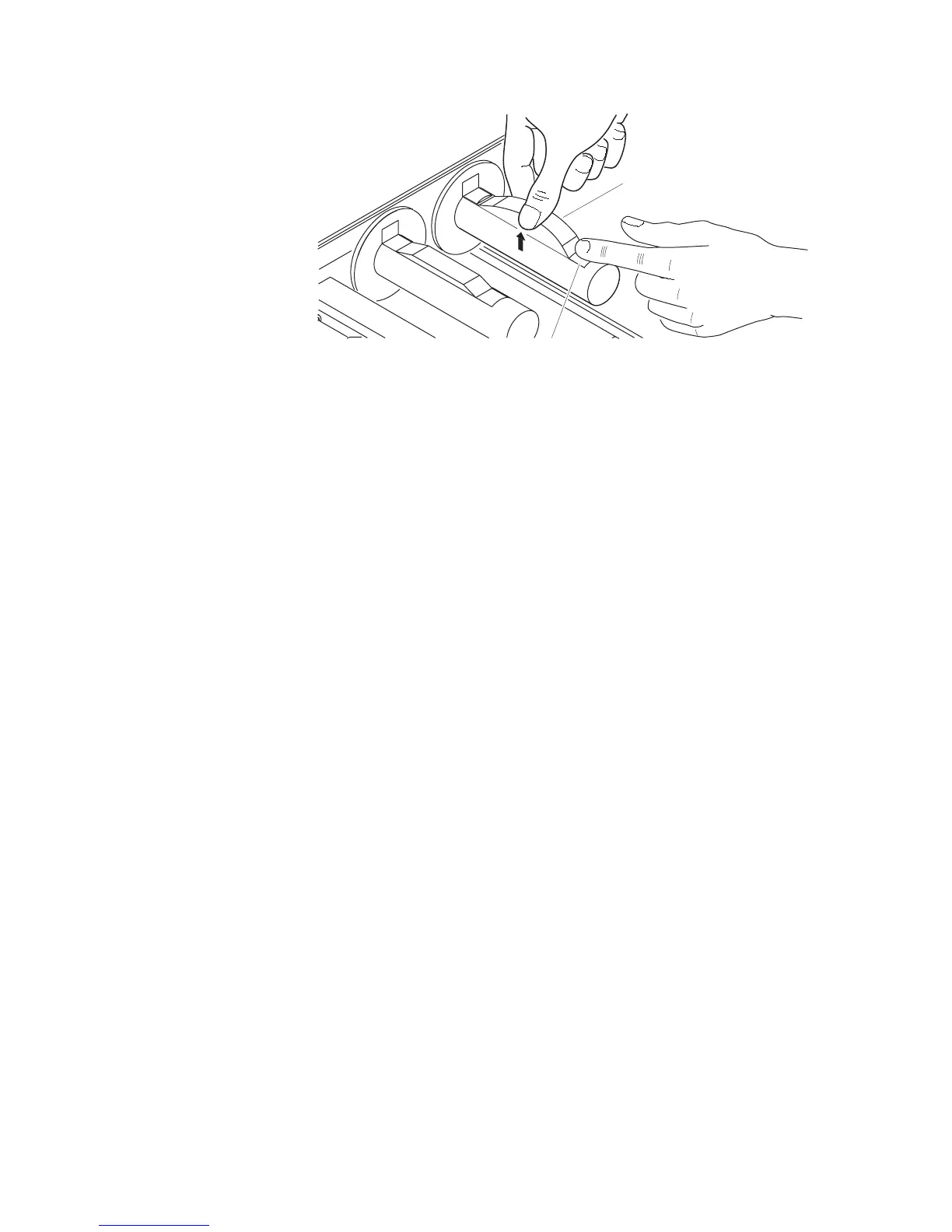

44XXU029.eps
Core-locking
bracket
Bracket slot
2 Remove the other end of the bracket from the ribbon hub.
3 Slide one end of the plastic core-locking bracket (P/N 066792) into a
bracket slot on the ribbon hub.
4 Lift up on the middle of the bracket and use your index finger to slide
the other end of the bracket into the remaining bracket slot on the
ribbon hub.
To load thermal transfer ribbon
1 Raise the printhead by rotating the head lift lever clockwise until the
printhead disengages.
2 Place the empty ribbon core that came with the printer onto the ribbon
rewind hub.
3 Detach the leader from the new thermal transfer ribbon roll and unwind
the end of the ribbon approximately 20.32 centimeters (8 inches). The
edge of the ribbon has a leader (with an adhesive strip on the leader
edge) for guiding the ribbon through the printhead mechanism.
4 Slide the roll of thermal transfer ribbon onto the ribbon supply hub
with the ribbon roll winding clockwise.
