Intermec EasyCoder F4 – Installation & Operation Ed. 3 101
Appendix 2 Media Specifi cations
⇐ a ⇒ Media Width (including liner):
Maximum: 114.3 mm (4.50 inches)
Minimum (standard): 25.0 mm (1.00 inches)
Minimum (narrow Quick-Load): 40.0 mm (1.57 inches)
Minimum (wide Quick-Load): 80.0 mm (3.15 inches)
⇐ b ⇒ Liner
The liner must not extend more than a total of 1.6 mm (0.06
inches) outside the labels and should protrude equally on both side.
Recommended min. transparency: 40% (DIN 53147).
⇐ c ⇒ Label Width (excluding liner):
Maximum: 112.7 mm (4.43 inches)
Minimum: 23.8 mm (0.94 inches)
⇐ d ⇒ Label Length:
Maximum: depends on DRAM size
Minimum: 8.0 mm (0.32 inches)
Under ideal circumstances, a minimum label length of 4 mm (0.16
inches) could be used. It requires the sum of the label length (d) and
the label gap (e) to be larger than 7 mm (0.28 inches), that batch
printing is used, and that no pull back of the paper is performed.
Intermec does not guarantee that such short labels will work, but it
is up to the user to test this in his unique application.
⇐ e ⇒ Label Gap:
Maximum: 21.3 mm (0.83 inches)
Recommended: 3.0 mm (0.12 inches)
Minimum: 1.2 mm (0.05 inches)
The Label Stop Sensor must be able to detect the extreme front
edges of the labels. It can be moved between 5 fi xed positions at the
following distances from the inner edge of the media.
3 mm (0.118 inches)
8 mm (0.315 inches)
12 mm (0.472 inches)
16 mm (0.639 inches)
20 mm (0.787 inches)
Media Type Setup:
• Label (w gaps)
Self-Adhesive Labels
Media, cont.

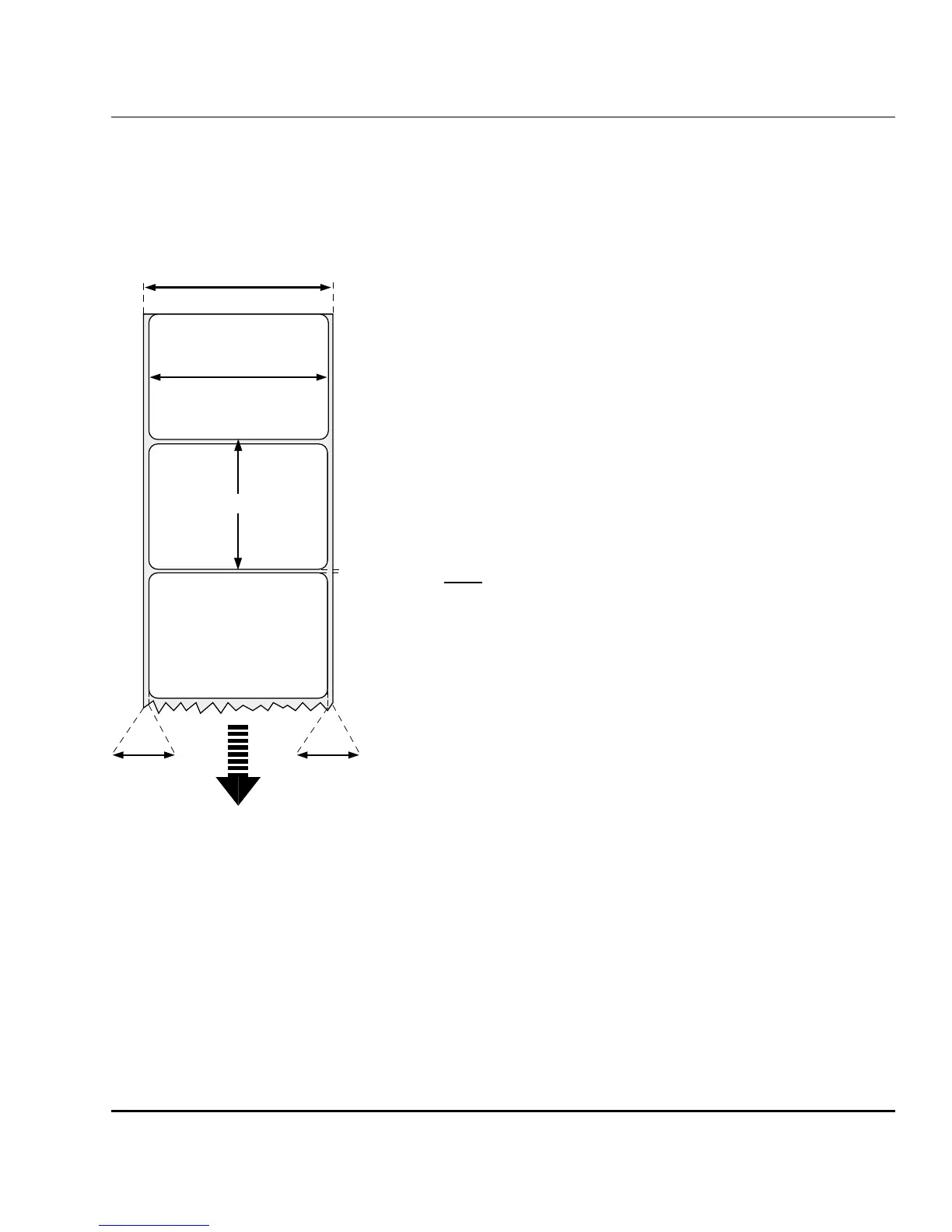

a
b
c
e
SELF-ADHESIVE
LABELS
b
d
FEED
DIRECTION
