Intermec EasyCoder F4 – Installation & Operation Ed. 3 71
Chapter 9 Intermec Shell Startup Program

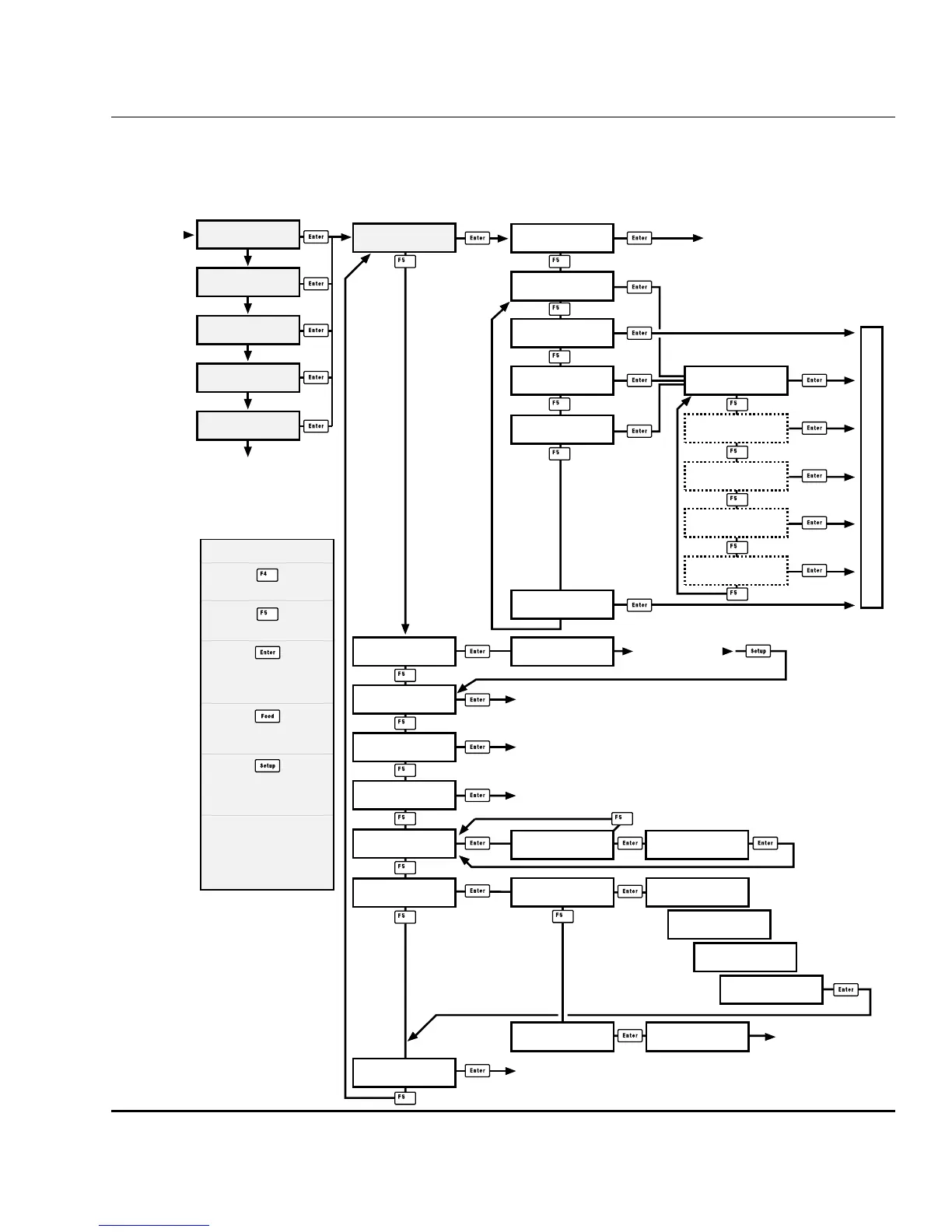

Intermec Shell v4.4 Overview
SHELL
TEST LABEL
SHELL
TESTFEED
SHELL
DEFAULT SETUP
Performs a Testfeed, i.e. feeds out a number of blank copies
while autoadjusting the label stop sensor.
Prints test labels #1 – #4 in a loop.
Press Enter for each new label.
SHELL
REBOOT
Restarts the printer (same as power off/on)
Printer rebooted
automatically
STD I/O CHANNEL
UART1
STD I/O CHANNEL
UART2
STD I/O CHANNEL
UART3
SEL. APPLICATION
Fingerprint 7.40
SHELL
SETUP
See “Setup Mode”
Prints a list of current setup values (test label #5).
Note 1: Dotted options are only shown if
an appropriate optional interface pcb is fitted.
The Windows driver option requires an
optional parallel interface pcb.
See note 1
See note 1
SHELL
PRINT SETUP
SEL. APPLICATION
WINDOWS DRIVER
ENTER=SHELL
5 sec. v.4.4
ENTER=SHELL
4 sec. v.4.4
ENTER=SHELL
3 sec. v.4.4
ENTER=SHELL
2 sec. v.4.4
ENTER=SHELL
1 sec. v.4.4
Last selected
application is started
Default:
Fingerprint 7.40 w. std I/O = "uart1:"
Last selected application is started
The selected application is started
POWER ON
Return to previous menu.
Proceed to next menu.
Accept displayed option
and proceed, or
execute displayed option.
Perform a Testfeed
anywhere in Intermec Shell.
Enter the Setup Mode
from anywhere
in Intermec Shell.
Legend:
SHELL
SEL. APPLICATION
SEL. APPLICATION
Direct Protocol
SEL.APPL rom:
LINE_AXP.PRG
SETUP:
SER-COM,UART1
SEL. APPLICATION
LABELSHOP
SEL. APPLICATION
CURRENT APPL.
Enter Terminal Setup
by transmitting T T T
or t t t to printer,
when menus marked with a
shade of grey are displayed!
ARE YOU SURE ?
Y=ENTER/ N=F5
DEFAULT SETUP
PERFORMED
SHELL
SOFTWARE UPDATE
UPDATE:
PC-CARD?
UPDATE:
FIRMWARE
PC-CARD ERASE
TRANSFER FILE
USING ZMODEM
PROGRAMMING
PC-CARD
PROGRAMMING
COMPLETED
TRANSFER FILE
USING ZMODEM
STD I/O CHANNEL
CENTRONICS
See note 1
STD I/O CHANNEL
net1:
See note 1
