Intermec EasyCoder F4
–
Installation & Operation Ed. 3
11
4
Appendix 4

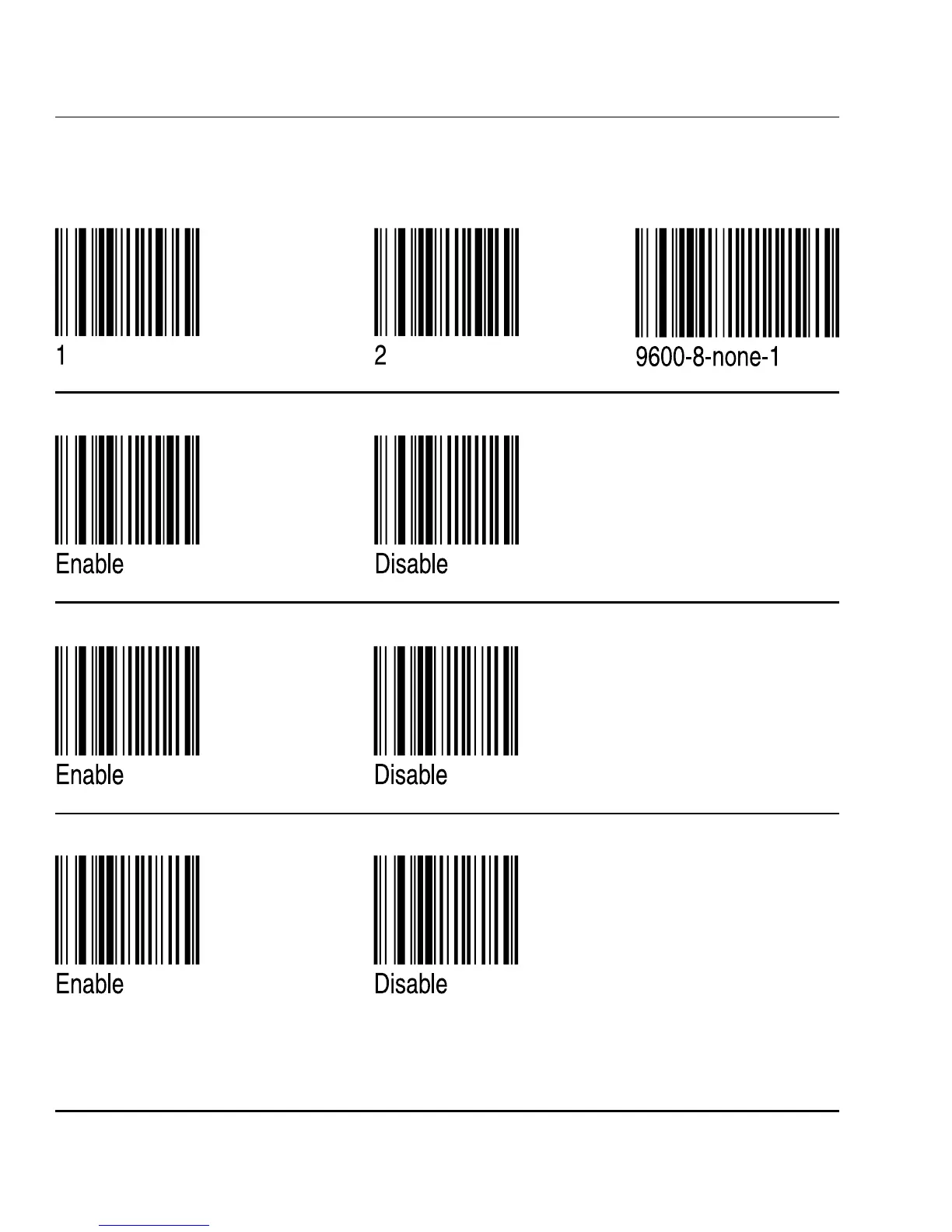

EasySet Bar Code W
and Setup
Serial Communication on "uart1:", cont.
No. of Stop Bits
RTS/CTS
XON/XOFF
, Data to Host
Reset comm. to default
ENQ/ACK
114
116
