Intermec EasyCoder F4 – Installation & Operation Ed. 330
Chapter 5 Media Load
5
Tear-Off, cont.

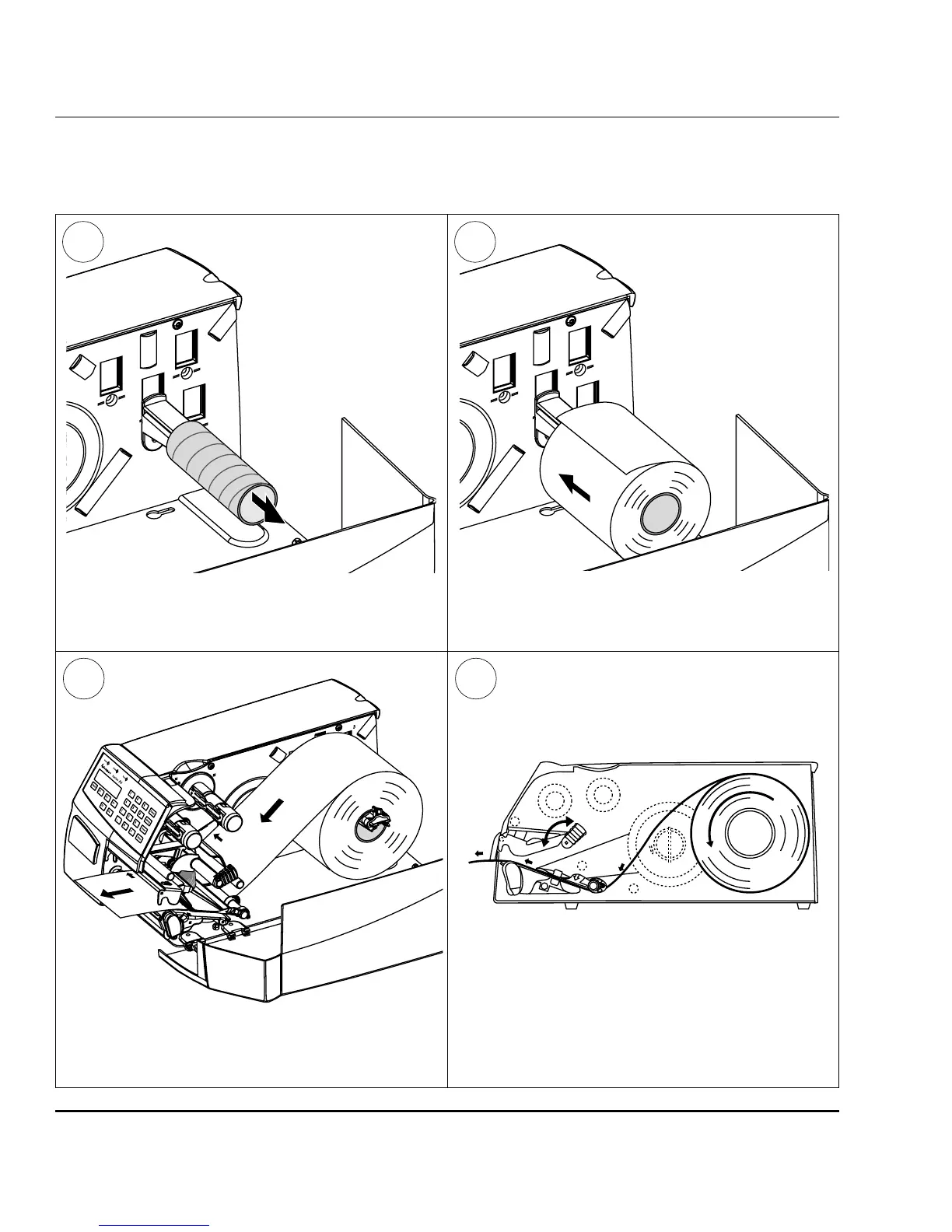

Remove any empty core from the media supply
roll post.
43
6
Route the media through the print mechanism.
Then push it inwards as far as it will go. This diagram shows the media path.
Fit a new roll of media on the supply post and
adjust the edge guide so the roll becomes fl ush
with the center section.
2
1
4
3
2
1
4
3
