Intermec EasyCoder F4 User Manual

Intermec EasyCoder F4 – Installation & Operation Ed. 3 37
Chapter 5 Media Load
Peel-Off, cont.

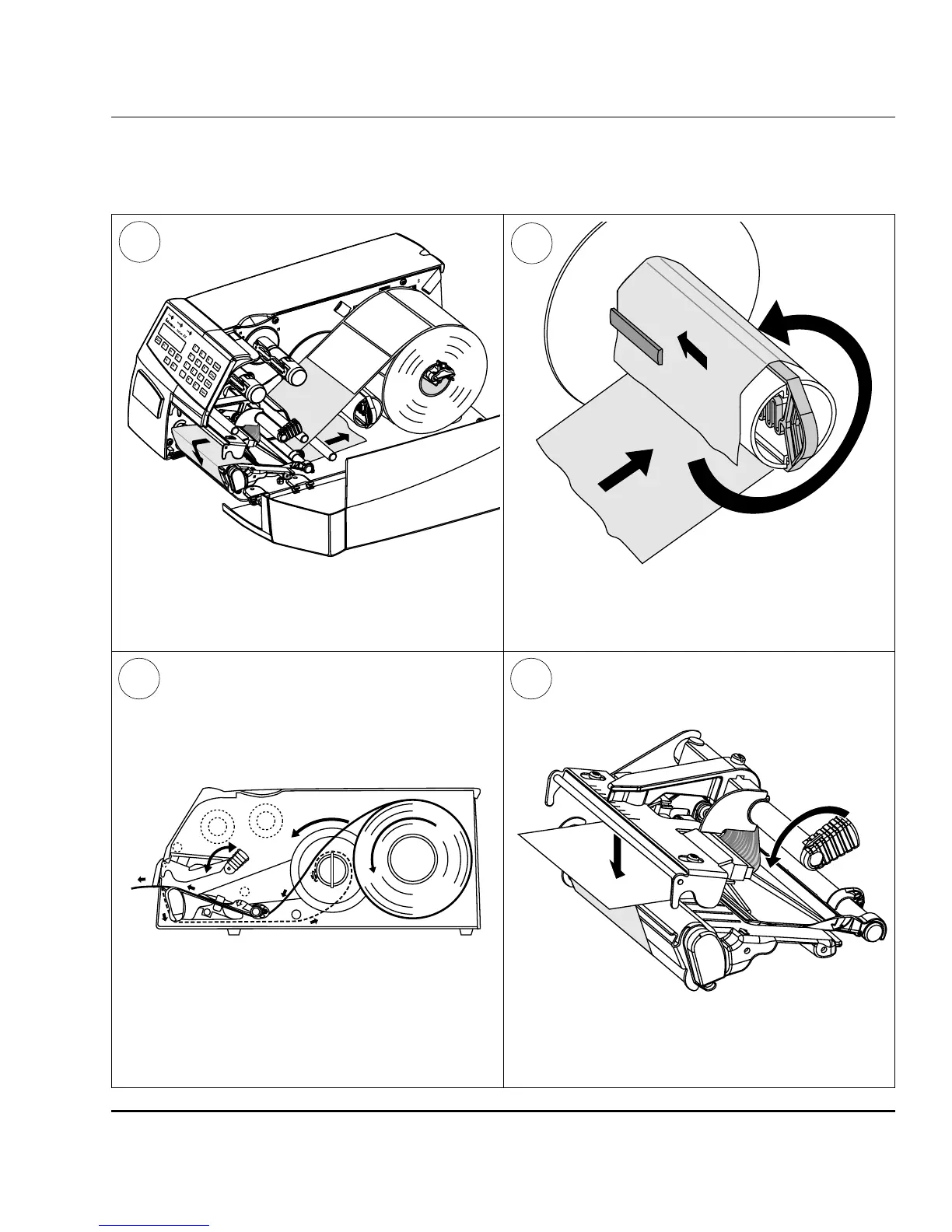

Route the liner around the tear bar and the
liner drive roller and back under the print
mechanism and guide shaft.
Insert the start of the liner under the lip of the
takeup hub, then rotate the hub counterclock-
wise a few turns to wind up some of the liner.
7
8
This diagram shows the media and liner paths.
9 10
Turn the printhead lift lever counterclockwise
to engage the printhead
