Chapter 1 — Using the Printer
PX4i and PX6i High Performance Printer User’s Manual 33

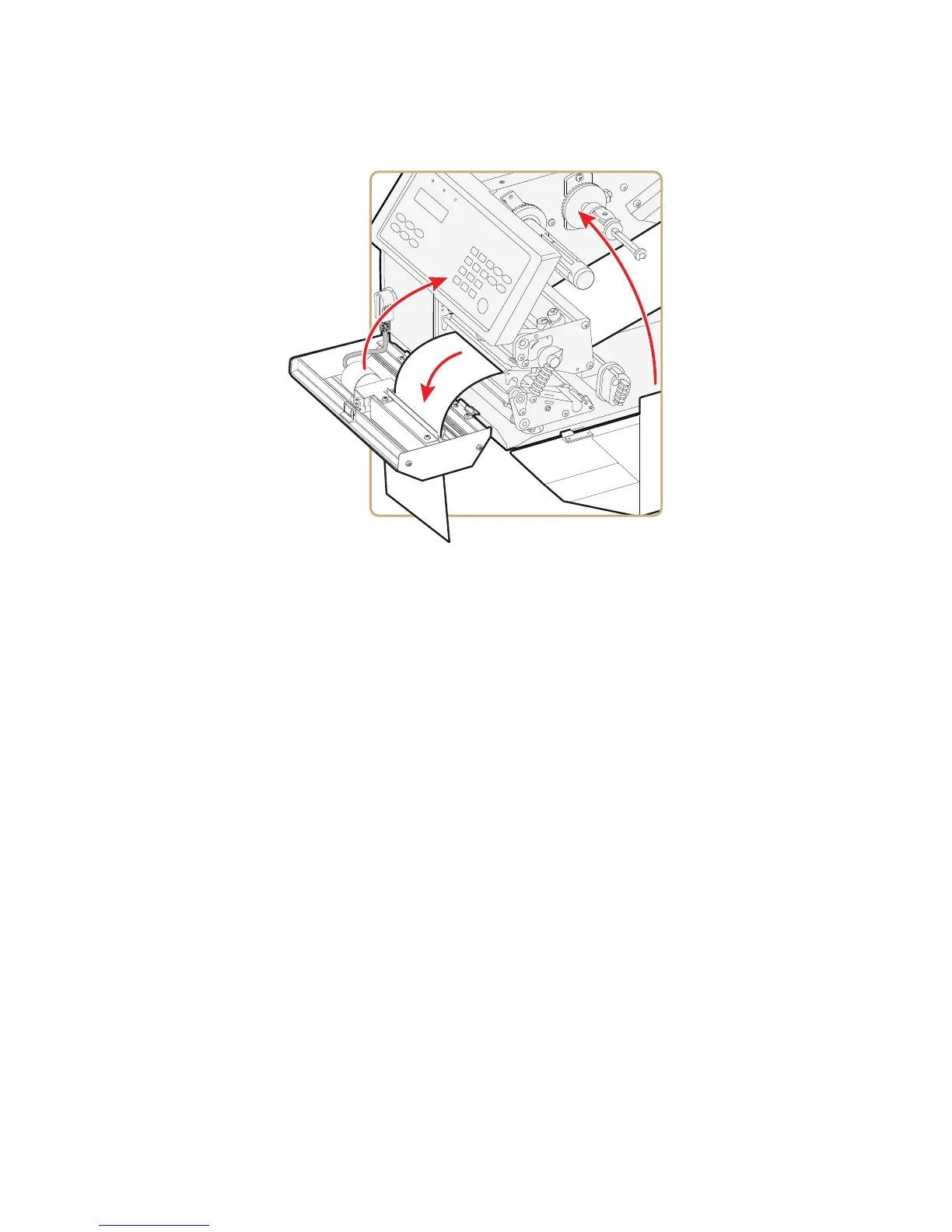

14 Close the cutter while pulling on the end of the media.
15 Close the media cover and then turn on the power.
16 Press F to advance the media and adjust the media feed.
Loading Media for Internal Batch Takeup Printing
In batch takeup mode, printed labels fitted on liner (backing paper) or
pre-perforated tickets and tags are wound up inside the printer. The
roll of printed labels, tickets, or tags can then be removed.
Batch takeup printing requires the optional factory-installed internal
liner/batch takeup accessory. The takeup hub can accommodate 30 to
40% of a full-size media roll.
Internal batch takeup can be used for these types of media:
• Self-adhesive labels fitted on liner
• Pre-perforated tickets with gaps
• Pre-perforated tickets with marks
