13
In - Dash Mounting
The iScan 180 comes with mounting hardware to mount the
display in-dash. Four mounting screws and a cutout diagram
are included.
For in-dash mounting, the mounting base portion of the Quick
Disconnect Mount is removed. To remove the mounting base
loosen the thumb screw until it seperates from the upper
portion of the Quick Disconnect Mount.

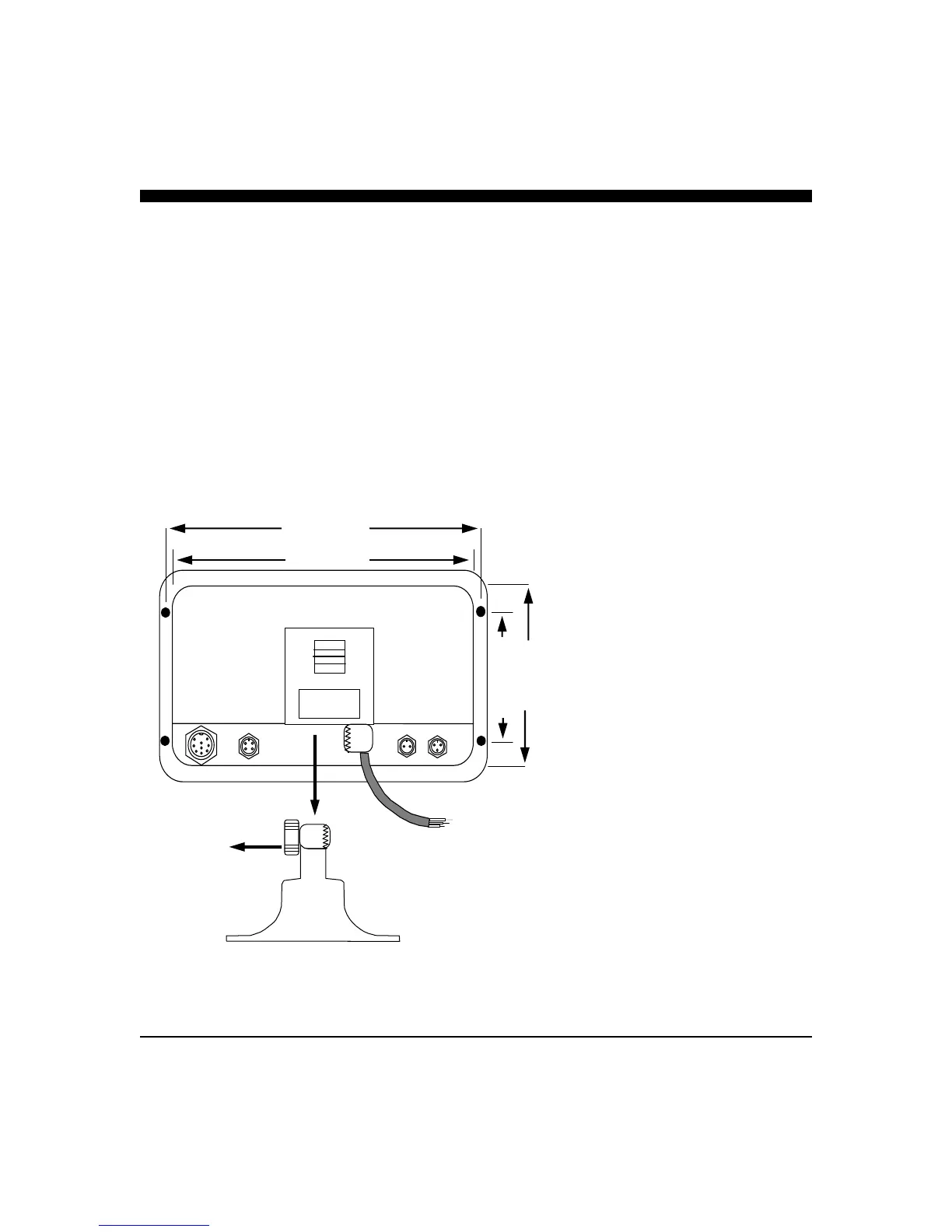

While the cutout is included, dimensions of the cutout and
pilot holes has been included in the drawing below.
Loosen to remove
8.3” [211mm]
8.7” [220mm]
3.9” [100mm]
5” [126mm
