Interphase 180 - Specifications; Transducer Configuration

36
Display Type: 480 x 234 pixels, Sunlight Color Active Matrix LCD
Depth Ranges: Depth ranges, 0 - 25 to 0 - 600feet
Forward Ranges: Forward ranges, 0 - 50 to 0 - 1,200 feet
Transmit Frequency: 200 kHz
Transmite Power: Approx. 437 RMS or 3,500 peak-to-peak Watts
Transmit Beam Angle: Approx. 12 degrees
Pulselength & Sounding Rates: Automatically optimized for selected range.
Power Requirements: 11 to 16 VDC, less than 1.2Amp.
Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
NMEA 0183 Inputs: GLL, VTG, MTW
NMEA 0183 Output DBT, DPT
Dimensions: 9.5”W x 5.9”H x 3.25”D
Standard Equipment: Display with protective cover, Quick Disconnect Mounting Bracket with
Power/IO cable, in-line fuse, Operation Manual, 2 Scanning Transducers
(port/starboard) with 30’ cables, 10ft 9-Pin Master Dispaly Cable,
10ft 4-Pin Master Control Cable, and Auto Switch Module (black box).
Specifications
Transducer specifications subject to change without notice.
STARBOARD Vertical Scanning and
Horizontal Starboard Scanning Transducer
Part # T1-I200-036
PORT Horizontal
Port Scanning Transducer
Part# T1-I200-35


Transducer Fairing Blocks included with iScan 180

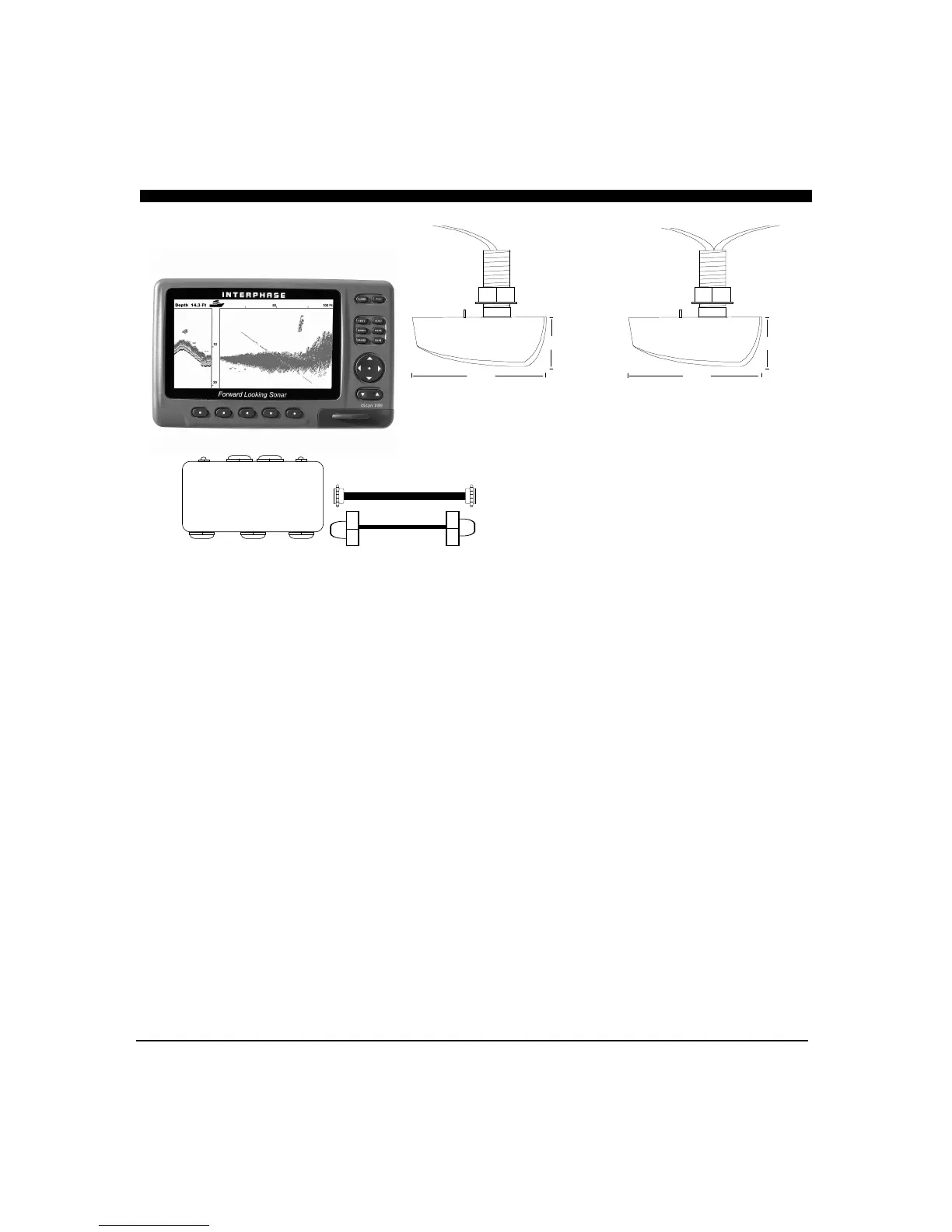

iScan 180 Transducer Configuration
Auto Switch
Module
10’ 9-Pin Master Display Cable - Part# 04-0014-010
10’ 4-Pin Master Control Cable - Part# 04-1054-000


