Interphase 180 - Video Input & Output

25
Use the NAV or UP/DOWN buttons to adjust the beam
sector size and then use the NAV left





right buttons to
adjust the resulting sector direction. Press the softkey
button below the EXIT symbol to save the setting and exit,
or press the button below the CLEAR symbol to disable
(reset) the BEAM adjustment and exit.
A good example of the use of the beam adjustment is when
cruising in deep water where the desired scanning area is
close to the surface (looking for obstructions, etc). In this
situation you could reduce the size of the scanning sector
and then steer it up to the surface. This would result in the
desired coverage but with a much faster scanning speed.
See diagram at bottom of previous page.
Video Input & Output

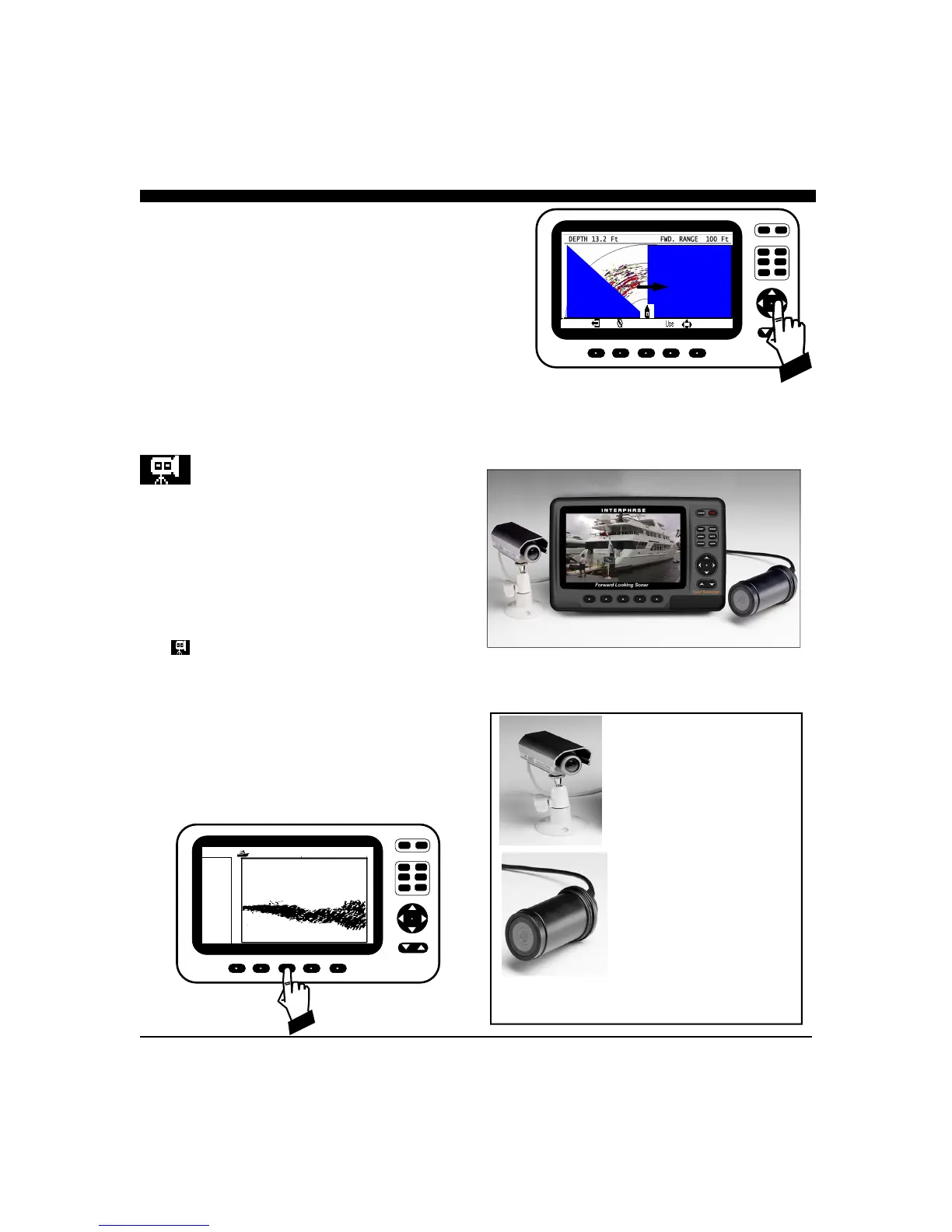

The iScan 180 has a 3-pin video input connector on the rear
panel. You can connect video cameras, VCR, DVD and
other sources of NTSC OR PAL signals to this connector
and view them in a full-screen format on the iScan 180’s
display. If more than one camera or video input is required,
you can use a video switch to choose between several video
signals.
Pressing the softkey button below the VIDEO CAMERA
icon will switch the video signal to the display.
When the VIDEO selection is ON, pressing any of the 4
outer softkey buttons will turn it OFF and the display will
return to the sonar mode.
The iScan 180 has a 2-pin video output connector on the
rear panel. This will output video in the NTSC format. This
is ideal for larger monitors or combining instrumentation.
TIP: For best results on the video output, set the display to
the SUNLIGHT mode.
CURSR
VERT
HORIZ
DOWN
DATA
RANGE
GAIN
PWR
FORWARD LOOKING SONAR

Use NAV 





buttons to steer beam sector
Interphase View Cam
Color CCD camera.
Water-resistant. Complete
with 30’ cable.
(P/N # 84-6100-000)
Interphase FishCam
Color CCD camera.
Waterproof face. Designed
to fit in thru-hull fitting.
Complete with 30’ cable
(P/N # 84-6000-000)
Thur-Hull Housing Kit
(P/N # 84-6200-000)
Blanking Plug for above
(P/N #17-0061-000)
CURSR
VERT
HORIZ
DOWN
DATA
RANGE
GAIN
PWR
FORWARD LOOKING SONAR

13.2 Ft
18
37
25
12.5
22.4 KTS
72.6 F
36:52.951 N
121:58.05W
Press 2X to activate Video
