NMEA Inputs (Position, Speed & Temp)
The iScan 180 has two independent serial NMEA input
ports. One can be used to connect to a source of lat/lon
position and speed data (i.e., GPS), and the other can be
connected to a source of temperature and speed data.
An external GPS should be connected between the White
(+) and Green(-) wires in the power and I/O cable from the
Quick Disconnect Mount, and the Temperature and Speed
source should be connected between the Brown(+) and
Green(-) wires.
The iScan 180 looks for the following NMEA 0183 V2.0
sentences to get information on positon, speed and
temperature.
GLL ( Lat/Lon Postion)
VTG (Speed over the ground)
MTW (Temperature)
NMEA Depth Output

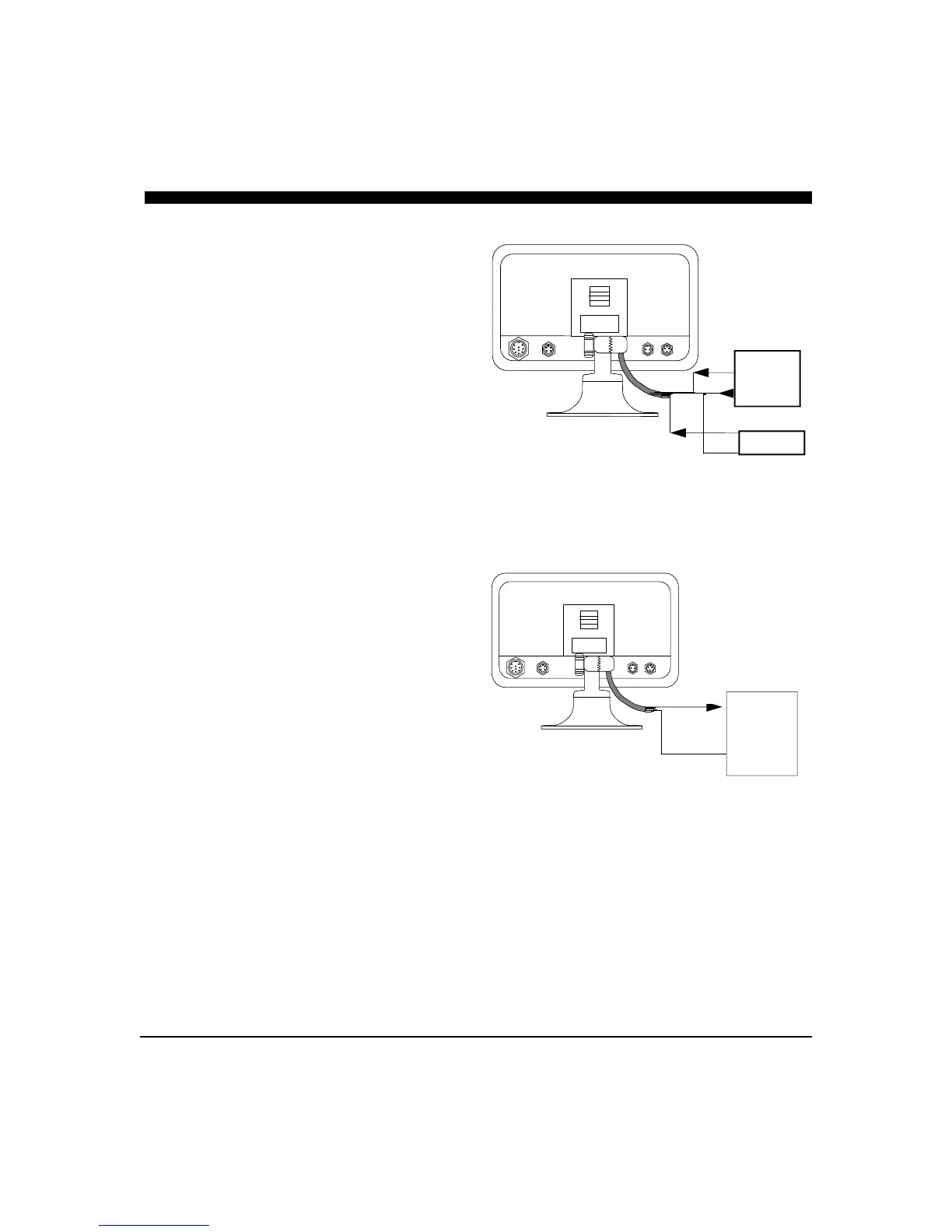

NMEA 0183 depth information is sent out on the Yellow
(+) and Green(-) wires. See the sketch at right showing
the wiring for the NMEA output port.
The iScan 180 sends out the following NMEA 0183 V2.0
sentences with the digital depth data..
DPT, DBT
Green (-)
NMEA
DEPTH
OUTPUT
Green(-)
White(+)
GPS
(Lat/Lon
& Speed)
TEMP
Brown(+)
Yellow (+)
