RollerDrive EC310
Product information

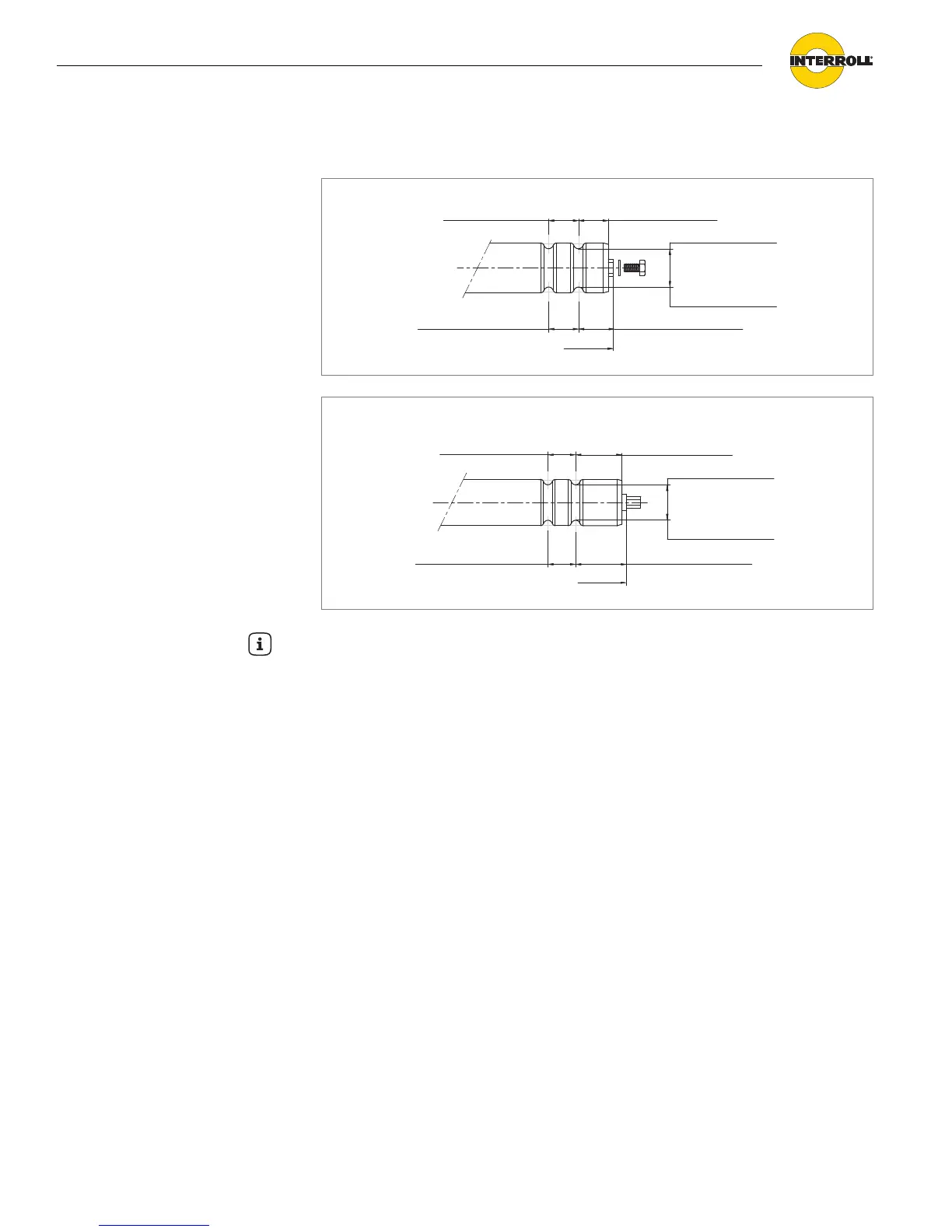

Arrangement of Round Belt Grooves
IGM8 female thread shaft pin,
single bearing
Spring-loaded hex, double
bearing
Conical RollerDrives
For conical RollerDrives there must be an 1.8° angle compensation on both end
to avoid bending forces on the RollerDrive.
min. 30 mm (1.2 in)
min. 22 mm (0.87 in)
for tube diameter 50 mm
for tube diameter 1.9 in
min. 31.75 mm (1.25 in) min. 31.75 mm (1.25 in)
ø38.4 mm (1.51 in)
ø38.1 mm (1.5 in)
%)(/
min. 22 mm (0.87 in)
for tube diameter 50 mm
for tube diameter 1.9 in
min. 31.75 mm (1.25 in)
min. 50 mm (1.9 in)
min. 54.6 mm (2.15 in)
←
ø38.4 mm (1.51 in)
ø38.1 mm (1.5 in)
%)(/
Hint
Other tube groove arrangements are possible.
