22
Version 2.1 (08/2013) en
Translation of the original instructions
RollerDrive EC310
Assembly

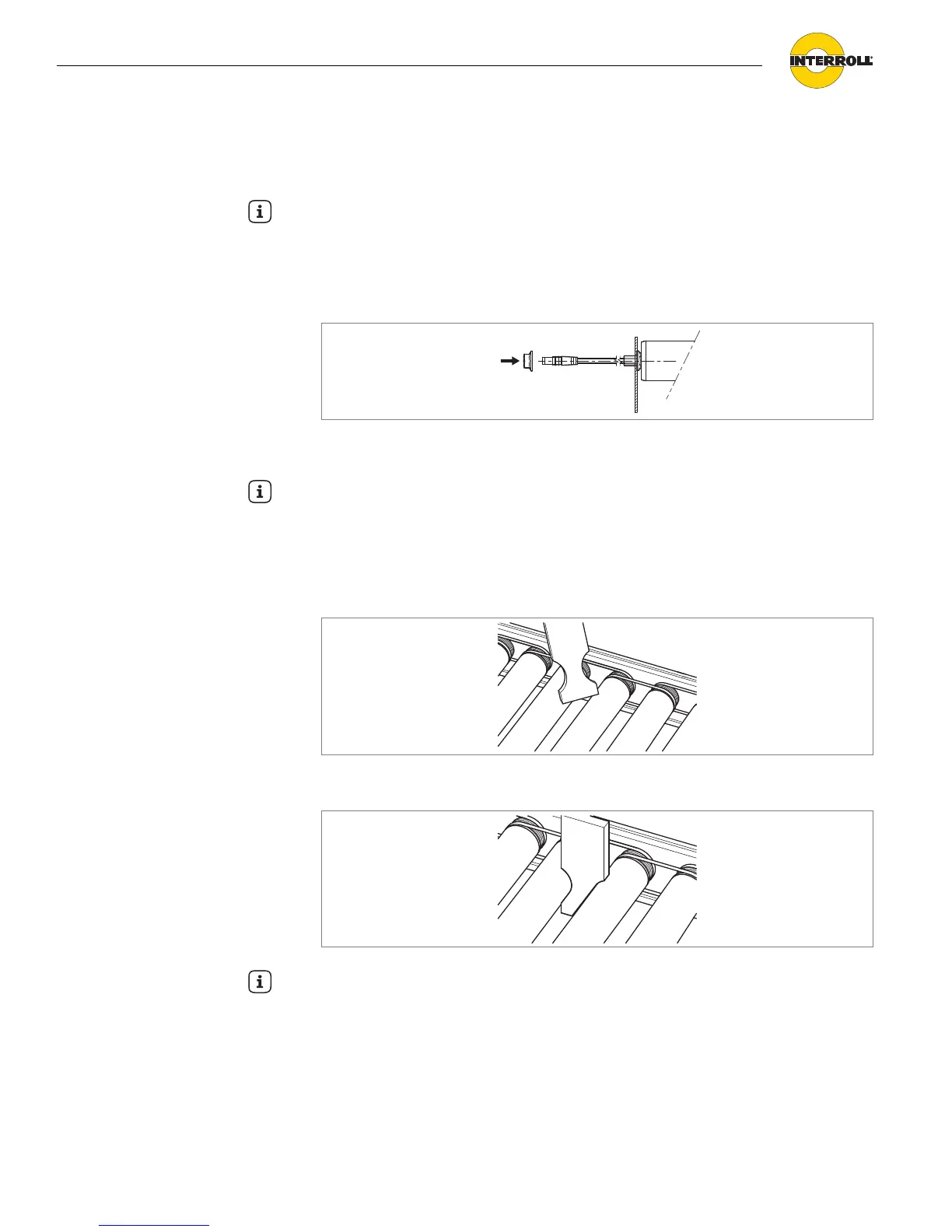

Securing the RollerDrive in
the conveyor frame
There is a nut on the shaft next to the tube. This inner nut has been
preassembled and secured in the correct position.
Use a flat wrench AF 17 mm to prevent the inner nut from turning. Use a
wrench AF 36 mm with the IP66 configuration.
Slip the nut included in the scope of supply over the motor cable and screw
onto the threaded motor shaft.
Use a torque wrench to tighten this nut with 70 Nm (619 in/lbf) while ensuring
that the inner nut is not rotating.
Mounting tool
For mounting the PolyVee belt, you may want to build a mounting tool as shown
in the figure below.
Place the mounting tool between two rollers to reduce the gap between the
adjacent rollers.
Electrical Installation
If the recommended DriveControl (see "DriveControls for the RollerDrive
EC310", page 11) is used, connect the motor plug to the DriveControl.
If the DriveControl is not used, connect your control to the motor plug (refer to
see "Motor plug", page 13 for the pin assignment)
Hint
Do not twist the inner nut.
Hint
An angular compensation on the motor end is needed to prevent bending forces
on conical RollerDrives.
Hint
Dimensions of the mounting tool depend on the roller pitch and the roller tube
diameter.
