14

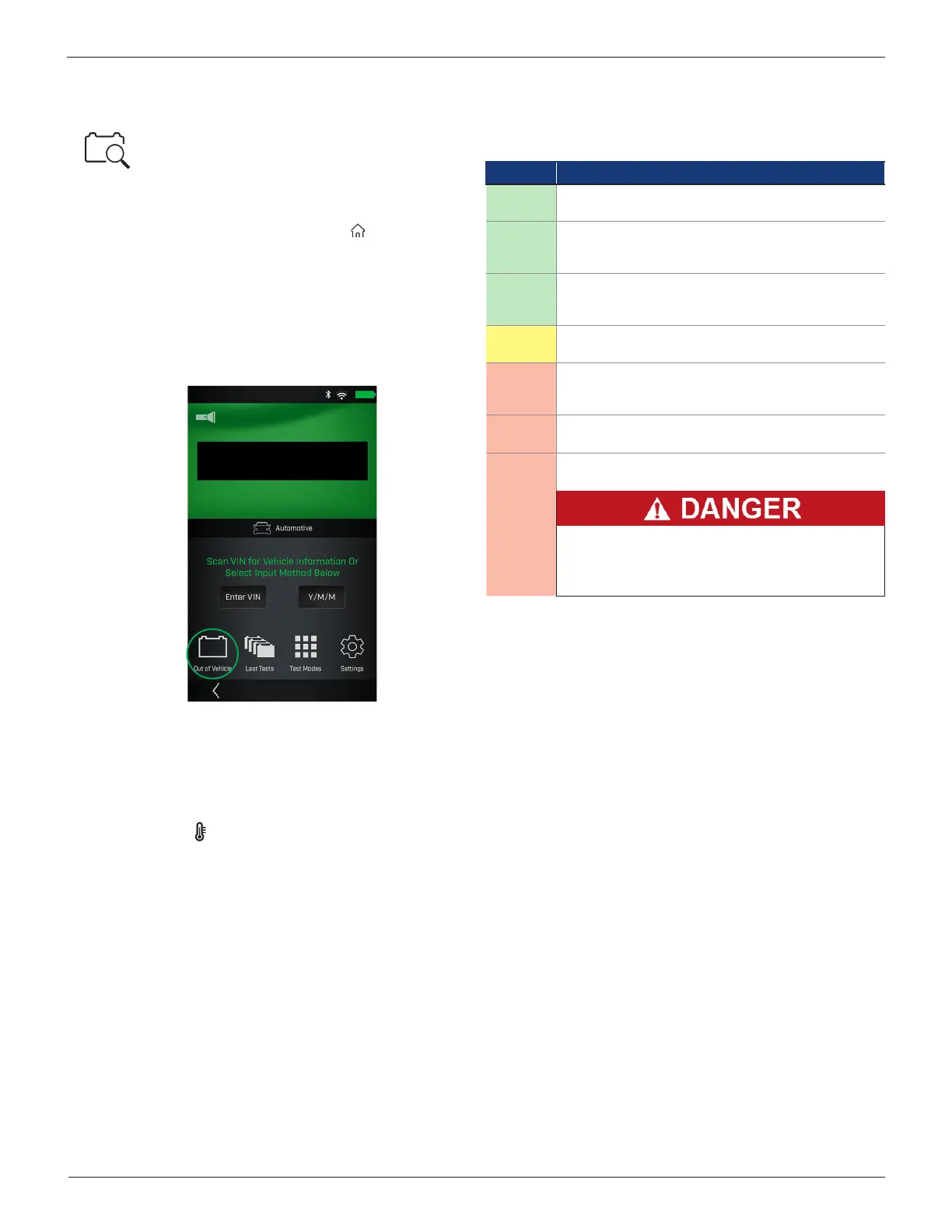

3 – Out Of Vehicle Test
IB Pulse
Out Of
Vehicle
Use Out Of Vehicle Test to perform tests on
batteries disconnected and/or removed from a
vehicle, using test parameters determined by
the scanned barcode on the battery. Battery
parameters can also be entered manually.
Select
<
to return to the previous screen or to return to the
Main Menu at any time during the test.
Battery Test
1. Connect the IB Pulse tester clamps to the battery terminals.
2. At the Home Screen, select a User from the displayed list.
3. At the main testing screen select the Out of Vehicle icon.
4. Scan the battery barcode. The battery temperature is mea-
sured at the same time.
If a battery barcode is not available, tap Manual Entry to
enter the Battery Units, Rating, Type, and Post Location.
If prompted, capture the battery temperature by holding
the sensor on back of tester 6 to 12 inches from battery
surface and tap .
The test begins once the battery temperature is captured.
Battery Test Decisions
Decision Description
Good
Battery
The battery is in good condition. Recommend retesting
the battery in 90 days or at next service opportunity.
Good
Recharge
Battery good, but low on charge. Fully charge for
optimal performance and life. Check for causes of low
charge.
Good –
Recheck
Soon
The battery performance has started to decline and may
fail to start the vehicle. Consider replacing the battery
before it is exposed to temperature extremes.
Charge &
Retest
State of charge too low for diagnosis. Fully charge &
retest.
Replace
Battery
Battery no longer meets minimum standards &
replacement is recommended. It is likely to fail soon,
especially if exposed to temperature extremes.
Frozen
Battery
Completely thaw battery
before retesting, charging
or
starting the vehicle. See Danger warning below.
Bad Cell –
Replace
Bad cell detected. Replace immediately. See Danger
warning below.
Risk of explosive gases. Can cause death or
serious personal injury.
Never attempt to charge a frozen battery or a bat-
tery
with a bad cell. The battery must be replaced.
3 – Out Of Vehicle Test
