11
2 – VIN Scan In Vehicle TestingIB Pulse

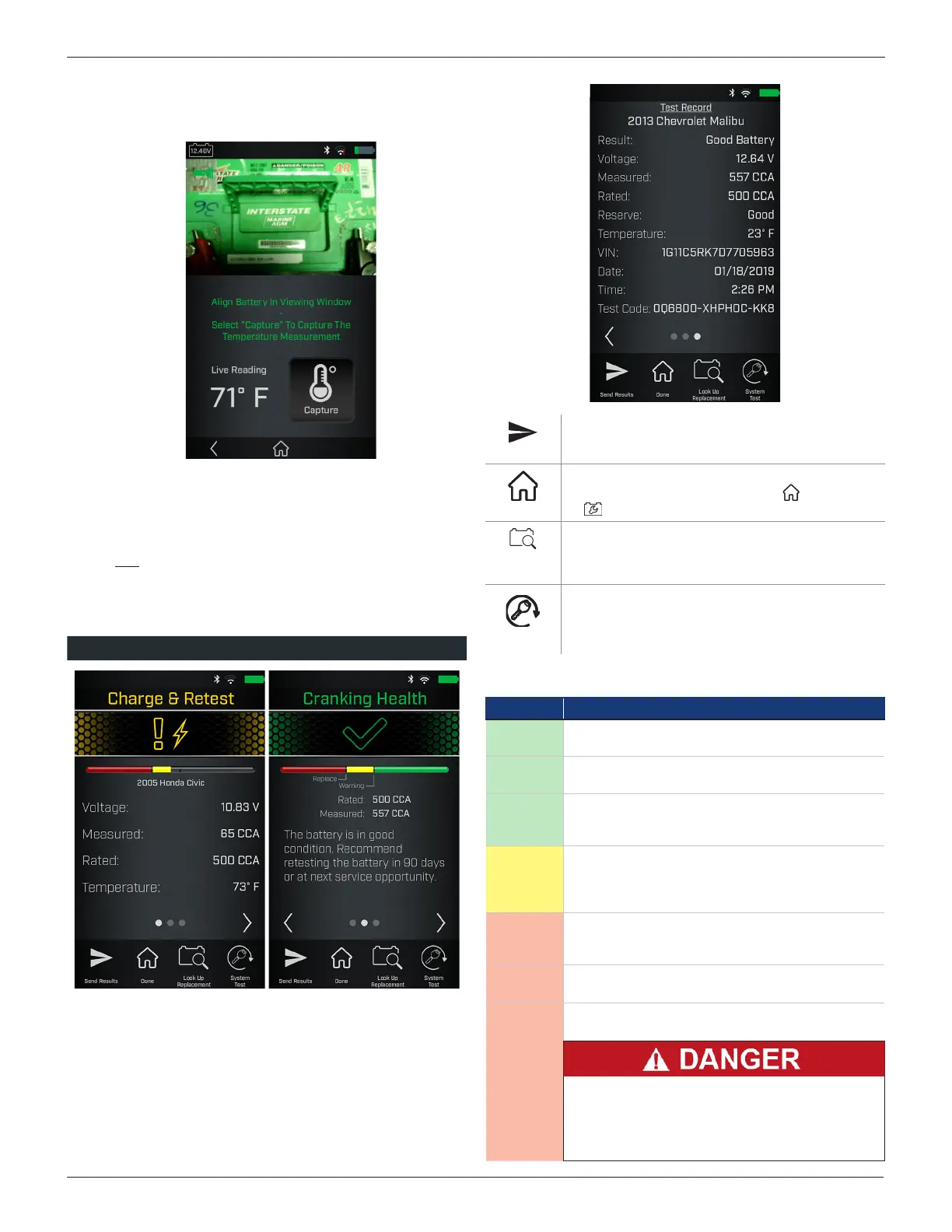

Align the battery within the camera view window and hold
the sensor on back of tester 6 to 12 inches from battery
surface.
10. Tap Capture to capture the live reading temperature and
begin the test.
Battery Test Results
Use
<
and
>
to view the battery test results, cranking health,
and the test record for the vehicle tested.
The dots at the bottom of the results screen indicate additional
screens are available. Use
<
or
>
to move between screens.
Screen 1 Screen 2 Screen 3
Send Results
Via email or through a congured printer.
Done
Exit the test and return to the Home Screen. For
Replace Battery decisions, select to continue
or to access the Reset Electronics checklist.
Look Up
Replacement
Select to display recommended replacement
batteries.
System Test
Continue to the System Test.
Battery Decisions
Decision Description
Good
Battery
The battery is in good condition. Recommend retesting
the battery in 90 days or at next service opportunity.
Good
Recharge
Battery good, but low on charge. Fully charge for optimal
performance and life. Check for causes of low charge.
Good -
Recheck
Soon
The battery performance has started to decline and
may fail to start the vehicle. Consider replacing the
battery before it is exposed to temperature extremes.
Charge
& Retest
(Analysis
Unavailable)
State of charge too low for diagnosis. Fully charge &
retest.
Replace
Battery
Battery no longer meets minimum standards &
replacement is recommended. It is likely to fail soon,
especially if exposed to temperature extremes.
Frozen
Battery
Completely thaw battery
before retesting, charging
or
starting the vehicle. See Danger warning below.
Bad Cell –
Replace
Bad cell detected. Replace immediately. See Danger
warning below.
Risk of explosive gases. Can cause death or
serious personal injury.
Never attempt to charge a frozen battery or a
battery
with a bad cell. The battery must be
replaced.
