3. Before Starting the Installation
36
Gigabit ETH cable for service Traffic, Inband Management
and Powering
, Continued
Cabling
overview using
DC PoNE,
continued

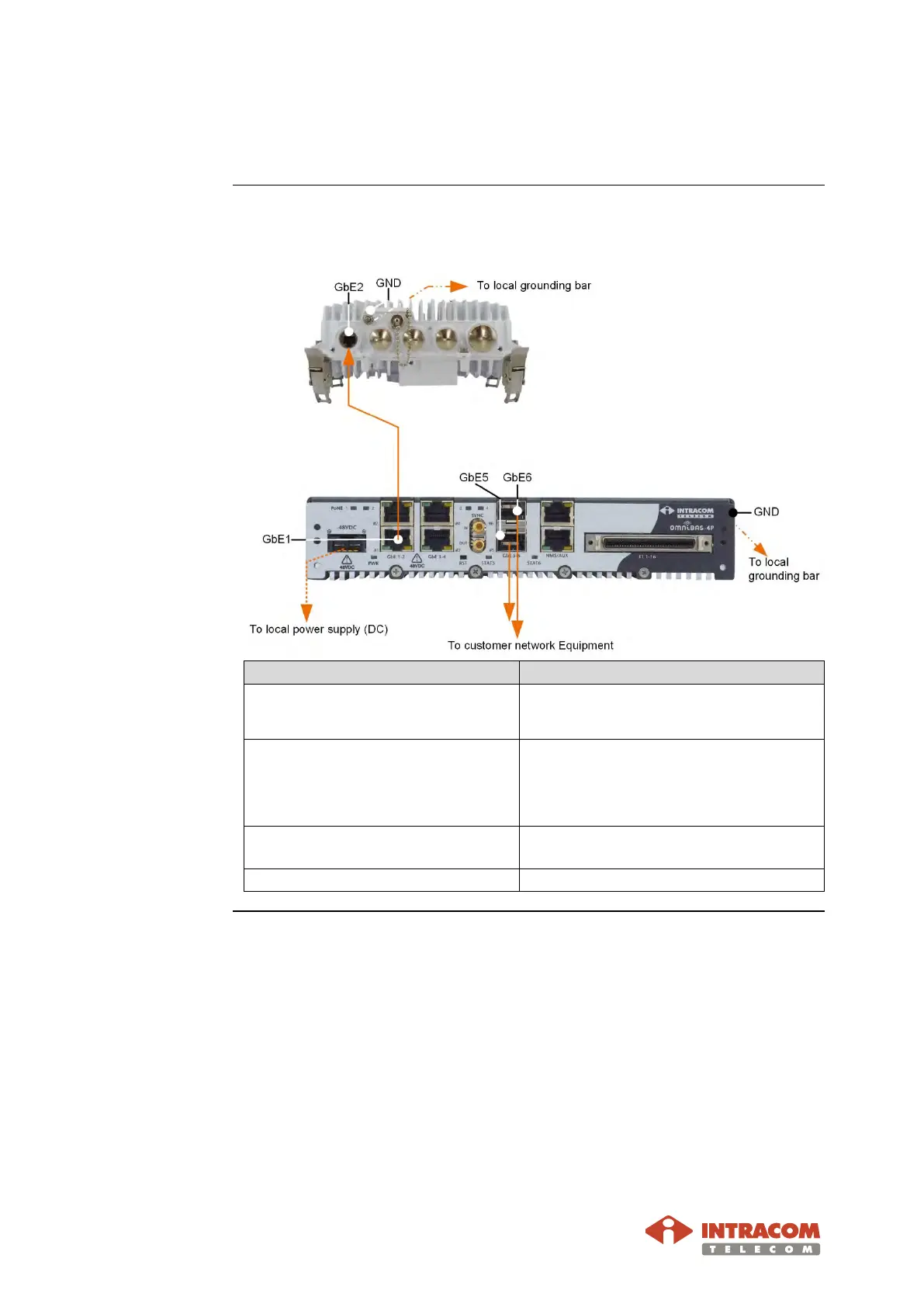

The following schematic shows a cabling overview of OSDR radio unit when
powering is through an indoor OmniBAS
TM
4P:
Marking
Cable Type
GbE#1 (OmniBAS
TM
-4P) and
GbE#2
Gigabit Ethernet (S-FTP) cable for traffic,
inband management and superimposed DC
power.
GbE#5, 6 Gigabit Ethernet (S-FTP) cable with Gigabit
Ethernet Electrical SFP module or Fiber Optic
cable with Optical SFP module for providing
traffic and inband management to customer
network equipment.
GND Grounding cable 16 mm
2
for radio unit and
4 mm
2
for OmniBAS
TM
– 4W/8W.
-48VDC OmniBAS
TM
– 4P DC power supply cable.
