Outdoor Software Defined Radio (OSDR) platform
Installation & Cabling Manual - Edition 3.0
35
Gigabit ETH cable for service Traffic, Inband Management
and Powering
, Continued
Cabling
overview using
DC PoNE,
continued

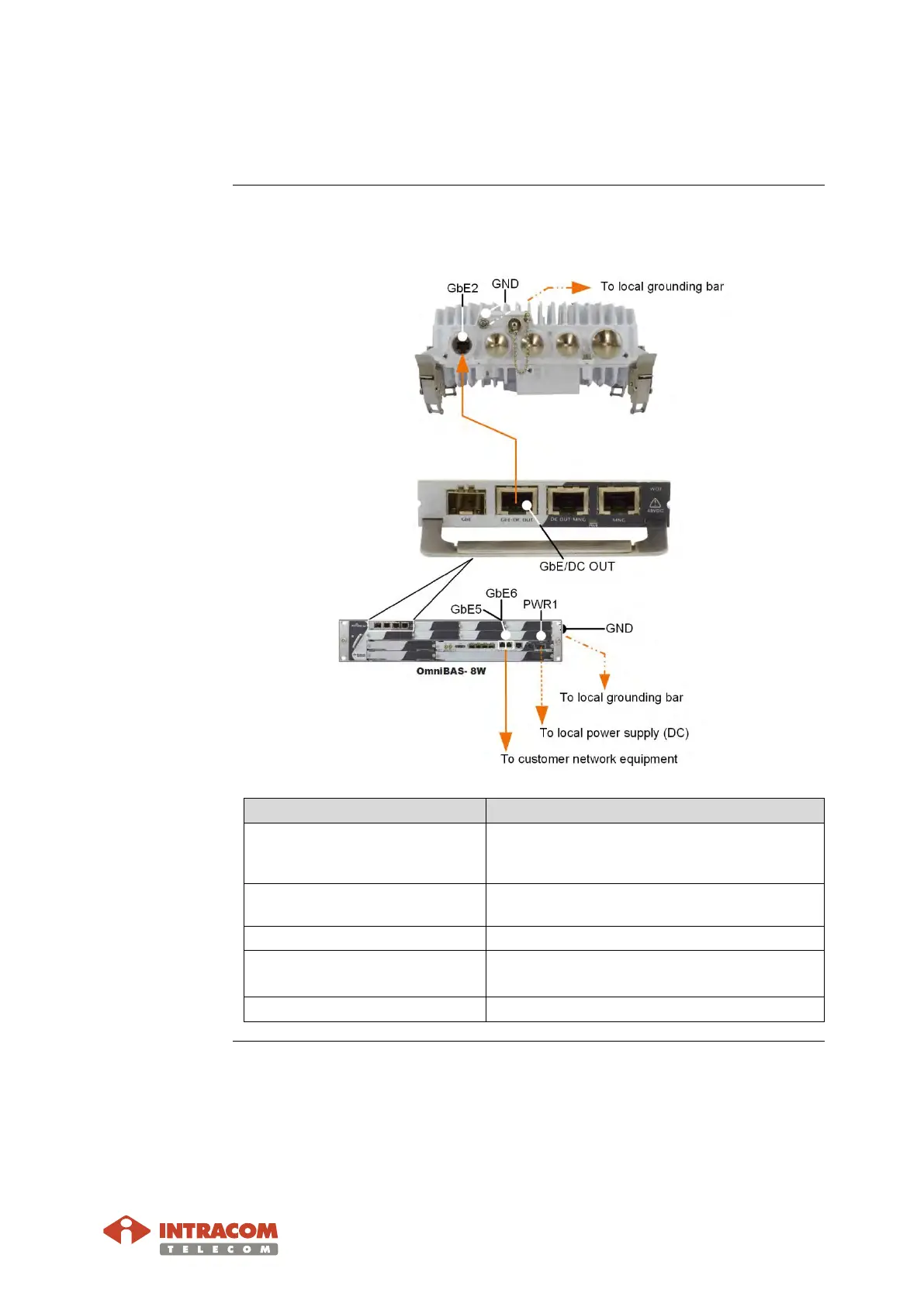

The following schematic shows a cabling overview of OSDR radio unit when
powering is through an indoor OmniBAS
TM
4W/8W:
GbE#2 and GbE/DC OUT Gigabit Ethernet (S-FTP) cable for traffic,
inband management and superimposed DC
power.
GbE#5-6 Gigabit Ethernet (S-FTP) cable for traffic and
inband management.
INPUT DC power supply cable.
GND Grounding cable 16 mm
2
for radio unit and
4 mm
2
for OmniBAS
TM
– 4W/8W.
PWR1 OmniBAS
TM
– 4W/8W DC power supply cable.
Continued on next page
