3. Before Starting the Installation
38
Fiber Optic cable for service Traffic and Inband Management
/ Gigabit Ethernet (S-FTP) cable for service Powering
, Continued
Gigabit
Ethernet (S-
FTP) cable
length
restriction –
when AC POE
is used
The Gigabit Ethernet (S-FTP) cable for service external powering applies to
the following restriction:
The maximum length of Gigabit Ethernet (S-FTP) cable (Cat5E or Cat6),
between OSDR receptacle (GbE2 or FE) and power injector receptacle
(POE or OUT) cannot exceed 200 meters (1 x 200 meter cable).
For complete cabling overview refer to Cabling overview using AC
POE on page 39.
Gigabit
Ethernet (S-
FTP) cable
length
restriction –
when DC PoNE
is used
The Gigabit Ethernet (S-FTP) cable for service external powering applies to
the following restriction:
The maximum length of Gigabit Ethernet (S-FTP) cable (Cat5E or Cat6),
between OSDR receptacle (GbE2 or FE) and power injector receptacle
(Gbe OUT/NMS OUT for PONE-OD-DC or DC OUT/MNG – GbE/DC OUT
for OmniBAS
TM
-8W or GbE1/GbE2 for OmniBAS
TM
-4P) cannot exceed 200
meters (requires 2 x 200 meter cables in parallel).

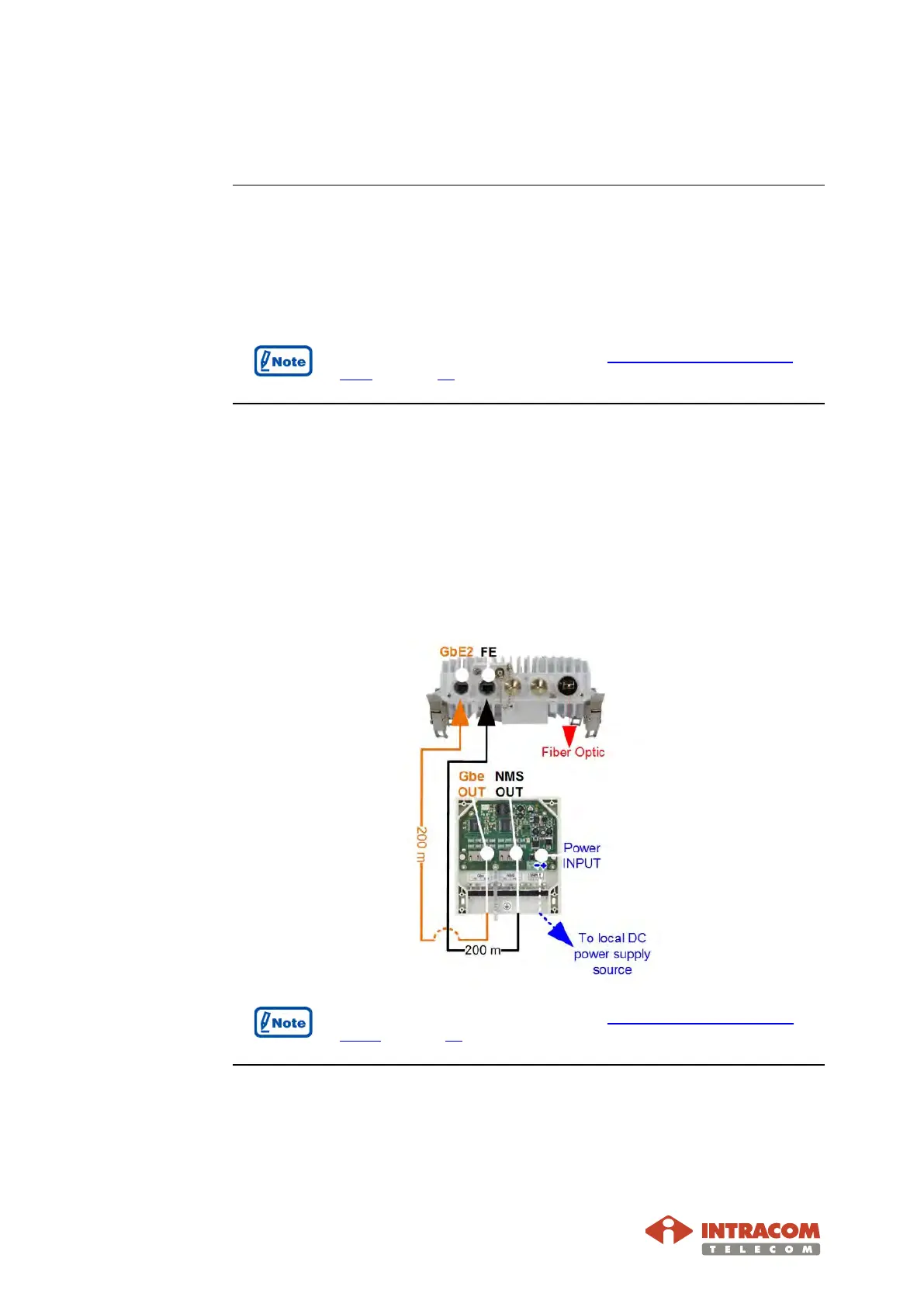

See below an example using PONE-OD-DC
For complete cabling overview refer to Cabling overview using DC
PoNE on page 42.
