4. Installation Procedures
66
Panel Antenna, Continued
Mounting kit
installation
procedure

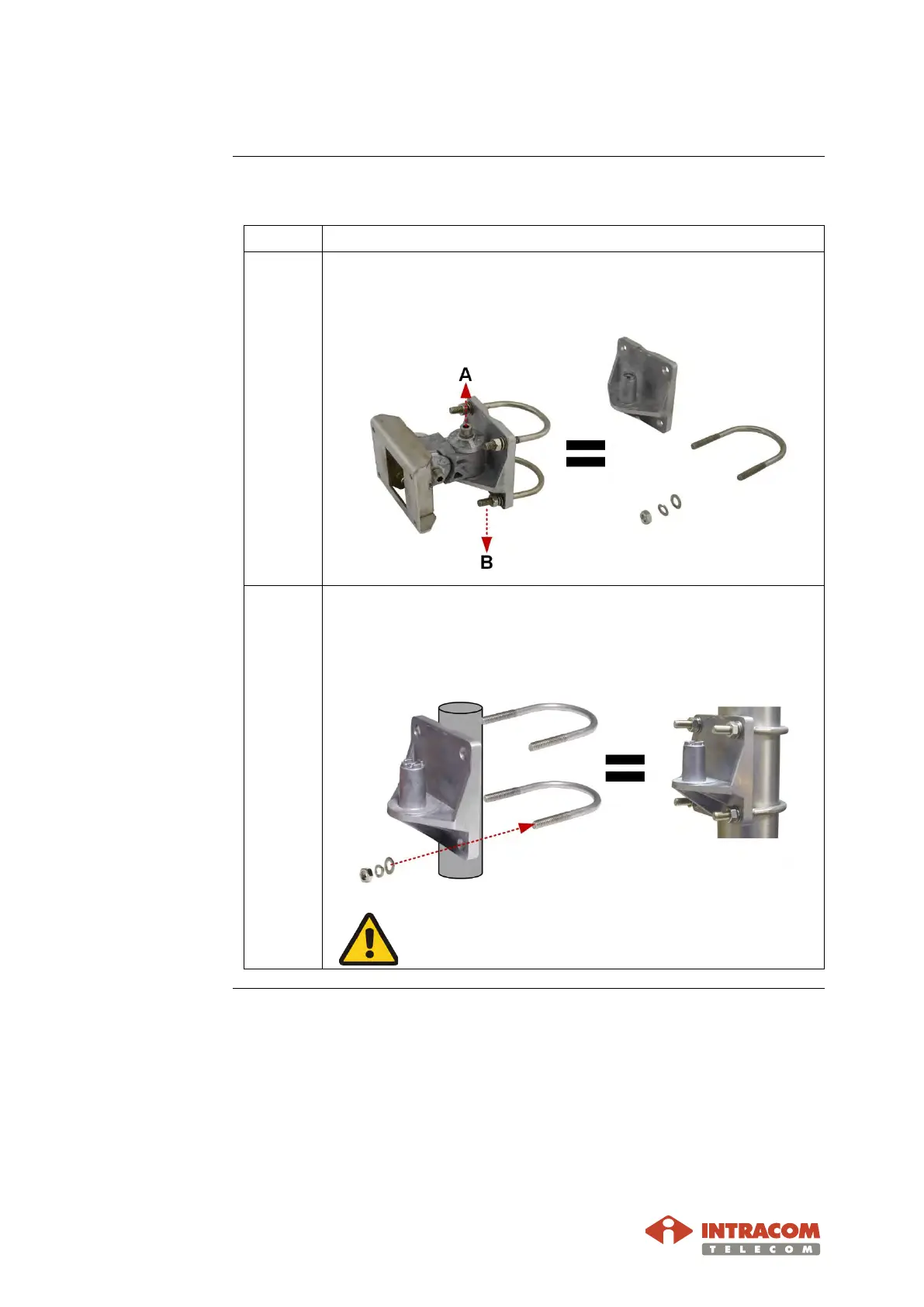

To install the mounting kit, proceed as follows:
Step Action
1 Perform the following actions:
A: Unscrew the azimuth adjuster screw.
B: Release the u-bolts.
2
Place the arm bracket to the pole and install the two U-bolts, as
shown below.
Use the U-wrench to tighten (washer, lock washer and nut).
Do not over tighten. Adjust the tool for max tightening
torque 15 Nm.
Continued on next page
