Invacare CS3 - 6.3 Mattress Keeper Rod Installation

6 SET-UP
Part No 1153410
33 Invacare ®CS Series Beds
All Models Except CS9FX600 All Models Except CS9FX600 All Models Except CS9FX600
Model CS9FX600 Model CS9FX600 Model CS9FX600

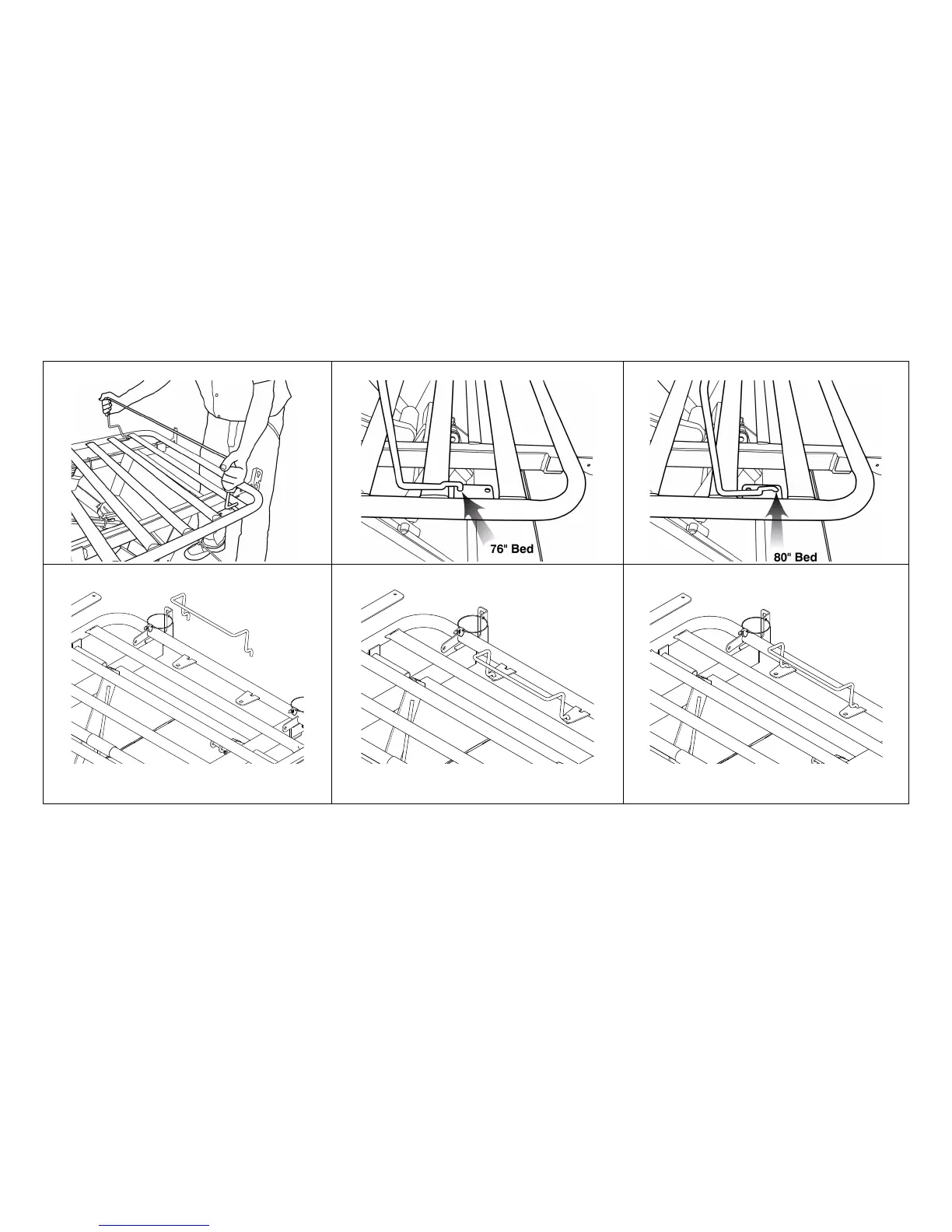

1. With the mattress keeper upright, insert the
rod ends into the appropriate deck holes.
2. There are two choices for mattress keeper rod
insertion. (76 in bed option shown above)
3. Mattress keeper rod insertion on 80 in Bed.
