7 USAGE
Part No 1153410
43
Invacare ®CS
Series Beds
7.5

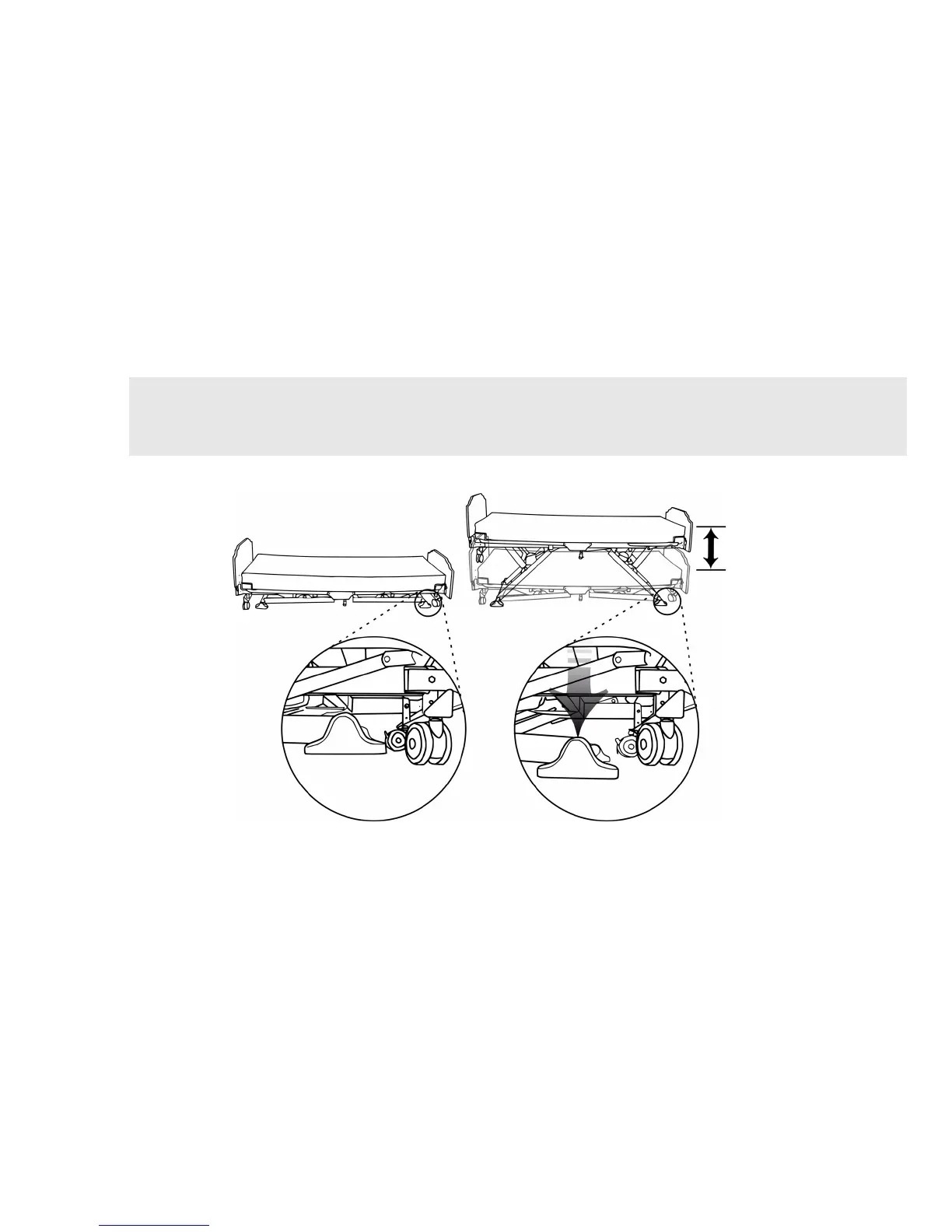

Foot Pad Lock Mechanism on CS3 Bed
FIGURE
3
Foot Pad Loc
k Mechanism on CS3 Bed
CAUTION
Moving the bed while the floor lock, caster lock
, or foot pad is engaged may DAMAGE the be
d.
DO NOT move the bed unless the fl
oor lock, caster lock, or foot
pad is disengaged (unloc
ked).
Stability Range
Mobility
Bed at the Lowest Position
42
44
Table of Contents
Default Chapter
1
User Manual
1
Table of Contents
3
1 General
5
Symbols
5
Limited Warranty
7
2 Safety
8
General Guidelines
8
Operation Information
9
EMI Information
14
3 Emc Information
16
Electromagnetic Compatibility (EMC) Information
16
4 Product Labeling
21
5 Technical Data
23
Typical Product Parameters
23
Mattress Specifications
28
6 Set-Up
29
Unpacking Instructions
29
Assembly Instructions
32
7 Usage
37
Hand Control - Pendant Operation
37
Pendant Storage and Location
39
Power Cord Storage
41
Raise and Lower the Heel Lift Ratchet
42
Foot Pad Lock Mechanism on CS3 Bed
43
Bed Steer Mechanism
44
8 Options
45
Safety Information for Options
45
Bed Rails and Positioning Devices
48
Other Accessories
48
Optional Drainage Bag Holder
49
Optional Touch-Up Paint
49
Optional Attendant Control Panel Operation
50
Optional Trendelenburg and Reverse Trendelenburg Attendant Control Panel
53
Pendant HI/LO Lock out - Optional
54
Optional Cardiopulmonary Resuscitation (CPR) Release
55
Optional 39 Inch and 42 Inch Wide Decks
57
Adjustable Width Bed Model CS9FX600
58
9 Maintenance
63
Cleaning Instructions
63
Annual Maintenance Check
64
Quarterly Maintenance Check
64
Environmental Conditions for Storage and Transport
64
Environmental Conditions for Operation
64
10 Troubleshooting
65
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Invacare CS3 and is the answer not in the manual?
Ask a question
Invacare CS3 Specifications
