Invacare CS3 - Pendant HI;LO Lock out - Optional

8 OPTIONS
Invacare ®CS Series Beds
54 Part No 1153410
8.8 Pendant HI/LO Lock Out - Optional

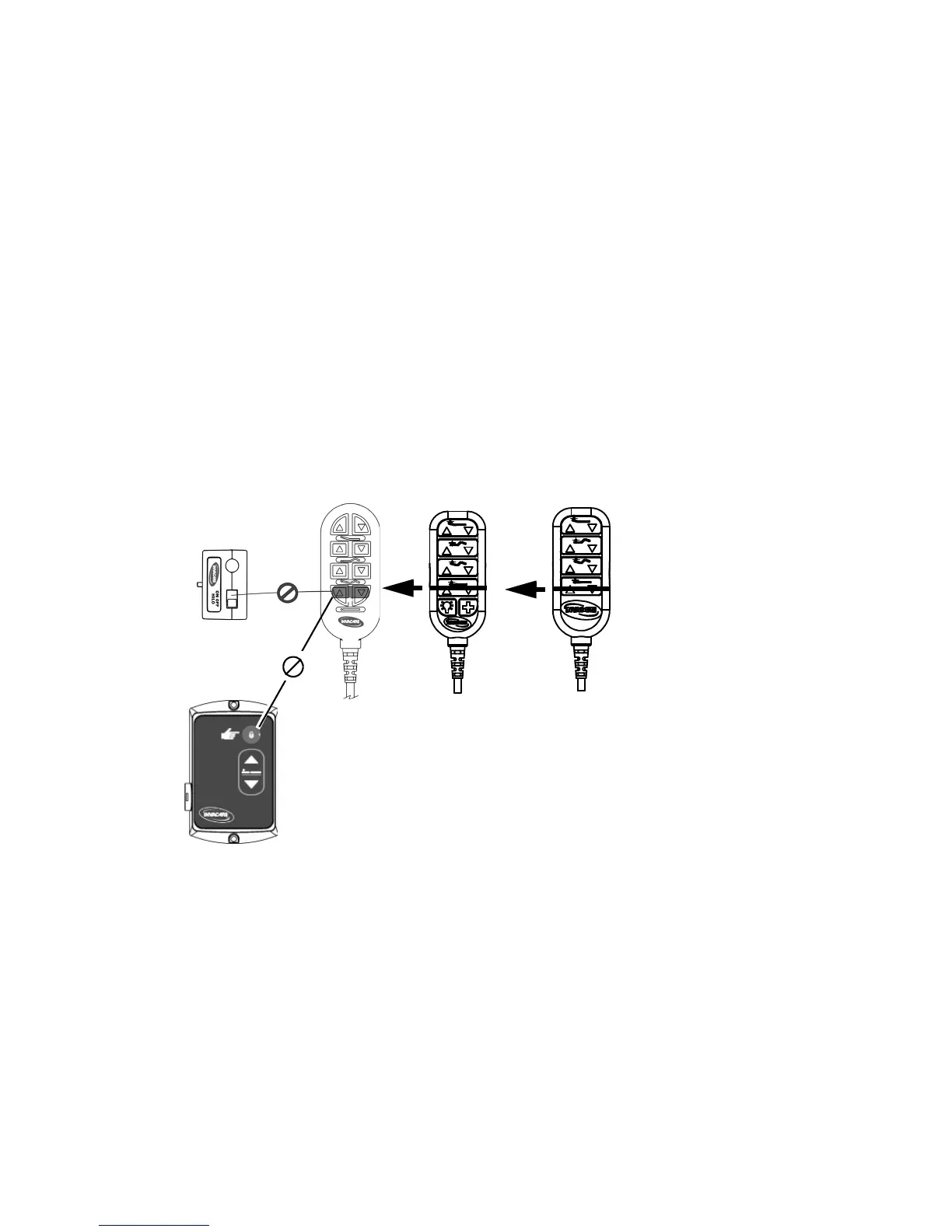

FIGURE4 Pendant HI/LO Lock Out - Optional

When in the “OFF” position, the HI/LO function on the pendant will NOT operate. When in the “ON” position, all
pendant functions will operate normally. The head function and knee-foot function on the pendant remains operational
whether the lock out is activated or deactivated.
Attendant Control Lockout
(at foot end of the bed)
HI/LO
Lockout
