7 USAGE
Invacare ®CS Series Beds
42 Part No 1153410

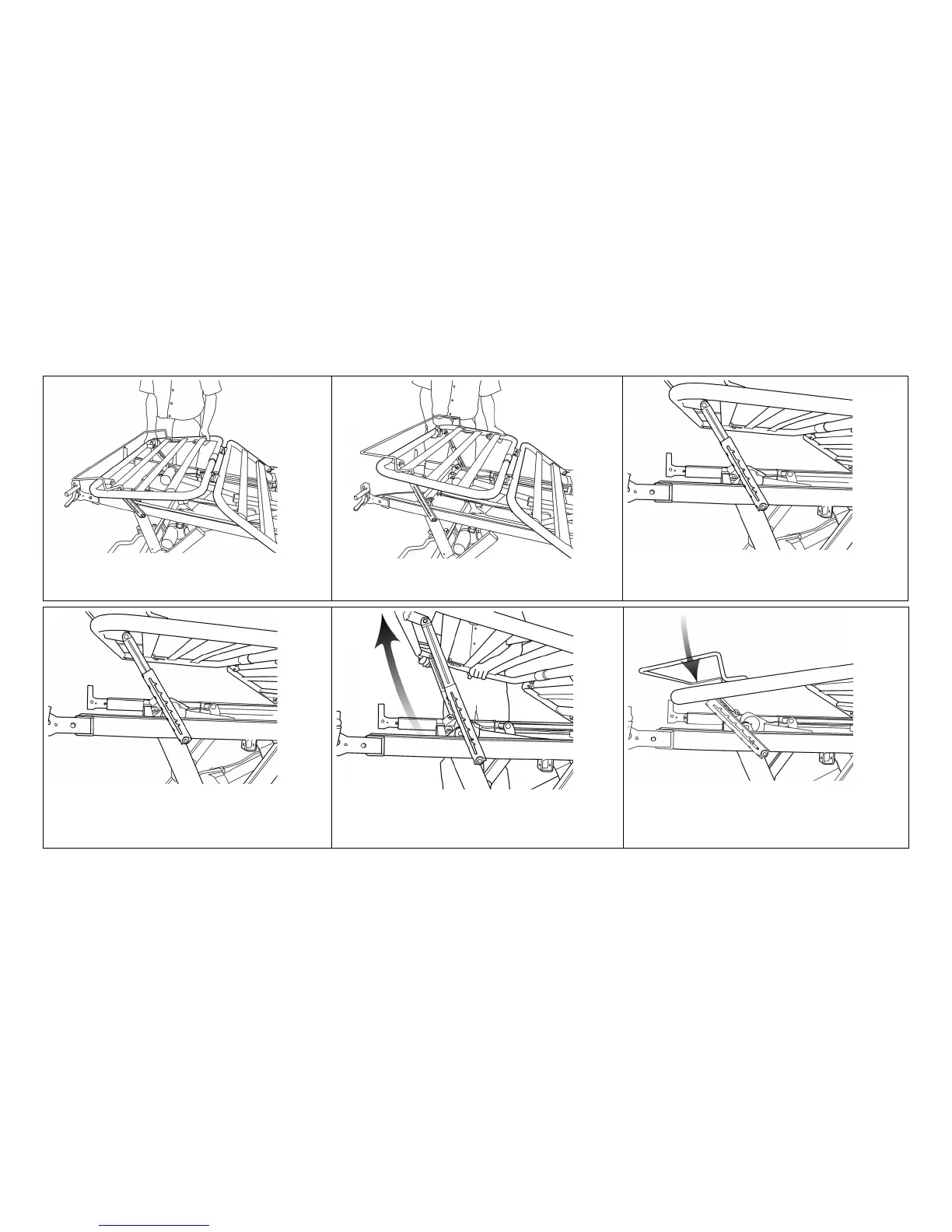

7.4 Raise and Lower the Heel Lift Ratchet
1. With knee-foot platform adjusted to the
highest position, lift the foot panel.
2. The foot section can rest at any of the six
pre-set stops.
3. Slowly lower the platform to engage the
nearest stop.
4. The platform cannot lower past the nearest
stop while being adjusted.
5. To reset the ratchet mechanism, raise the
platform to the highest level then lower the
platform in one motion.
6. At the lowest position the deck can once
again be raised to the desired stop.
