7 USAGE
Invacare ®CS Series Beds
40 Part No 1153410

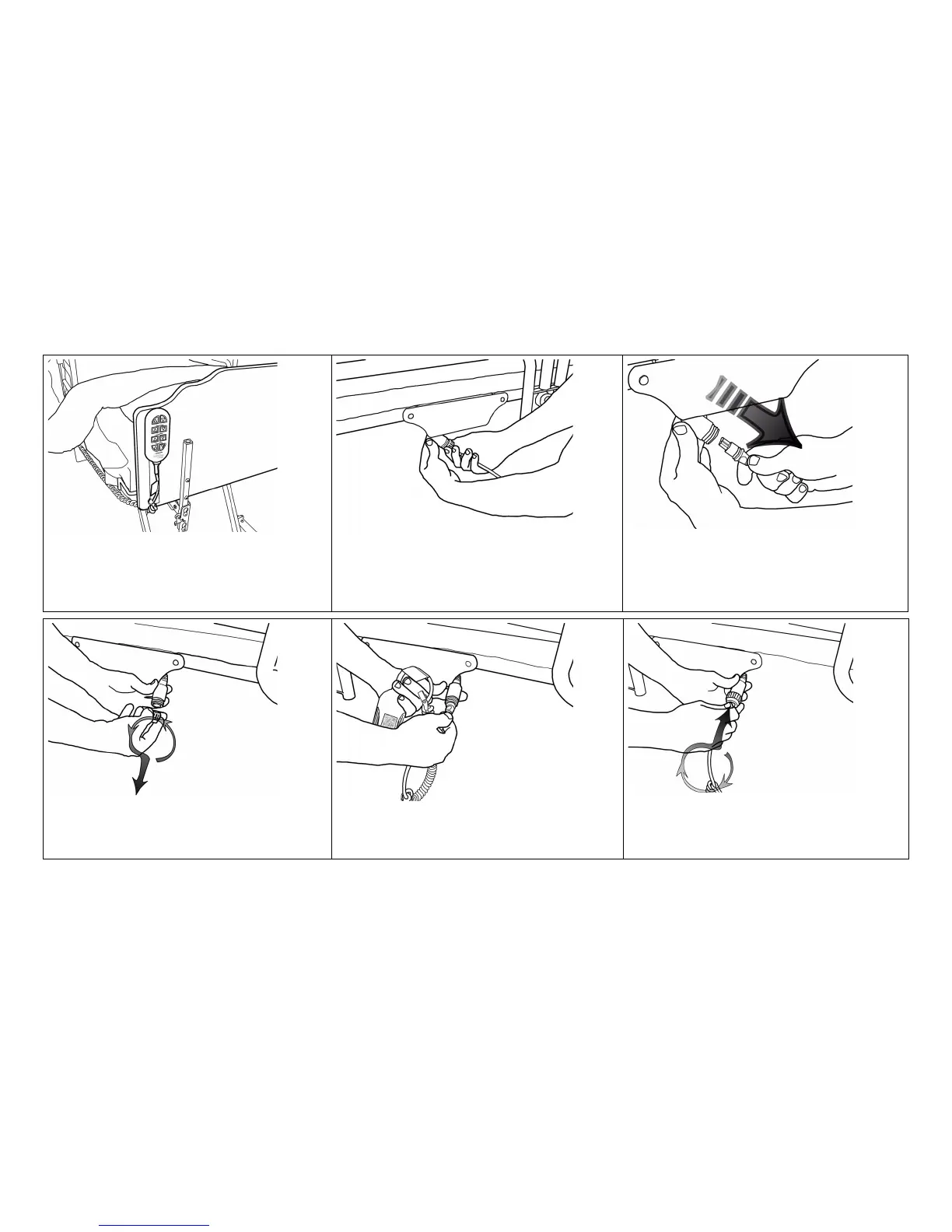

4. The pendant can also be attached to the
back of either side of the Head end.
5. To move the pendant to the other side of
the bed, disconnect the main power then
unscrew the coupling cap on the pendant
cable.
6. Remove the cable end from the Y cable
housing.
7. On the other side of the bed, remove the
cap from the Y cable housing. Replace the
cap on the other side of the bed.
8. Align arrows then insert the pendant cable
end into the Y cable housing.
9. Screw the coupling cap to the threaded Y
cable housing end.
