Adjusting the Head Board Width for CS9FX600
Bed end model IHBEADJ is intended for use on bed model CS9FX600. The head board is adjustable and ships in the position for a 36 in wide bed.
1. Firmly grasp one of the board wings.
2. While holding the board wing, remove the knobs securing that wings to the center section.
3. Move the board wing until the mounting holes line up with the desired adjustment holes in the center section.
4. Install the knobs to secure the board wing in the desired position. Tighten securely
5. Repeat STEPS 1-4 for the remaining board wing.

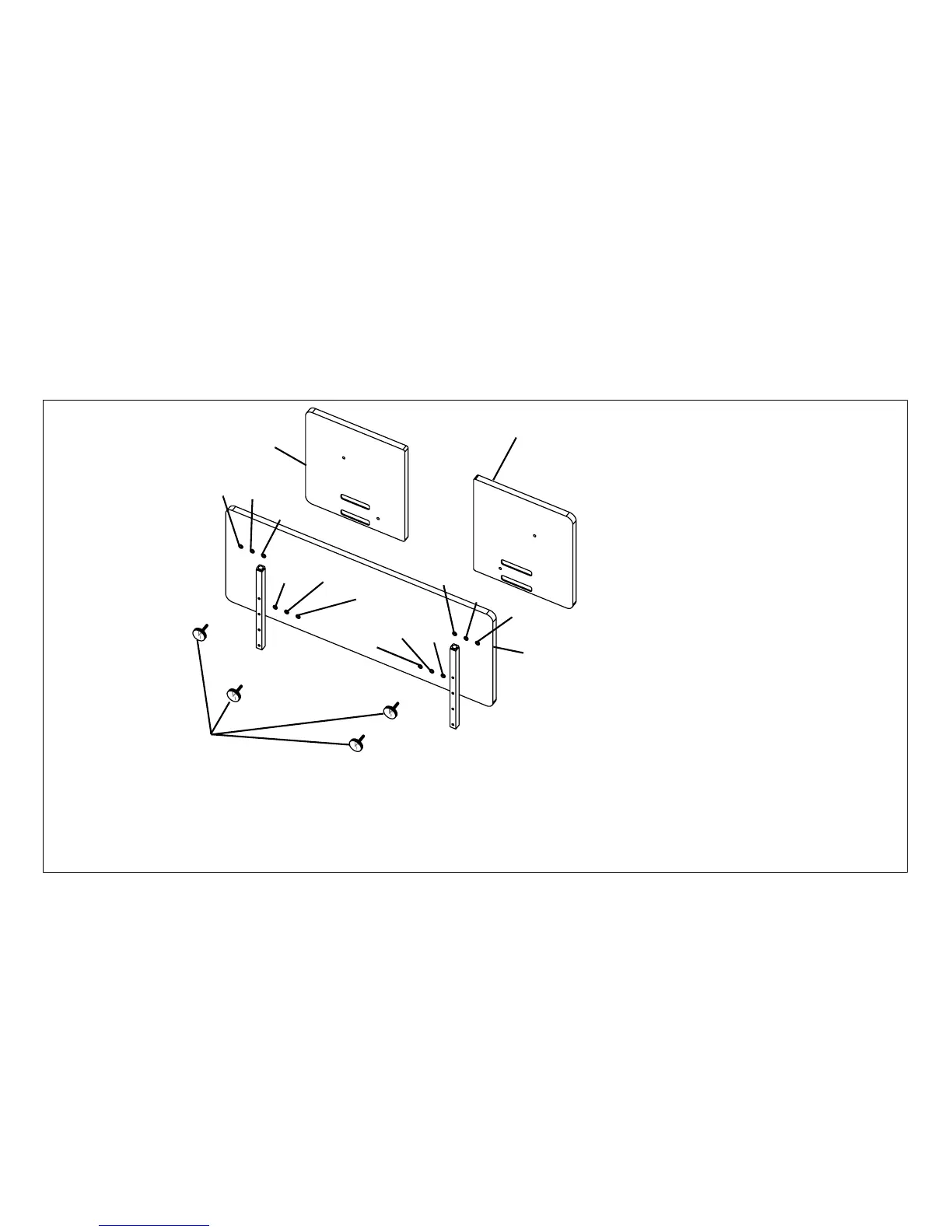

Right Board
Wing
Left Board
Wing
Knobs
Center
Section
42 in
39 in
36 in
42 in
39 in
36 in
42 in
39 in
36 in
36 in
39 in
42 in
