Invacare Solara 3G - Adjusting the Quick-Release Axle

6 ADJUSTMENT
Part No 1154295 71 Invacare® Solara®3G/Spree 3G Wheelchair
6.4 Adjusting The Quick-Release Axle
1. Remove rear wheel and quick-release axle from the wheelchair.
Refer to Installing/Removing Rear Wheels - Quick-Release
on
page 56.
2. Depress detent pin in the quick-release axle and slide axle through
the wheel hub.
3. Increase or decrease end play in the quick release axle by adjusting
the locknut on the end of the quick-release axle.
4. Reinstall rear wheel onto the wheelchair. Refer to Installing/
Removing Rear Wheels - Quick-Release on page 56.
5. Release detent pin ensuring that the locking pins are fully released.
6. Repeat STEPS 3-5 until the quick-release axle locks properly.
7. Repeat STEPS 1-6 for opposite side, if necessary.

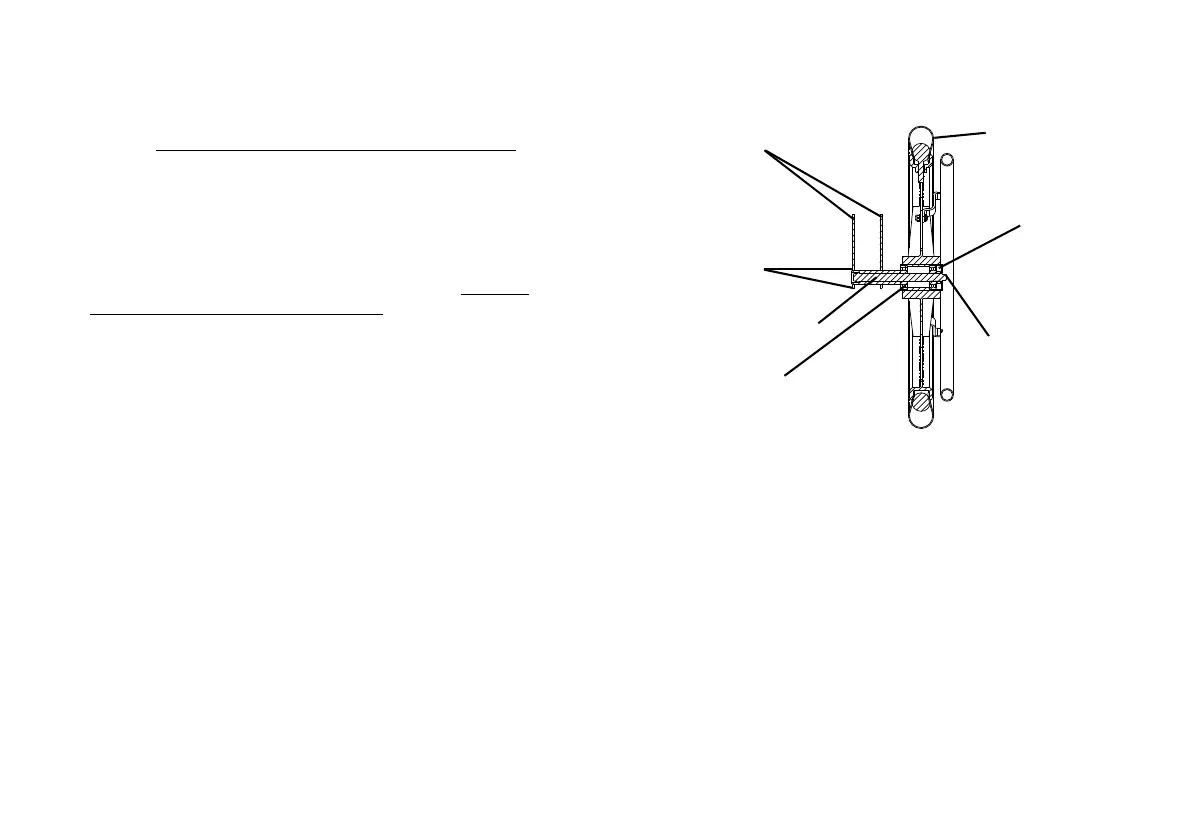

FIGURE4 Adjusting The Quick-Release Axle
Quick-Release Axle
Detent Pin
Locking Pins
Locknut
Rear Wheel
(Reference)
Axle Mounting
Plate
Wheel Hub
(Reference)
