11.2 Adjusting the T-Arm
Adjusting T-Arm Height
1. Unlock the T-Arm by flipping the T-Arm release lever towards the
inside of the wheelchair..
2. Slide the T-Arm to one of:
• Low Height T-Arms - Nine positions.
• High Height T-Arms - Seven positions.
3. If the inside T-Arm post does not slide up and down in the outside
T-Arm post as desired, perform one of the following:
• Tighten - Tightening the set screws on the outside T-Arm post
will make it more difficult to move the inside T-Arm post up
and down.
• Loosen - Loosening the set screws on the outside T-Arm post
will make it easier to move the inside T-Arm post up and
down.
4. Lock the T-Arm by flipping the T-Arm release lever towards the
front of the wheelchair.

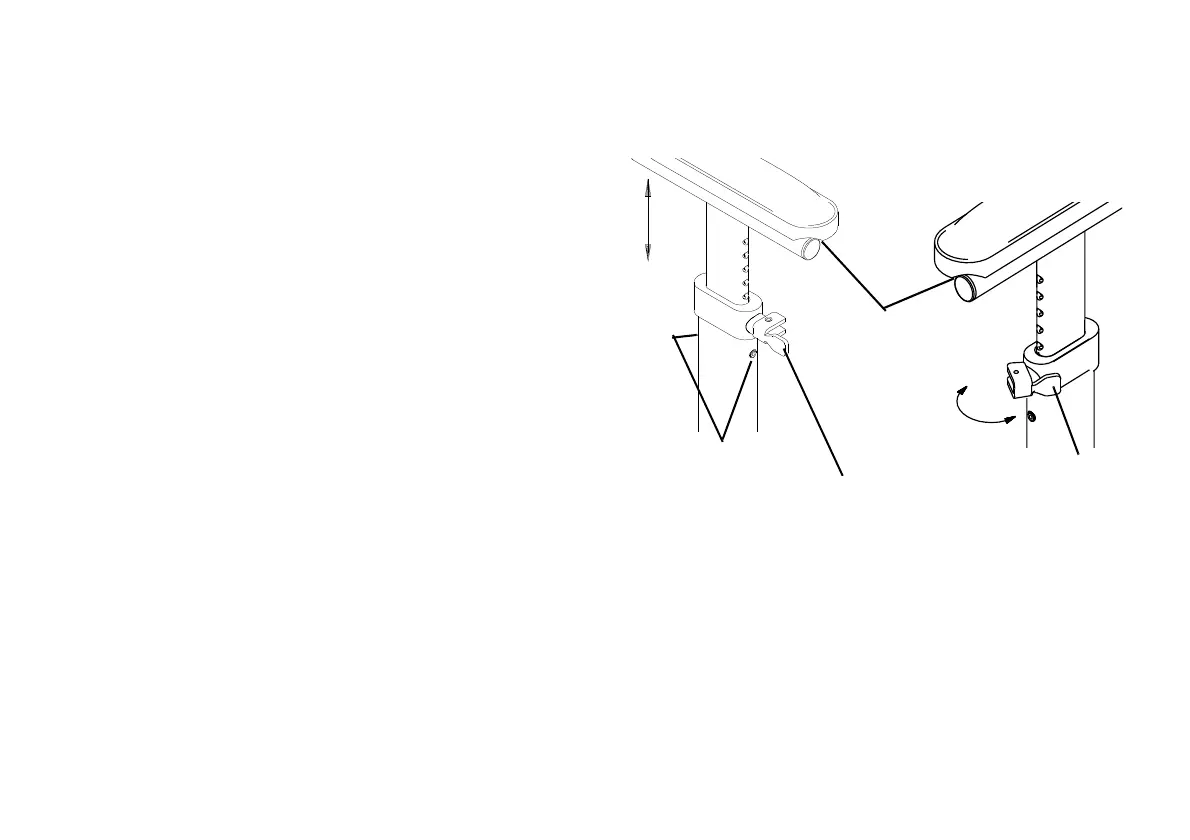

FIGURE2 Adjusting T-Arm Height

If necessary, pull the T-Arm release lever out and
rotate 180° so it can be flipped towards the
outside of the wheelchair.
Set Screws
T-Arm Release Lever -
UNLOCKED Position
T-Arm Release Lever
- LOCKED Position
T-Arm
