11 ARMS
Invacare® Solara®3G/Spree 3G Wheelchair 92 Part No 1154295
Adjusting T-Arm Width
1. Remove the two mounting screws that secure the arm pad to the
arm tube.
2. Turn the arm pad around and reposition the arm pad on the arm
tube.
3. Re-secure the arm pad to the arm tube with the two mounting
screws. Tighten securely.
4. Repeat for the opposite side, if necessary.

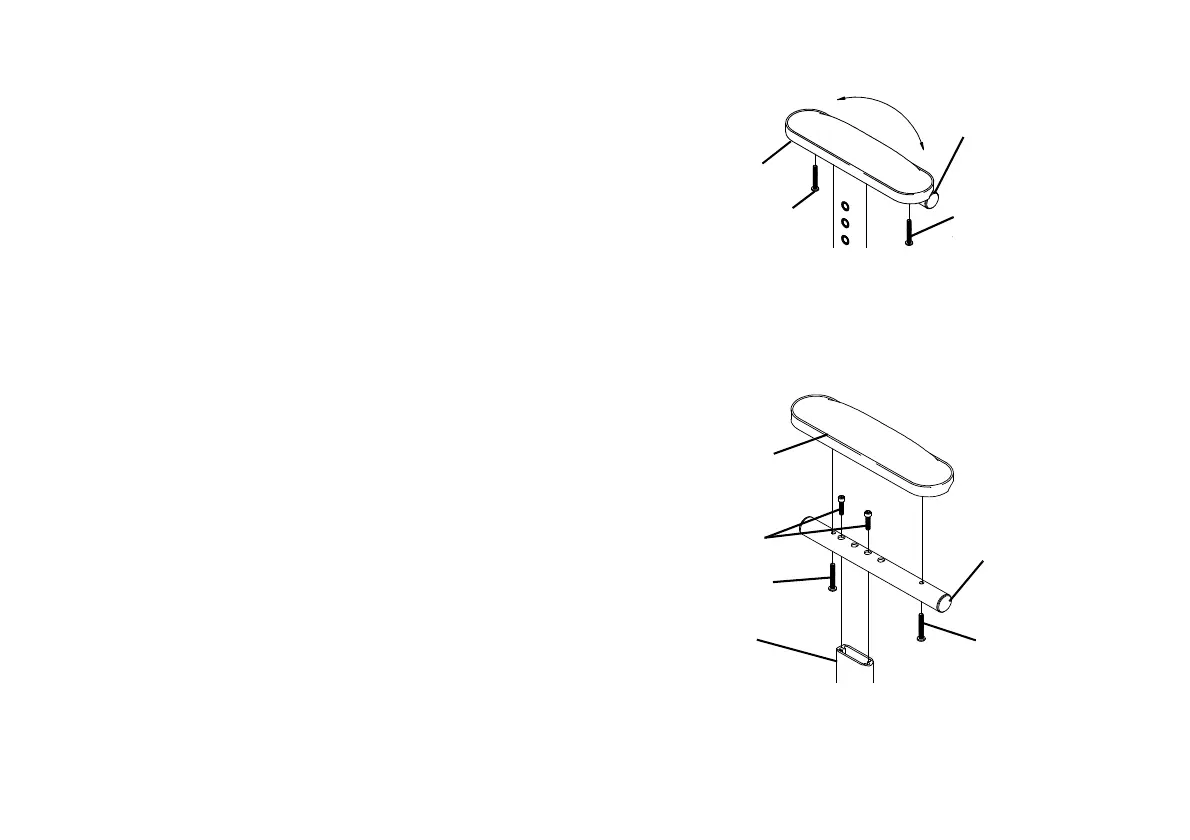

FIGURE3 Adjusting T-Arm Width
Adjusting T-Arm Depth
1. Remove the two mounting screws that secure the arm pad to the arm tube.
2. Remove the two socket screws that secure the arm tube to the T-Arm post.
3. Reposition the arm tube on the T-Arm post:
A. Desk Length Arms - to one of three positions depending on
the desired arm pad depth.
B. Full Length Arms - to one of five positions depending on the
desired arm pad depth..
4. Re-secure the arm tube to the T-Arm post with the two socket
screws. Securely tighten.
5. Reattach the arm pad to the arm tube with the two mounting
screws. Tighten securely.
6. Repeat for the opposite side, if necessary.
FIGURE4 Adjusting T-Arm Depth
Mounting Screw
Arm Tube
Mounting Screw
Arm Pad

Two additional positions are obtainable by turning
the arm tube 180°.
Socket Screws
Arm Pad
Mounting Screw
T-Arm Post
Arm Tube
Mounting Screw
